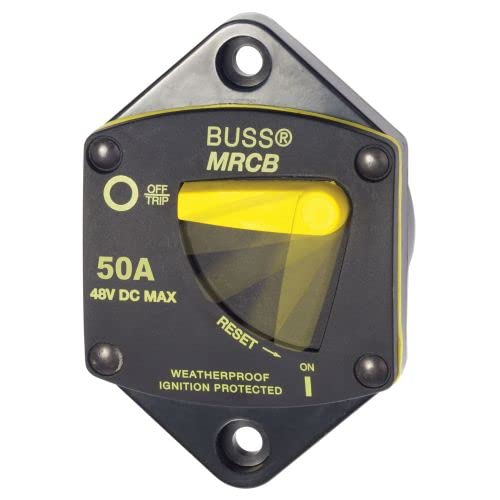

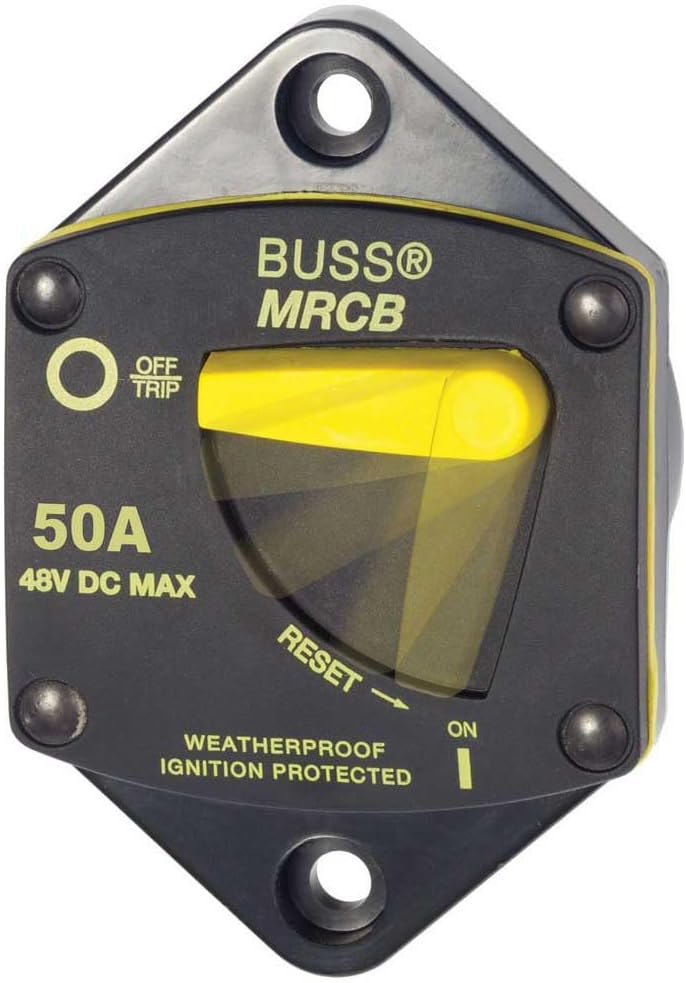

Blue Sea Systems 7039BSS 187-Series Thermal Circuit Breaker - Panel Mount, 50 Amp

The Blue Sea Systems 7039BSS is a heavy-duty thermal circuit breaker from the 187-Series line, designed to provide reliable DC circuit protection and switching functionality in a single waterproof device. Rated for 50 amps, this panel-mount breaker is engineered for marine, RV, and specialty vehicle electrical systems operating up to 48V DC.

Key Features:

• Trip-free thermal protection prevents the breaker from being held "ON" during fault conditions
• Waterproof and vaporproof design (IP66 rated) withstands heavy seas and power jetting
• Clear single-lever operation with vertical/horizontal orientation indicates trip status
• Recessed mounting holes and self-trimming case for clean, professional installation
• Robust 5/16" (M8) terminal studs accept heavy gauge wire lugs with high torque connections
• Round rear casing permits easy installation with standard hole saws
• Ignition protected - safe for gasoline-powered boat installations (SAE J1171 compliant)
• High interrupt rating: 5000A at 12V DC, 3000A at 24V DC, 1500A at 42V DC

This circuit breaker combines reliable thermal overcurrent protection with convenient manual switching, making it ideal for protecting high-amperage DC loads in harsh marine and mobile environments. The trip-free mechanism ensures safety even during fault conditions, while the waterproof construction provides long-lasting durability in demanding applications.
