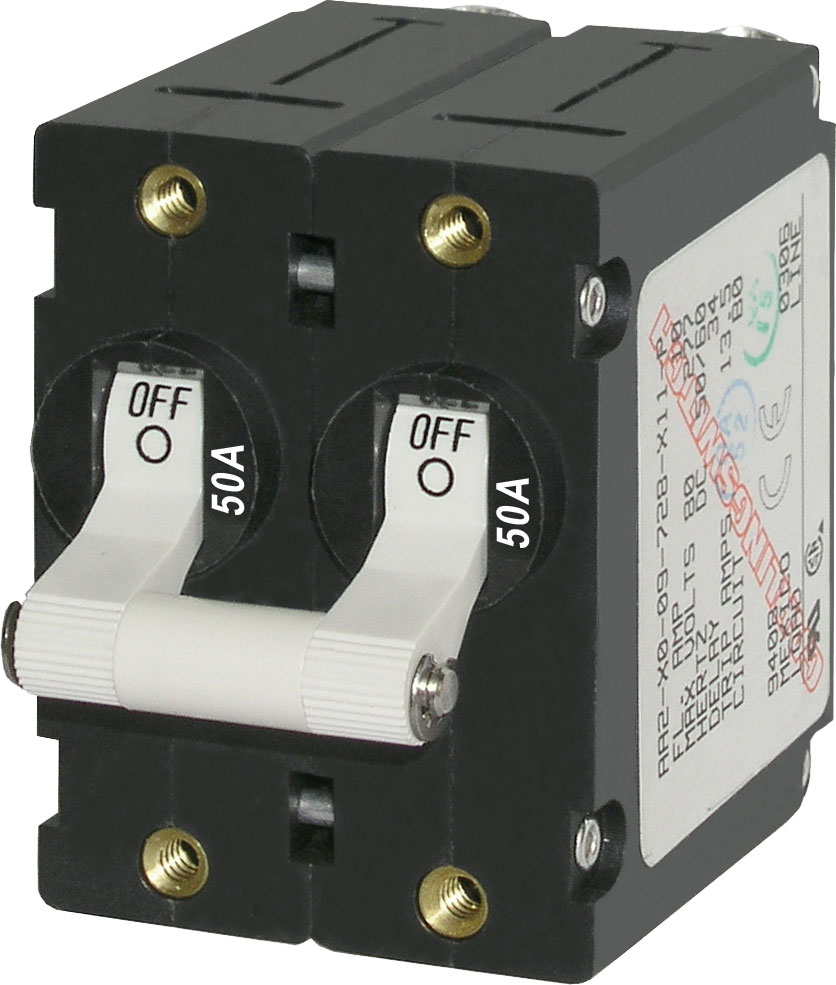

Blue Sea Systems 7242BSS A-Series Toggle Circuit Breaker 50A Double Pole White

The Blue Sea Systems 7242BSS is a 50-amp double pole toggle circuit breaker from the A-Series line, designed for reliable overcurrent protection in marine and mobile DC electrical systems. This white-faced magnetic hydraulic circuit breaker provides trip-free protection and can be panel mounted for convenient circuit control and safety.

Key Features:

• 50 amp rating for DC circuits up to 65 volts or AC circuits up to 120/240 volts
• Double pole configuration interrupts both positive and negative conductors
• Magnetic hydraulic trip mechanism provides accurate, reliable overcurrent protection
• Toggle actuator design allows manual on/off switching and automatic tripping
• White toggle face integrates cleanly with modern panel aesthetics
• Trip-free design prevents hold-on during fault conditions
• #10-32 screw terminals for secure wire connections
• Single unit construction for straightforward installation

Blue Sea Systems A-Series circuit breakers are engineered for harsh marine environments and meet rigorous industry standards. The magnetic hydraulic mechanism provides temperature-compensated performance and won't degrade over time like thermal breakers. Ideal for protecting high-current DC loads such as windlasses, thrusters, inverters, and other demanding electrical equipment aboard boats, RVs, and other mobile applications.
