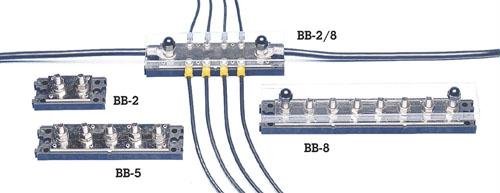

NewMar BB28 Heavy Duty 500 Amp Bus Bar Assembly

The NewMar BB-2/8 Bus Bar is a heavy-duty electrical distribution component designed for marine, RV, and powersports DC electrical systems. Rated for 500 amps, this professional-grade bus bar assembly serves as an ideal DC ground tie point or positive distribution bus for high-current applications.

Key Features:

• Heavy-duty 1/4 inch thick copper bar construction for superior conductivity and heat dissipation
• 500-amp continuous current rating for demanding electrical systems
• Dual 5/16 inch studs plus eight #8 screws provide flexible connection options
• Studs positioned on 1 inch centers for organized wire routing
• Accommodates 5/16 inch ring terminals for large gauge wire connections
• Reinforced nylon resin insulated base prevents electrical shorts
• Clear protective cover shields connections from moisture and debris

Specifications:

• Current Rating: 500 amps
• Copper Bar Thickness: 1/4 inch
• Connection Points: 2 x 5/16 inch studs, 8 x #8 screws
• Stud Spacing: 1 inch centers
• Dimensions: 6-1/16 inches x 1-1/2 inches
• Base Material: Reinforced nylon resin with clear cover

This bus bar assembly is perfect for consolidating ground connections or distributing positive power to multiple circuits in marine vessels, recreational vehicles, and off-road vehicles where reliable high-current distribution is essential.
