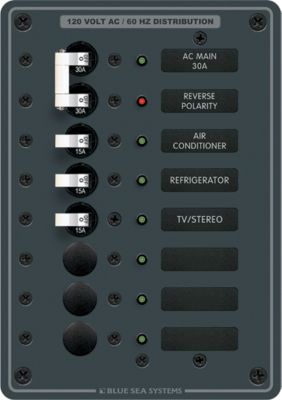

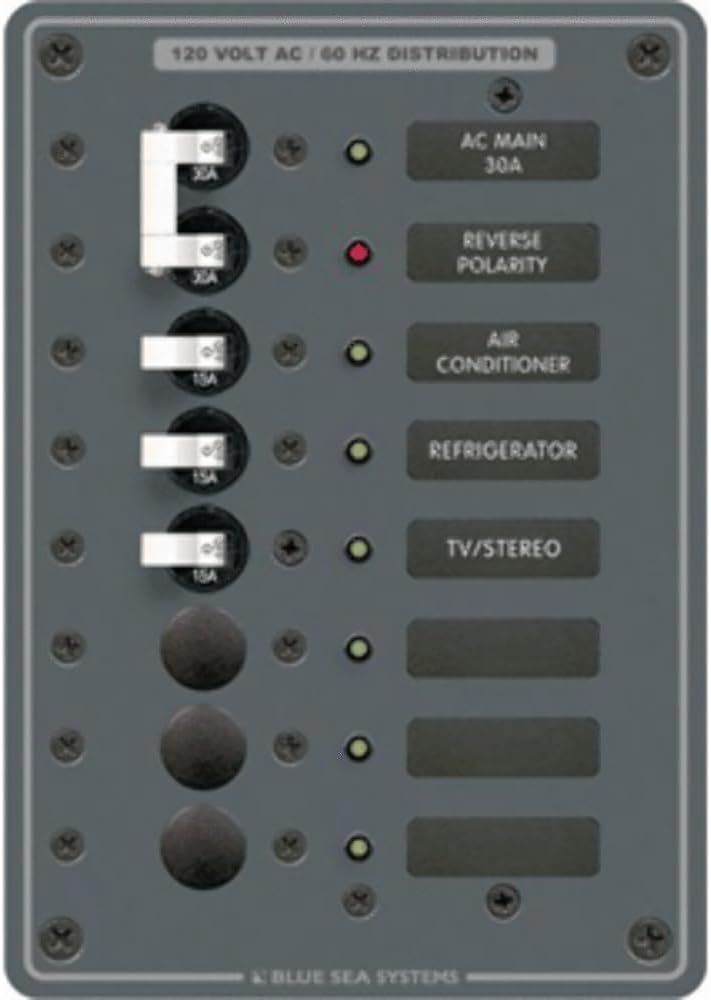

Blue Sea Systems 8027BSS Traditional Metal AC Circuit Breaker Panel - 120V AC Main + 6 Positions

The Blue Sea Systems 8027BSS Traditional Metal Panel provides a complete solution for delivering power from an AC source to 6 branch circuits, making it ideal for marine, RV, and specialty vehicle electrical applications. This panel features a 30 Amp double pole main breaker and three 15 Amp single pole branch circuit breakers, with all marine grade materials, tinned busbars, and anodized finish.

Key Features:

• Fully pre-wired with all hot, neutral and safety ground buses installed
• Backlit circuit label positions for easy identification in low-light conditions
• Red reverse polarity and "ON" indicating LEDs for at-a-glance status monitoring
• Includes 3 circuits with breakers and 3 blank positions for additional circuit breakers
• White toggle switch style circuit breakers
• Maximum panel amperage: 50 Amperes

Technical Specifications:

• Nominal Voltage: 120V AC
• Main Breaker: 1 x 30A Double Pole
• Branch Breakers: 3 x 15A Single Pole (pre-installed)
• Open Positions: 3 (for future expansion)
• Dimensions: 7.5" H x 5.25" W
• Panel Depth: 2.50"
• Weight: 1.87 lbs

This traditional flat metal panel arrives ready to install with detailed instructions and a cutout template included. The A-Series circuit breakers provide reliable overcurrent protection, while the built-in LED indicators and backlit labels make operation and troubleshooting simple. Perfect for upgrading or replacing existing AC distribution systems in boats, RVs, and other mobile applications.
