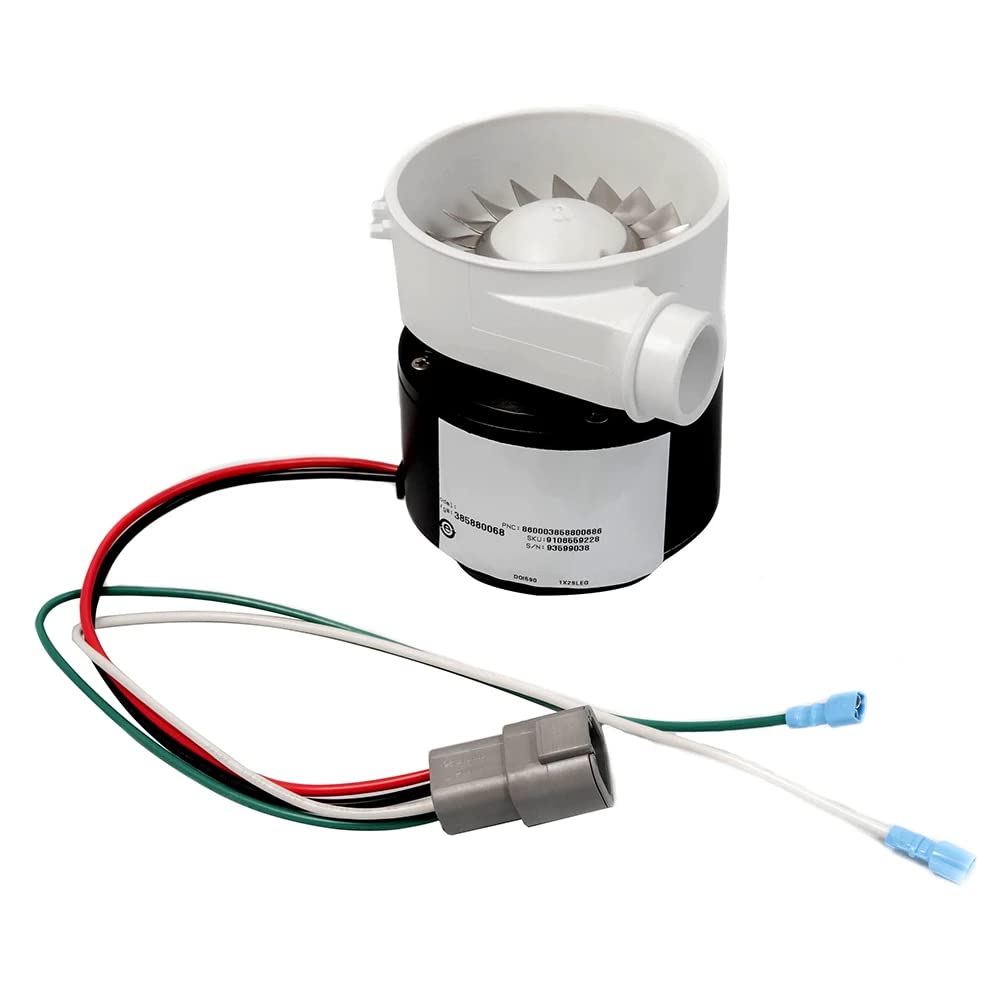

Dometic 385880068 MasterFlush 12V DC Macerator Motor Assembly Kit

The Dometic 385880068 is a complete 12V DC macerator motor assembly kit designed as a genuine replacement part for Dometic MasterFlush marine and RV toilet systems. This assembly delivers reliable flushing performance and includes everything needed for replacement installation.

Compatible Models:

• MasterFlush 8100 Series
• MasterFlush 8120, 8140, 8140RV
• MasterFlush 8500 Series
• MasterFlush 8600 Series (including 8649)
• MasterFlush 8700 Series
• MasterFlush 8900 Series (including 8920, 8921, 8940, 8940RV)

Specifications:

• Motor Dimensions: Approximately 4" diameter x 3-1/4" tall
• Complete Assembly Height: 5-1/4"
• Pump Head: 4" OD with 1-1/4" OD x 1" ID port
• Wiring Harness Length: 11"
• Voltage: 13.5V DC
• Current Draw: 21 Amps
• Duty Rating: Intermittent duty motor

Important Installation Note: This motor is controlled by a vacuum switch and will start automatically. Always disconnect power before servicing or installing this assembly.

This genuine Dometic replacement part ensures proper fit and optimal performance for your MasterFlush sanitation system. The complete assembly includes all necessary hardware for installation.
