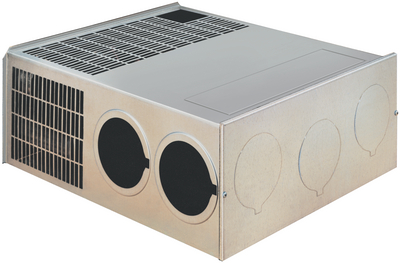

Suburban Mfg 2587A SF-35VHFQ RV Furnace 35,000 BTU Low-Profile Ducted LP Gas

The Suburban SF-35VHFQ is a high-efficiency, low-profile ducted furnace engineered specifically for RV applications. At only 7-1/2 inches tall, this compact unit delivers powerful 35,000 BTU heating capacity while fitting easily into limited spaces that might otherwise remain unused.

Key Features:

• Up to 24% additional airflow over previous SF models for superior heat distribution
• Quiet, multi-ported stainless steel burners for reliable, efficient combustion
• Automatic direct spark ignition eliminates the need for a pilot light
• Sealed forced-draft combustion system for improved safety and efficiency
• No exterior access door required - interior service access simplifies installation
• Nine duct connection choices (top, front, side, and bottom) for maximum installation flexibility
• Low 8.0 amp draw reduces battery consumption
• Can be installed as close as 9 inches from the wall with minimal exterior vent terminal

Specifications:

• BTU Input: 35,000 BTU/h
• Fuel Type: LP Gas
• Two-stage operation
• Side ducted configuration
• Voltage: 12 VDC
• Amp Draw: 8.0 (low stage), 8.5 (high stage)
• Ignition: Direct Spark Ignition
• Dimensions: 7.5" H x 17" W x 20" D
• Weight: 32 lbs

This model replaces all SF/SFV furnaces in the 35,000 BTU and 40,000 BTU range, making it an ideal upgrade or replacement option. The SF-35VHFQ can be installed in both vertical and horizontal orientations, providing versatile heating solutions for mid-size to large RVs, travel trailers, and truck campers. Wall thermostat required for operation (sold separately).
