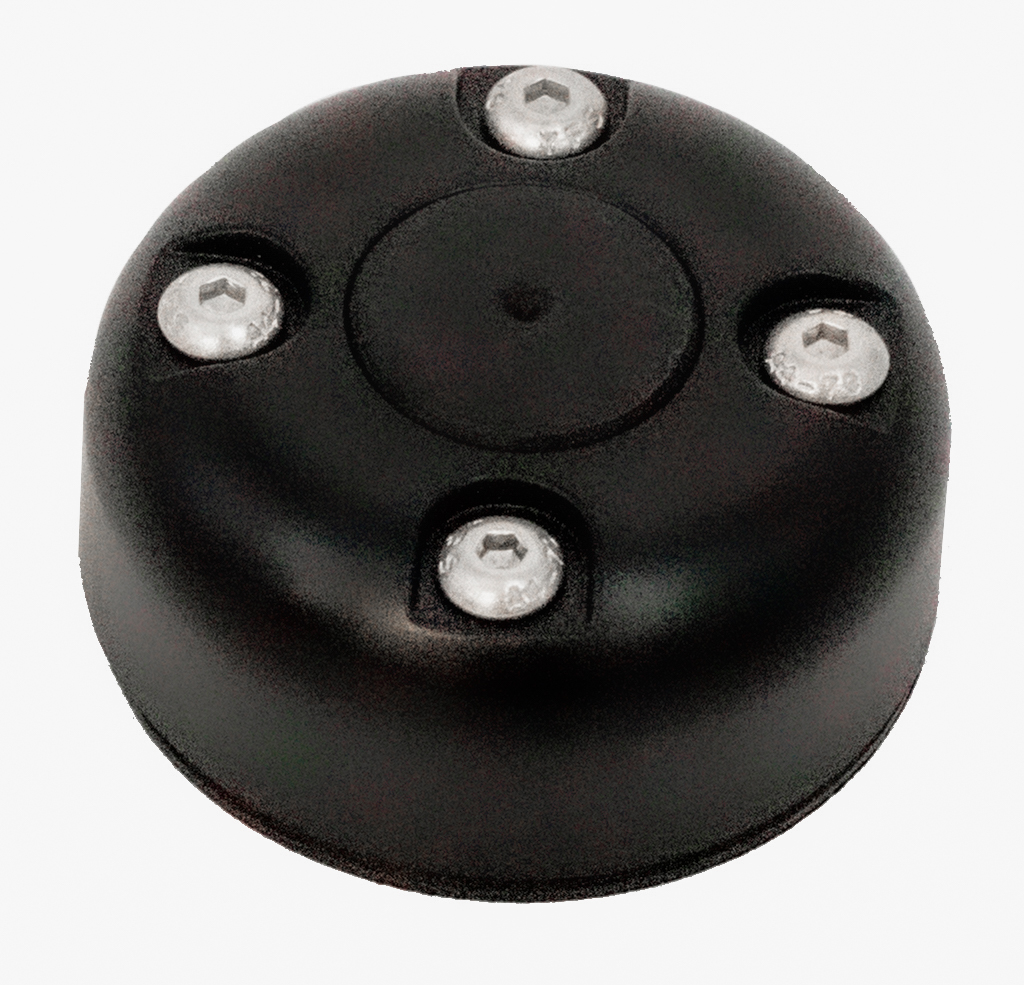

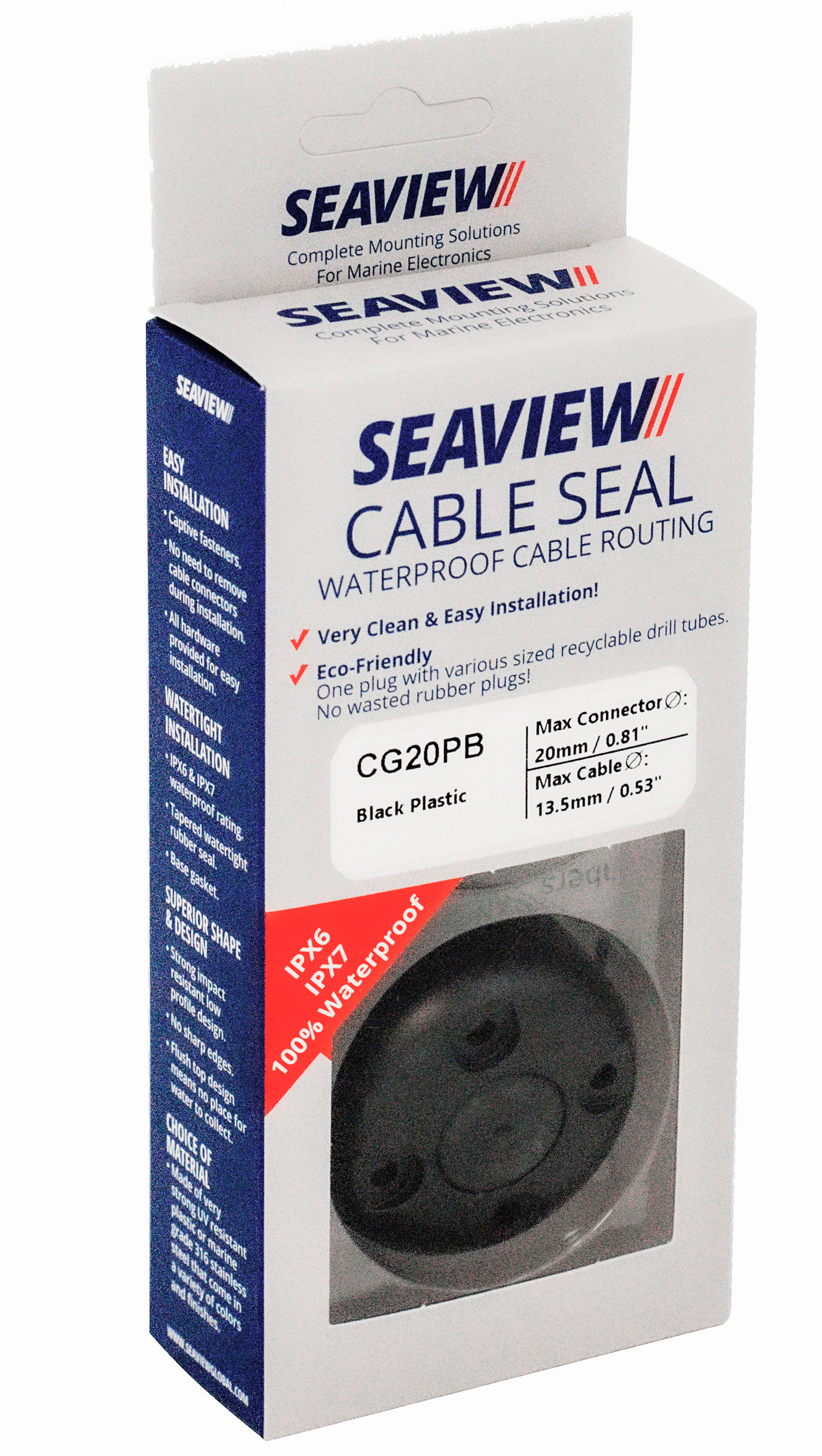

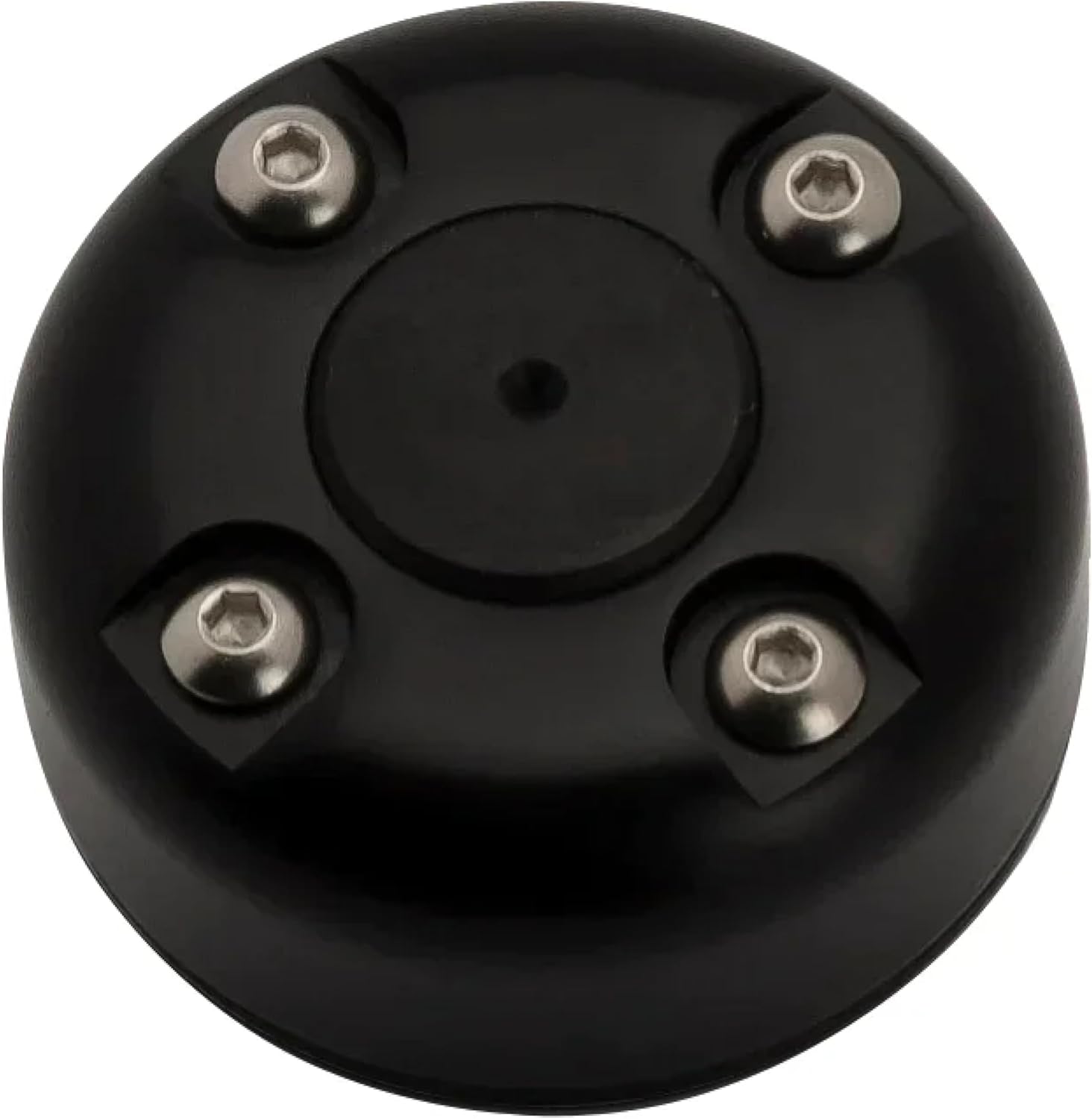

Seaview CG20PB Black Plastic Vertical Cable Seal for Wire up to 13.5mm

The Seaview CG20PB is a black plastic vertical cable seal designed to provide waterproof cable routing for marine electronics and other outdoor applications. Also known as a cable gland or deck seal, this entry fitting accommodates wires up to 13.5mm (0.53") in diameter and delivers reliable protection against water intrusion with IPX6 and IPX7 waterproof ratings.

Key Features:

• Split Seal Design: No need to remove cable connectors during installation—the split design allows you to install the seal around existing terminated cables
• Watertight Performance: Tapered rubber seal creates a watertight installation around the cable, while the included base gasket ensures a clean seal at the mounting surface
• Low Profile Construction: Impact-resistant plastic body with smooth edges provides a strong, clean installation that won't snag lines or cause injury
• Drill Tubes Included: Comes with four brass drill tubes (6mm, 8mm, 10mm, and 12mm) for creating precise, clean holes in the rubber seal for your specific cable diameter
• Multiple Cable Capability: Can accommodate more than one cable as long as each has its own hole with at least 0.125" of rubber remaining around each opening

The CG20PB is constructed from durable marine-grade plastic with a black finish that resists UV degradation and blends with most installations. The vertical mounting orientation makes it ideal for deck penetrations, cabin tops, and hardtop installations where cables need to pass through horizontal surfaces.
