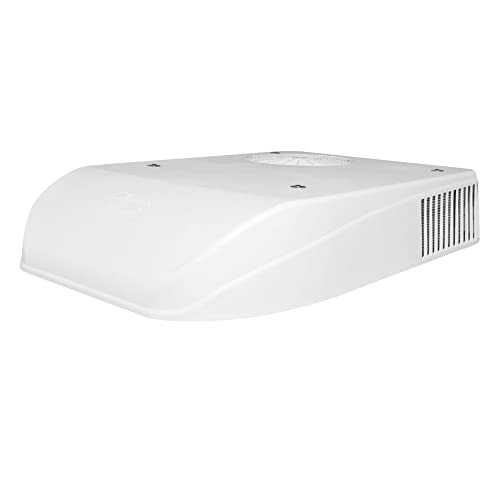

Coleman 47201-076 Mach 8 Cub Plus RV Air Conditioner 9,200 BTU Arctic White

The Coleman Mach 8 Cub Plus is a compact, high-performance rooftop air conditioner designed specifically for RVs and campers with limited roof space. This low-profile unit delivers 9,200 BTU of cooling capacity while fitting standard 14-inch x 14-inch roof vent openings, making it an ideal upgrade or replacement for smaller recreational vehicles.

Key Features:

• 9,200 BTU cooling capacity for effective climate control in compact spaces
• Fits standard 14" x 14" roof vent openings for easy installation
• Low-profile Cub design minimizes roof height and wind resistance
• Ducted or non-ducted configuration options for flexible installation
• Energy-efficient 8.9 amp compressor draw on 120V power
• Durable Arctic White textured finish resists UV damage and weathering
• Includes wood skid base for secure shipping and handling
• Weighs 87 pounds for manageable installation

Installation Notes:

This unit includes the rooftop condenser assembly only. The interior ceiling assembly must be ordered separately to complete the installation. Compatible with Coleman Mach ceiling assemblies designed for 14" x 14" applications. This model does not include a heat pump or condensate pump.

Specifications:

• Model Number: 47201-076 (replaces previous number 37201-076)
• Voltage: 120V AC
• Compressor Draw: 8.9 amps
• Weight: 87 lbs
• Color: Arctic White with textured finish

The Coleman Mach 8 Cub Plus delivers reliable cooling performance in a space-saving design, backed by Coleman's reputation for quality RV climate control systems.
