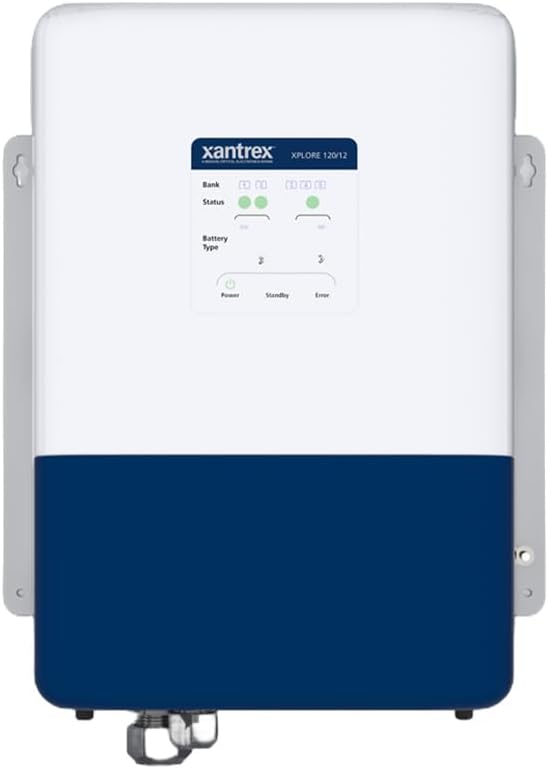

Xantrex Technologies 819-0120-12 XPLORE Battery Charger 12V 120A 6-Bank

The Xantrex XPLORE 120/12 battery charger delivers professional-grade marine and RV power management with an impressive 120 amps of charging capacity across six independent output banks. This powerhouse charger features universal auto-ranging AC input (80-265 Vac, 45-65 Hz) for reliable worldwide operation, making it ideal for vessels and recreational vehicles that travel internationally or encounter varying shore power conditions.

Advanced Multi-Bank Charging:

The XPLORE 120/12 stands out with its ability to simultaneously charge up to six separate battery banks while supporting two different battery chemistries at once. This dual-chemistry capability means you can charge your lithium house bank and traditional lead-acid engine batteries with a single unit, eliminating the need for multiple chargers and reducing installation complexity and cost.

Key Features:

• 120 amp total output across 6 independent charging banks
• Dual-chemistry charging supports different battery types simultaneously
• Compatible with Xantrex Lithium batteries and custom battery profiles
• NMEA 2000 connectivity for integration with onboard electronics
• Xantrex app connectivity via optional BLE module for advanced monitoring
• Power Share technology automatically limits output to prevent AC breaker trips
• Quiet Mode reduces fan noise and output when silence is needed
• Storage Mode automatically maintains batteries during extended non-use periods
• Dead Battery Charging recovers deeply discharged batteries from 0V
• Front panel LED display for quick status checks and basic configuration

Built-In Protection:

• Reverse battery polarity protection prevents installation errors
• Drip-proof design for marine and outdoor environments
• Over and under-temperature monitoring with automatic shutdown
• DC over-voltage protection safeguards sensitive electronics
• Battery overcharging protection extends battery lifespan

The XPLORE 120/12 is engineered for serious marine and RV applications where fast, reliable charging of multiple battery banks is essential. Its robust construction, intelligent charging algorithms, and comprehensive protection features make it an ideal choice for larger vessels, expedition vehicles, and off-grid installations requiring professional-grade power management.
