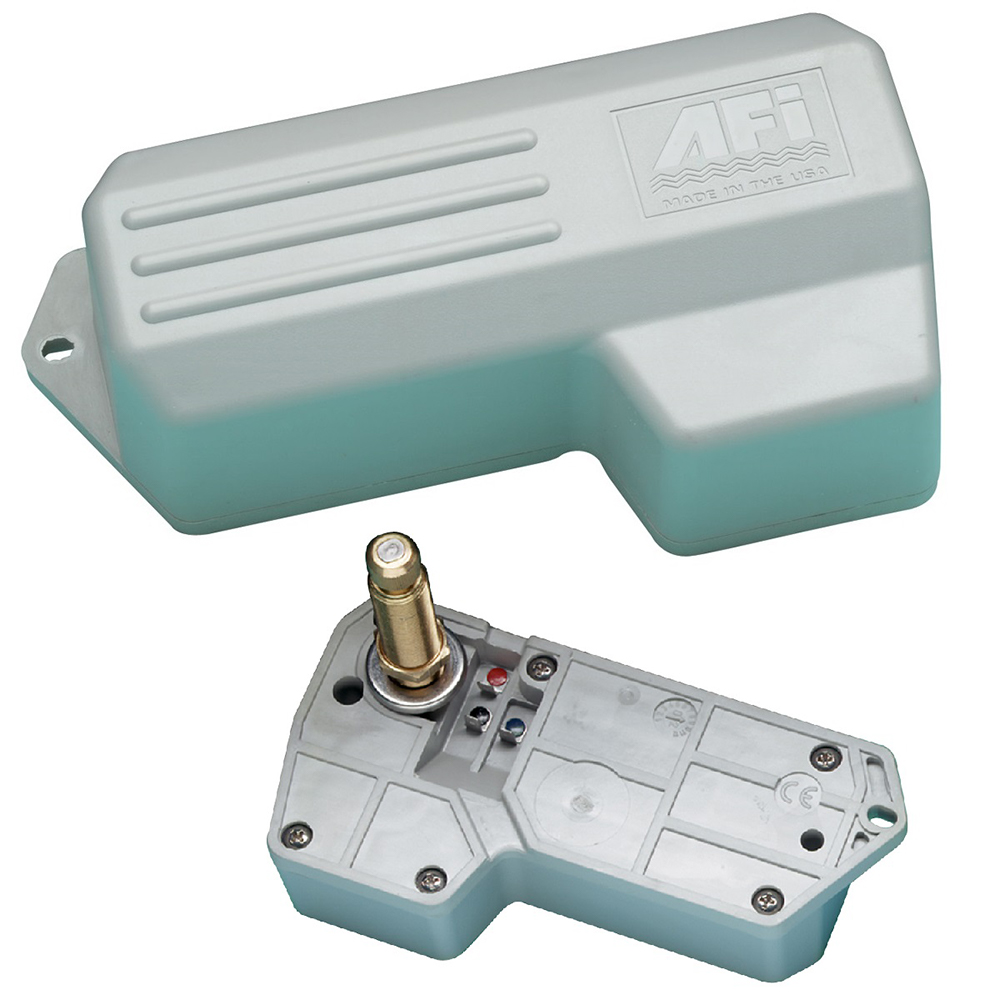

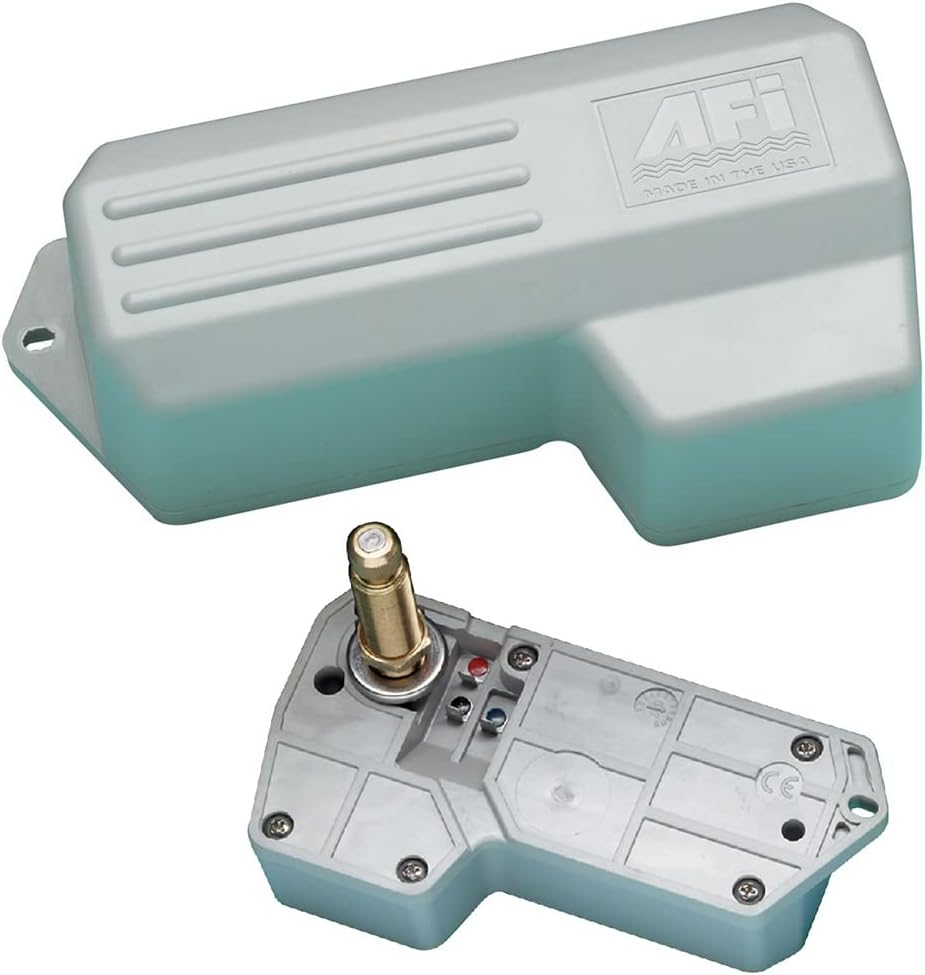

Marinco 37161 12V Waterproof Wiper Motor 2.5" Shaft 65° Sweep

The Marinco 37161 is a heavy-duty 12V waterproof wiper motor designed for marine applications. This 1000 Series motor features a fully sealed housing constructed from UV-stabilized, high-temperature, high-impact thermoplastic for maximum durability in harsh marine environments. The motor powers 18" deluxe wiper arm and blade combinations at sweep angles of 80° or less, or 16" deluxe combinations at 110° sweep angles.

Key Features:

• Factory pre-set 80° or 110° sweep, adjustable to 50°, 65°, 80°, or 110°
• 2.5" shaft length with 0.625" (16mm) diameter knurled drive shaft
• Heavy-duty 12V motor with anti-rotation drive shaft
• Solid brass arm drive nut for corrosion resistance
• Coast-to-park feature with adjustable right or left self-parking
• RF shielded circuitry to minimize electrical interference
• Includes 5 amp fuse and holder (switch sold separately)

Technical Specifications:

• Stall torque: 55 in-lbs (6.2 Nm)
• Stall current: 9.8-10.0 amps
• No load current: 0.8-1.2 amps
• Dimensions: 6.625" L × 3.375" W × 2" H
• Weight: 1.75 lbs

The waterproof housing and marine-grade materials make this wiper motor ideal for boats, yachts, and other marine vessels requiring reliable windshield clearing performance.
