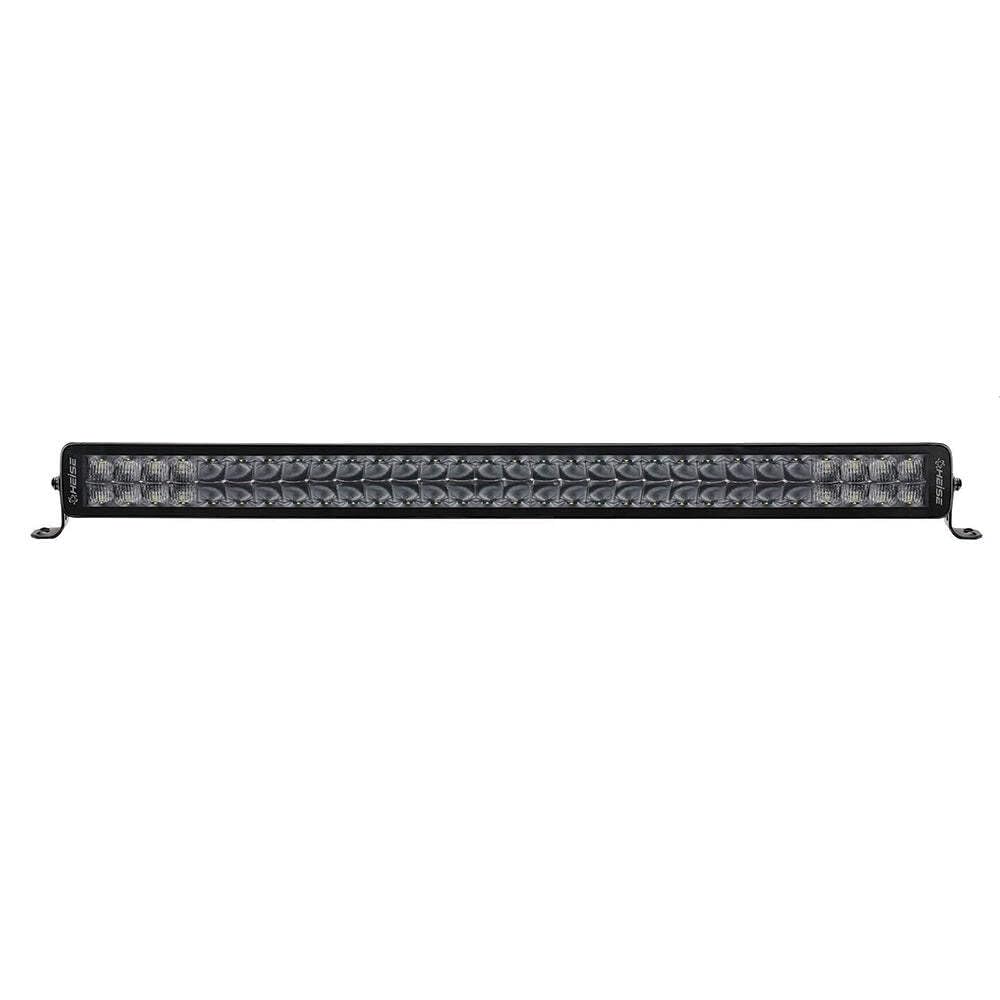

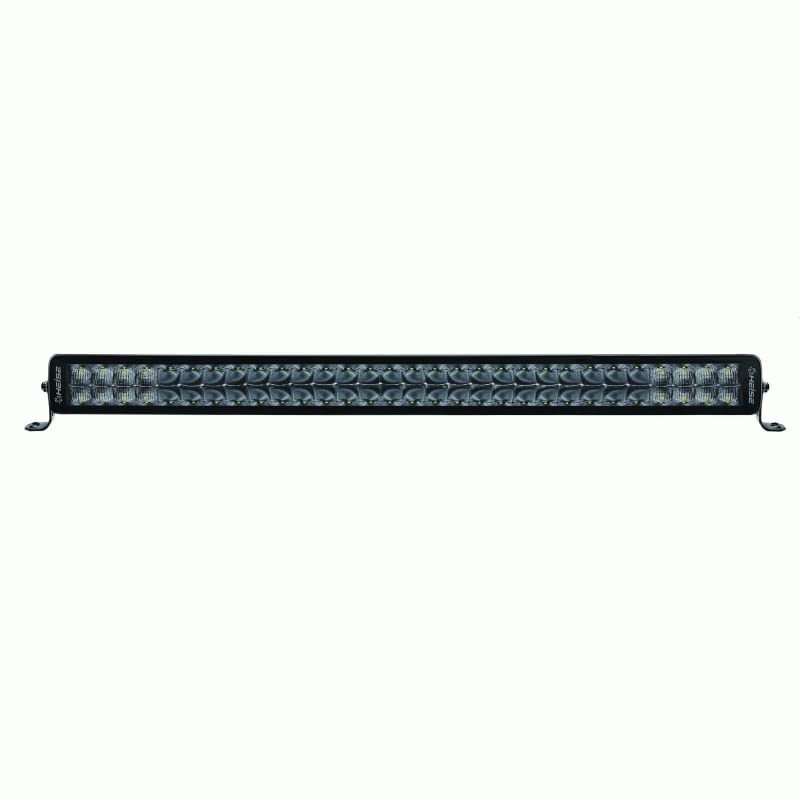

HEISE HE-BD32 32-Inch Blackout Dual Row LED Light Bar 60 LED 300W Combo Beam

The HEISE HE-BD32 is a 32-inch Blackout Series dual row LED light bar delivering powerful off-road illumination with a refined, minimalistic design. Featuring 60 LEDs and a robust 300-watt output, this light bar produces 25,200 raw lumens and 8,624 lux at 10 meters for exceptional visibility in demanding conditions.

Upgraded indirect-placement optics give drivers precise control over beam location and pattern. The hybrid combo beam pairs a 90° flood pattern on the outer LEDs with an intense 8° spot pattern in the center, providing both wide peripheral coverage and long-range throw in a single bar.

Built for durability, the die-cast aluminum housing and polycarbonate lens are fully sealed to an IP67 rating, protecting against dust and water intrusion. A proprietary protective vent port equalizes internal pressure and allows moisture to escape while blocking external water from entering the housing. Electronics are epoxy-encapsulated for added protection, and stainless steel 316 hardware resists corrosion in harsh environments.

Key Features:

• Combo beam pattern: 90° flood / 8° spot
• 60 LEDs | 300W | 25,200 raw lumens
• 5,700K color temperature for crisp, white light
• IP67 waterproof and dustproof rating
• Die-cast aluminum housing with polycarbonate lens
• Epoxy-encapsulated integrated electronics
• Protective vent port prevents moisture ingress
• Stainless steel 316 mounting hardware included
• Reverse polarity protection
• Side and rear mounting options
• Limited lifetime warranty

Specifications:

• Input Voltage: 10–30V DC
• Wattage: 300W
• Raw Lumens: 25,200 lm
• Lux at 10m: 8,624
• Current Consumption @ 13.8V: 9.3A
• Color Temperature: 5,700K
• Beam Pattern: Combo — 90° Flood / 8° Spot
• Length: 32 inches
• IP Rating: IP67
• Operating Temperature: -40°F to +140°F
• Mounting Bolt Drill: 0.25 inches
• Housing Color: Black
