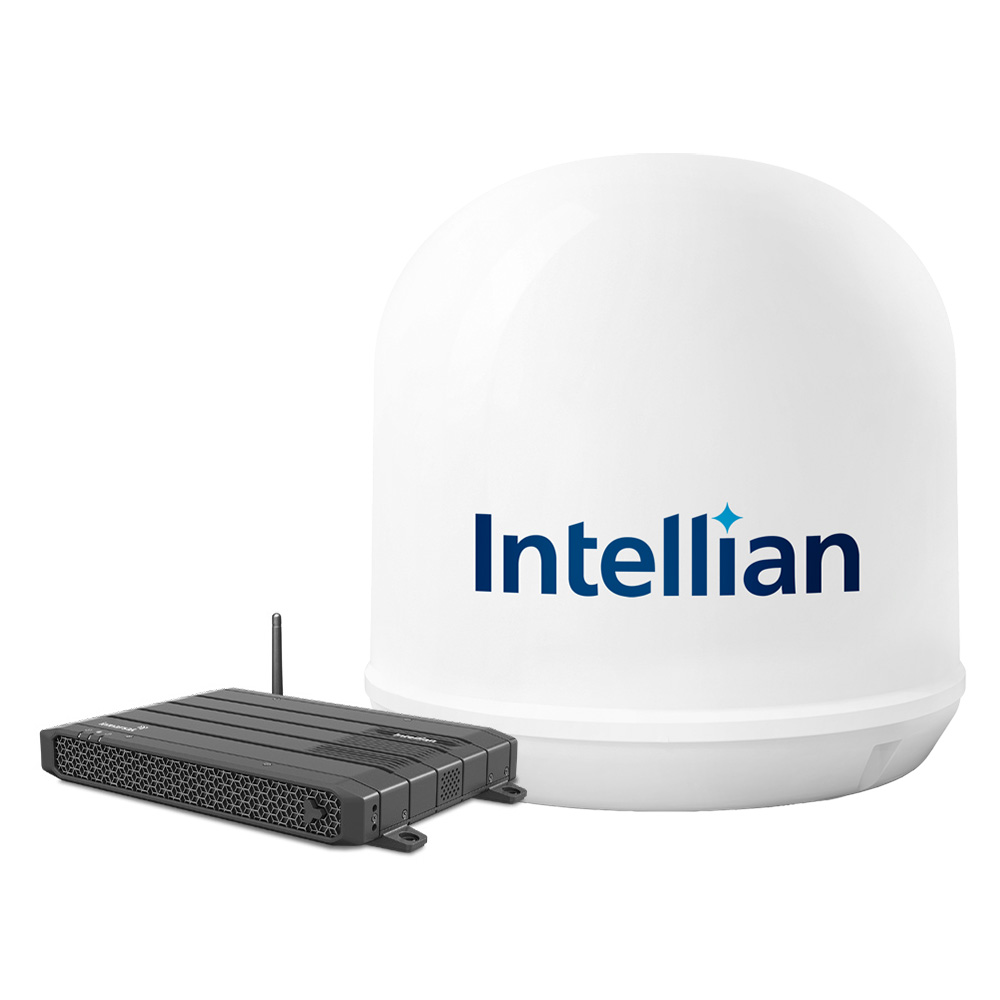

Intellian F4-A100-S Maritime Satellite Terminal for Inmarsat Fleet One Service

The Intellian F4-A100-S is a compact maritime satellite terminal designed specifically for Inmarsat's Fleet One service, delivering simultaneous voice and data connectivity up to 150 Kbps for reliable communication at sea. This dual-component system features a lightweight above-deck antenna unit and below-deck unit connected by a single RF cable for straightforward installation.

Key Features:

• Simultaneous voice and data transmission for uninterrupted communications
• Built-in firewall providing enhanced data security
• 505 emergency calling capability for direct MRCC (Maritime Rescue Coordination Centre) contact
• Maritime Safety Terminal support for compliance with safety regulations
• Integrated aptusLX management tool for intuitive system monitoring and control
• Dual LAN ports with Power over Ethernet (PoE) capability
• 802.11 b/g WiFi connectivity

Technical Specifications:

• Above Deck Unit (ADU): 11.5" × 11.6" (291.1 × 294.5 mm), 10.8 lbs (4.9 kg)
• Below Deck Unit (BDU): 11.0" × 7.5" × 1.45" (280 × 190 × 41 mm), 2.6 lbs (1.2 kg)
• Power Input: 10.8-30 VDC, 120W maximum consumption
• Transmit Frequency: 1626.5-1675.0 MHz
• Receive Frequency: 1518.0-1559.0 MHz

Package Includes:

• Above Deck Unit (ADU) antenna
• Below Deck Unit (BDU)
• Coaxial RF cable
• DC power cable
• Ethernet cable
• Installation template
• Quick installation guide

The lightweight design and simple single-cable connection make the F4-A100-S ideal for vessels requiring dependable global maritime communications without complex installation requirements.
