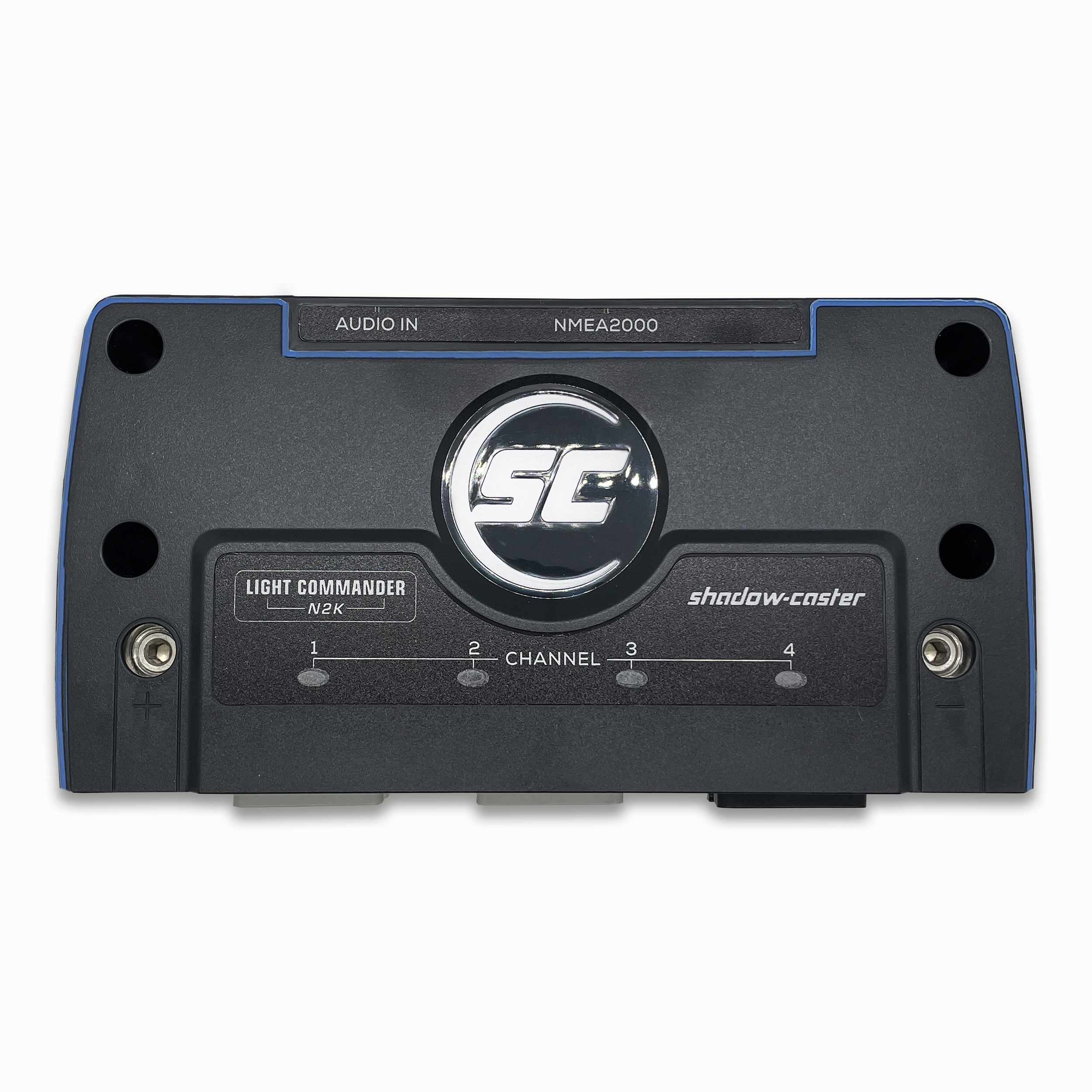

Shadow-Caster SCM-LC-N2K Light Commander NMEA 2000 6-Zone Controller

The Shadow-Caster Light Commander SCM-LC-N2K is an advanced NMEA 2000 connected lighting controller designed for marine applications. Built on the latest NMEA 2000 lighting control standards, this controller enables seamless integration with compatible multi-function displays and marine electronics systems for next-level lighting control and system interoperability.

This expandable multi-zone controller manages up to 6 zones of lighting per module with native support for 4 zones of RGB or RGBW lights. The system is expandable to 18 zones by connecting multiple units via Shadow-Net bus connectivity. The controller features built-in lighting programs including multiple color fade modes, music synchronization capabilities, and dynamic color rotation effects.

Key Features:

• NMEA 2000 backbone connectivity for integration with MFD networks
• IP67 water-resistant rated housing with waterproof Deutsch-style connections
• All-in-one design eliminates the need for separate communication bridges
• Digital over-current protection circuits rated at 15 amps per channel (4 channels)
• 6 separate zone control, expandable to 18 zones with multiple units
• 6 instant-on switch inputs for manual light activation without MFD control
• Native support for RGB and RGBW lighting configurations
• Backlit logo and zone indicator LEDs for status monitoring
• Built-in 3.5mm audio input port and integrated microphone for music sync
• Optional wireless connectivity for mobile device control

Technical Specifications:

• Enclosure Dimensions: 8.9" L x 4.75" W x 1.8" H
• IP67 rated sealed enclosure for harsh marine environments
• Power Capacity: Supports over 600 watts of RGB lighting
• Current Rating: 15 amps per zone, 60 amps maximum total
• Input Voltage: 10-30V DC operating range
• Music Sync: Onboard DSP (Digital Signal Processing) with 3.5mm input or built-in microphone
• Color Support: 24-bit color depth with gamma correction
• Shadow-Net bus for system expansion and device connectivity
• Global control capability for synchronized lighting across all zones

The Light Commander includes digital power protection, instant-on switch functionality for each zone, and is designed for clean OEM-style installations in boats, yachts, and other marine vessels requiring sophisticated lighting control.
