KVH 01-0432-11 TracNet H30 Ku-Band Marine Satellite Antenna with Hub

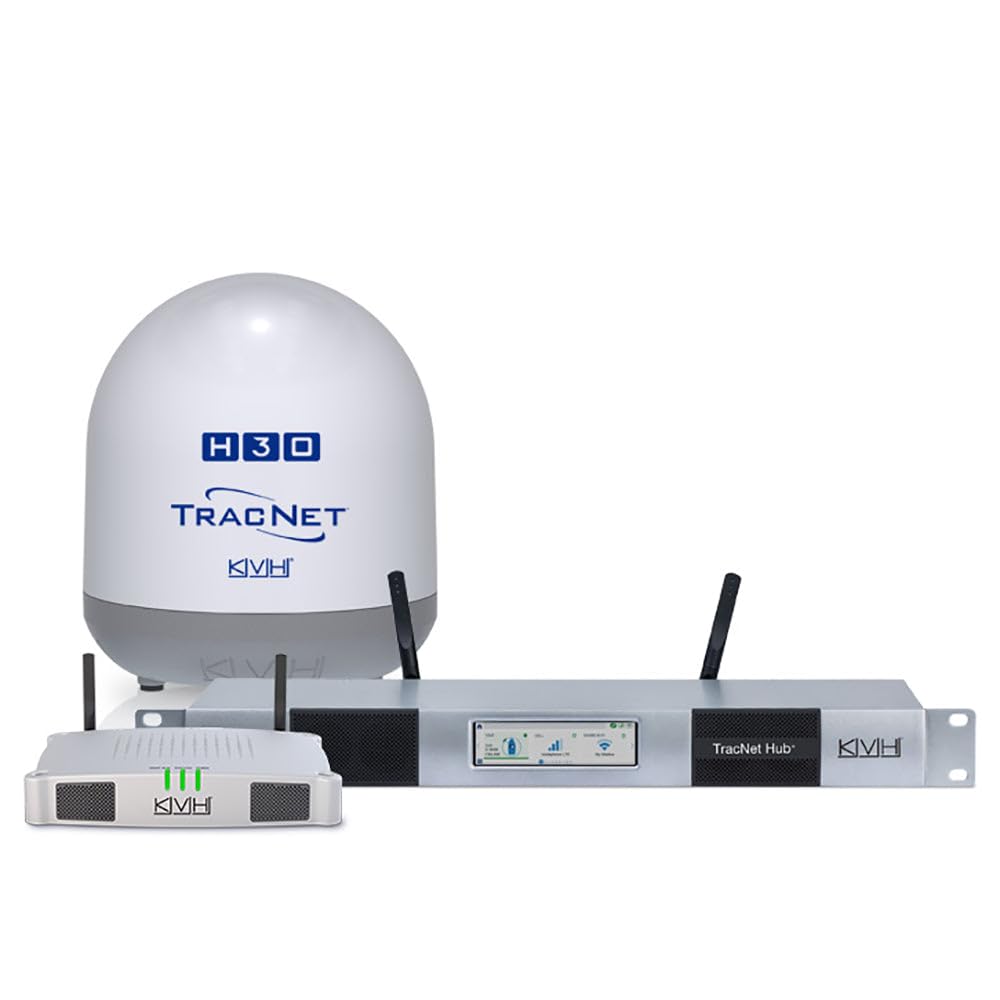

The KVH TracNet H30 is a groundbreaking ultra-compact marine satellite antenna system that delivers high-speed connectivity through the KVH ONE hybrid network. This complete system includes the H30 dome antenna and TracNet Hub, providing seamless access to satellite, cellular, and Wi-Fi communications with intelligent automatic network switching to keep you connected in all sea states.

KVH ONE Hybrid Network Connectivity:

• Global HTS Ku-band satellite coverage spanning 276 million sq km (106+ million sq miles), powered by Intelsat
• Cellular support in over 150 countries, reaching as far as 32+ km (20+ miles) offshore
• Compatible with shore-based Wi-Fi networks for added flexibility
• Automatic switching to the best connectivity option based on cost and data quality

Key Features:

• Ultra-compact design - up to 51% lighter than competitive systems
• Two-axis stabilized platform with skew control for reliable tracking

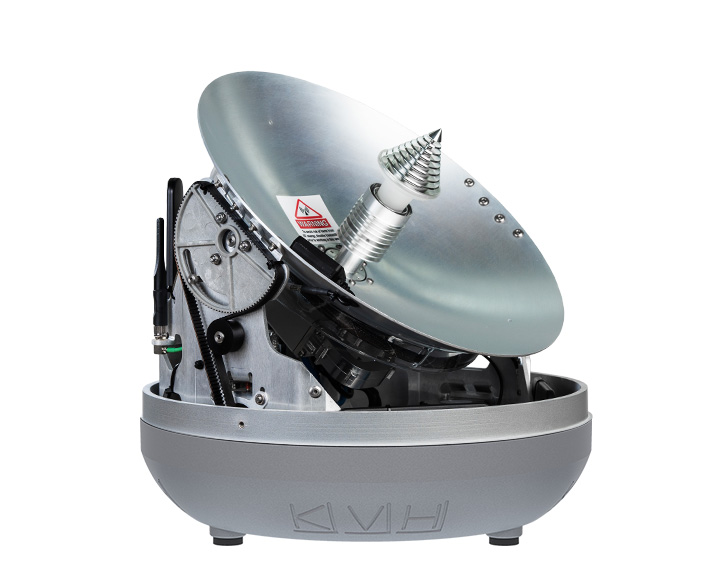

• RingFire antenna design with dielectric rod feed for excellent reception in adverse weather
• Single coax cable installation simplifies below-deck setup
• Integrated terminal and network security with optional enterprise-level upgrades
• Compatible with DC and AC power BDUs (below deck units)
• Ideal for vessels 30+ feet (9+ meters)

Technical Specifications:

• Dome Diameter: 14.5 inches (36.8 cm)
• Dome Weight: 24.6 lbs (11.1 kg)
• Maximum Data Speed: 6 Mbps download / 2 Mbps upload
• Elevation Range: 7.7° to 75°
• Azimuth Range: Unlimited rotation
• Operating Temperature: -22°F to 131°F (-30°C to 55°C)
• Power Source: DC provided by TracNet Hub or Hub+
• Connection: Single coax cable

Subscription to KVH ONE service required for operation. This system represents the latest in marine satellite communication technology, offering reliable global connectivity for cruising, fishing, and commercial vessels.
