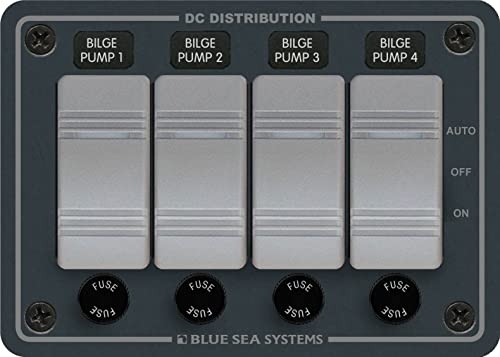

Blue Sea Systems 8666 Water-Resistant 4-Circuit Bilge Pump Control Panel

The Blue Sea Systems 8666 Contura 4 Bilge Pump Control Panel provides reliable water-resistant switching and circuit protection for up to four bilge pumps on 12V or 24V DC marine electrical systems. This completely pre-wired panel features integrated Contura III rocker switches with ON-OFF-AUTO functionality and built-in fuse protection, making installation quick and straightforward.

Key Features:

• Four Contura III SPDT rocker switches with ON-OFF-(ON) operation for manual and automatic bilge pump control
• Integrated LED indicators embedded in each switch illuminate when pumps are running
• Four AGC/MDL panel-mount fuse holders accept standard glass fuses up to 20 amps
• Water-resistant design with watertight mounting gasket for harsh marine environments
• Completely pre-wired and ready to install—no additional wiring harness required
• Includes black label set for customizing switch identification

Technical Specifications:

• Voltage: 12V or 24V DC nominal
• Switch Rating: 20A at 12V DC / 15A at 24V DC per circuit
• Panel Cumulative Rating: 45A
• Weatherproof Rating: Water-Resistant
• Dimensions: 3.75" H × 5.25" W × 3" D

Package Includes:

• Four (4) Contura III SPDT switches (P/N 7944)
• Four (4) AGC/MDL panel-mount fuse holders (P/N 5021)
• Black 60-label set (P/N 8214)
• Watertight mounting gasket

This panel provides centralized bilge pump control with professional-grade switching and circuit protection, ideal for boats requiring multiple bilge pump circuits with automatic float switch capability.
