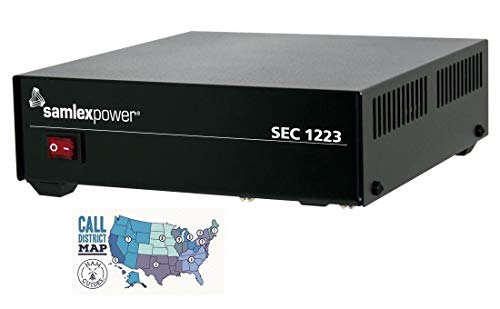

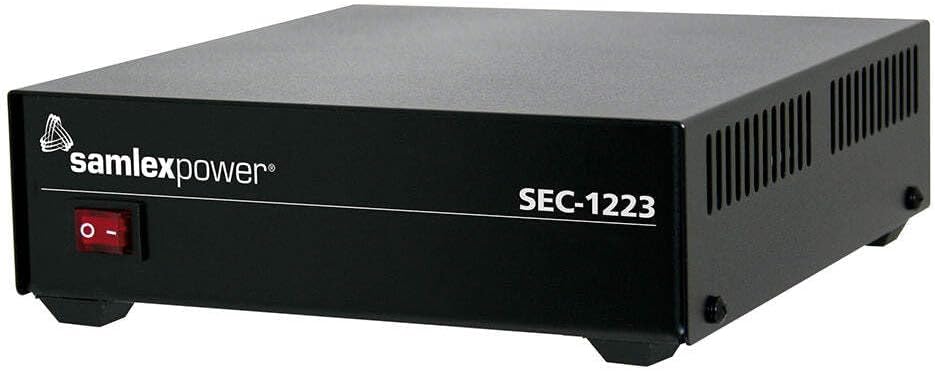

Samlex SEC-1223 23A 13.8V Switching Power Supply for Ham Radio

The Samlex SEC-1223 is a high-efficiency UL-60950-1 approved switching power supply that delivers a highly regulated 13.8 VDC output at 23 amps continuous from a 120 VAC, 60 Hz input. Designed specifically for land mobile radio (LMR) and amateur radio applications, this advanced switch-mode power converter provides clean, reliable power with superior RFI suppression to prevent interference with sensitive communications equipment.

Key Features:

• Advanced switch-mode technology for efficient operation with minimal heat generation
• Highly filtered output suppresses RFI and noise for clean power delivery
• Multiple protection circuits: over-current, short-circuit, and over-voltage
• Selectable input voltage via internal jumper (120 VAC or 240 VAC)
• Compact, lightweight design delivers reliable power with minimum footprint
• UL listed to USA and Canadian safety standards (UL-60950-1)
• FCC Part 15(B) Class B certified for digital device emissions
• Detachable power cord with NEMA 5-15P plug included

Technical Specifications:

• Input Voltage: 100-130 VAC, 60 Hz
• Output Voltage: 13.8 VDC (regulated)
• Output Current: 23 Amps continuous
• AC Input Fuse: 6.3 Amps
• Dimensions: 7.28" L x 8.19" W x 2.40" H
• Weight: 3.5 lbs

Ideal Applications:

• Amateur (ham) radio transceivers and base stations
• Two-way radio communications systems
• Security and surveillance systems
• GPS receivers and navigation equipment
• Automotive and marine electronics testing
• 12-volt lighting systems and displays
• Test equipment and OEM applications

This power supply bundle includes the Ham Guides™ Pocket Reference Card, providing quick access to essential amateur radio information. The SEC-1223's combination of high current capacity, low noise operation, and comprehensive protection features makes it an excellent choice for powering modern ham radio equipment and other 12-volt DC applications requiring clean, stable power.
