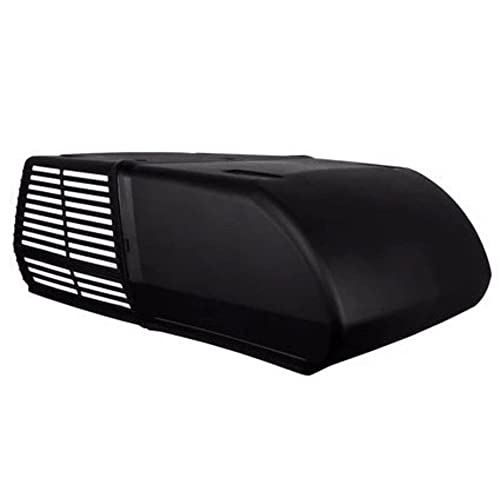

Coleman 48203069 Mach 3 Plus 13,500 BTU RV Roof Air Conditioner - Medium Profile, Textured Black

The Coleman Mach 3 Plus is America's over-the-road bestseller and one of the best RV air conditioning values available. This medium-profile rooftop air conditioner features a powerful 13,500 BTU cooling capacity with 320 CFM airflow, making it ideal for keeping your RV comfortable even in hot weather conditions.

Key Features:

• 13,500 BTU cooling capacity delivers powerful, reliable cooling performance
• Large evaporator and condenser coils with raised lance fins enhance heat dissipation
• All-copper tubing with gas-flux brazed joints ensure durability and long service life
• Fits standard 14" x 14" roof vent openings for easy installation
• 1/3 HP fan motor - the largest in the industry - with sealed shaft protection
• 320 CFM airflow for efficient air circulation throughout your RV
• Two-speed fan operation for better airflow control
• Textured black shroud with medium-profile design
• Suitable for both ducted and non-ducted installations
• 120-volt operation with 13.1 amp compressor draw
• Cool-only function (no heat pump)

This unit ships with a wood skid and includes the upper rooftop assembly only. The ceiling assembly must be ordered separately based on your specific ducted or non-ducted configuration. The motor is mounted directly to the bulkhead to prevent distortion and ensure smooth, reliable operation. With over 6 million Coleman-Mach units produced since 1967, you can trust this air conditioner to deliver the cooling performance your RV needs.

Specifications:

• Cooling Capacity: 13,500 BTU
• Airflow: 320 CFM
• Voltage: 120V AC
• Amperage: 13.1 amps (compressor draw)
• Dimensions: 38" L x 26.1" W x 13.8" H
• Weight: 79.5 lbs
• Roof Opening Required: 14" x 14"
• Color: Textured Black
• Part Numbers: 48203069, 48203-069, 38203-069
