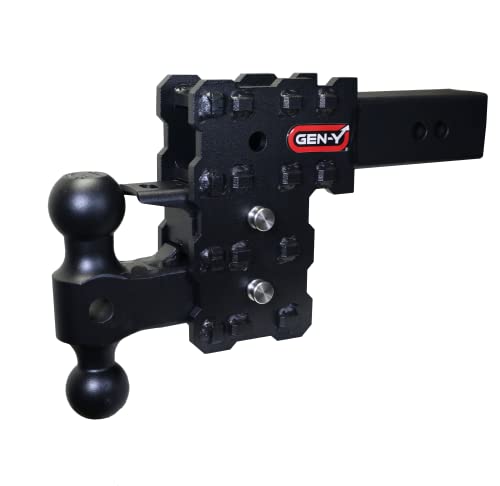

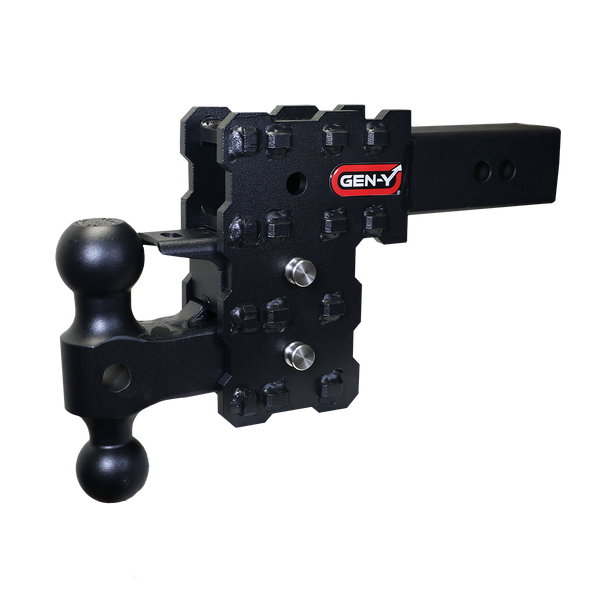

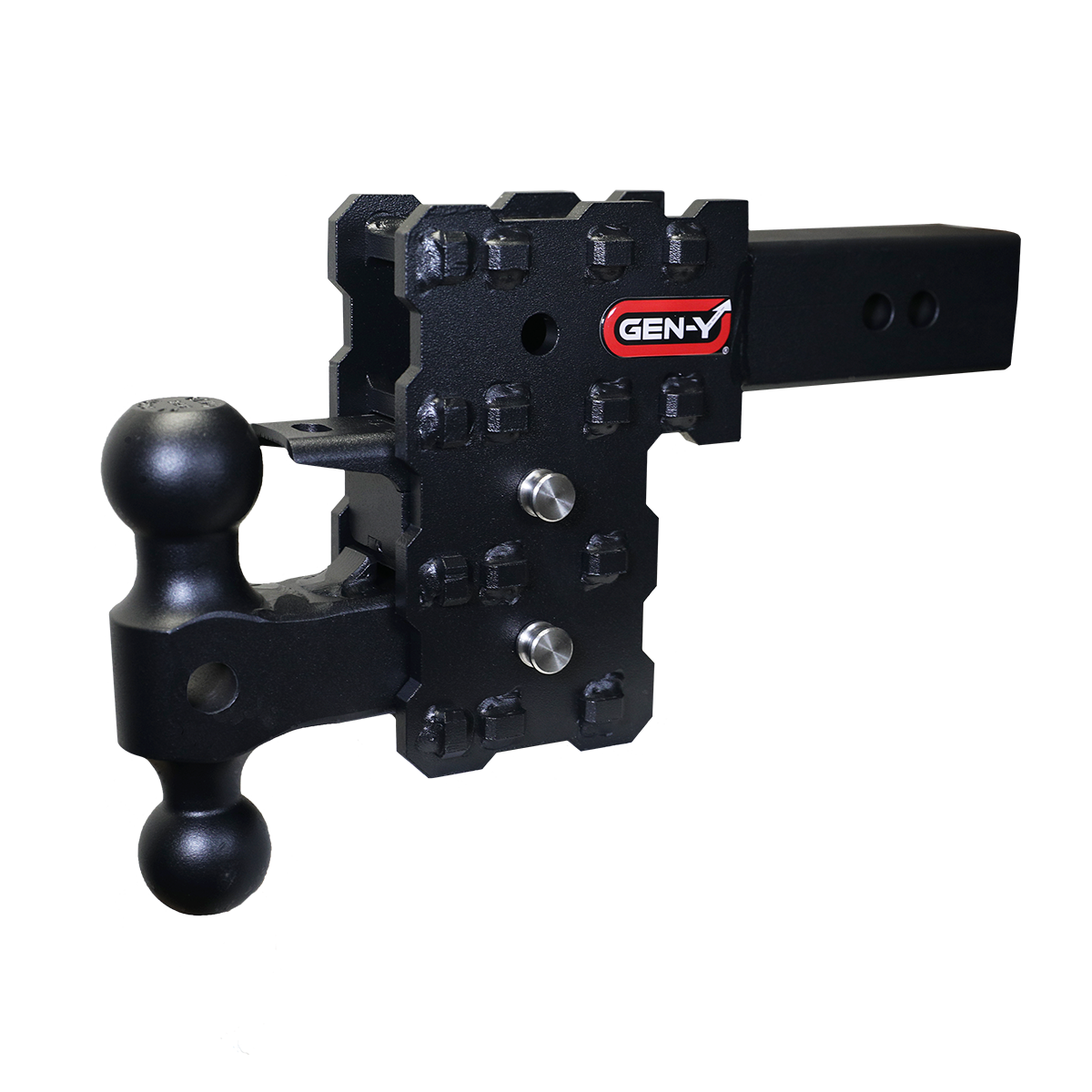

The Gen-Y Hitch Phantom-X 16K GH-2423X is a heavy-duty adjustable drop hitch designed for serious towing applications with 2.5" truck receivers. This complete towing solution features a solid shank construction with a 5" drop and is rated for a maximum towing capacity of 16,000 lbs and a maximum tongue weight of 1,600 lbs, making it ideal for heavy-duty trailers, RVs, and equipment hauling.
Innovative Adjustable Design:
Gen-Y's patented stacked tube design allows you to adjust the ball mount up or down to achieve the perfect amount of drop every time. The hitch features 2" slot openings and three adjustable positions, providing versatility for different towing heights. Simply pull the pin and move the ball mount to your desired position. The Phantom-X can be used in both drop and rise positions, making it a truly versatile towing solution.
Complete Towing Package Includes:
- GH-051 Dual-Ball Mount: Features 2" shank with both 2" and 2-5/16" balls for quick selection based on your trailer coupler size
- GH-032 Pintle Lock: Allows towing with lunette ring trailers, adding even more versatility
- 2.5" Solid Shank: Heavy-duty construction for maximum strength and durability
Heavy-Duty Construction:
Fabricated with heavy-duty steel, each hitch is sandblasted and finished with a durable powder coat for long-lasting protection against rust and corrosion. All Phantom-X 16K drop hitches exceed SAE-J684 weight testing requirements, ensuring reliable performance under demanding conditions. Made in the USA and backed by Gen-Y's limited lifetime warranty against manufacturing defects.
Specifications:
- Receiver Size: 2.5"
- Drop Height: 5" (3 adjustable positions)
- Maximum Towing Capacity: 16,000 lbs
- Maximum Tongue Weight: 1,600 lbs
- Shank Type: Solid (2.5")
- Ball Sizes: 2" and 2-5/16" (included)
- Finish: Black powder coat
Note: Tow capacity is limited by the lowest rated component. The Phantom-X hitch is not recommended for flat towing vehicles or use with weight distribution systems. For best results, use with Gen-Y Hitch towing attachments.
