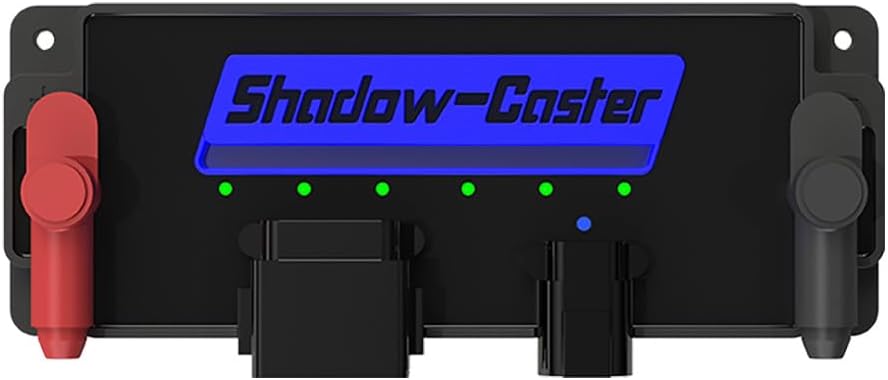

Shadow-Caster SCM-PWR6 6-Channel Digital Switch Module for Shadow-NET Lighting Control

The Shadow-Caster SCM-PWR6 6-Channel Digital Switch Module provides seamless integration of standard single-color and third-party lighting into the Shadow-NET system. This intelligent switch module automatically populates on your MFD interface when connected, eliminating complex configuration and enabling instant control of non-Shadow-Caster lights through the same interface you use for your existing Shadow-Caster lighting.

Key Features:

• 6 independent digital switches with 10 amp capacity per channel
• Compatible with Shadow-Caster MFD interface and mobile phone app for unified lighting control
• Digital overcurrent fault protection safeguards each channel independently
• Manual switch override input for direct control when needed
• Green/red status LEDs indicate operational state of each channel
• Blue backlight clearly shows power state at a glance
• Full plug-and-play integration with Shadow-NET networked lighting system

Technical Specifications:

• Operating voltage: 12V/24V DC
• Channel capacity: 10 amps per channel (6 channels total)
• Power connections: 5/16" power lugs with protective boots
• Data connections: IP67-rated Deutsch connectors
• Mounting: 4 x #8 Phillips head screws (0.5" length included)

Package Contents:

• 6-channel digital power switch module
• Mounting hardware (4 screws)
• Pre-wired mating connectors
• Power lug protection boots
• 3-year standard manufacturer warranty

Ideal for marine vessels, RVs, and other mobile applications requiring centralized control of multiple lighting circuits from brands beyond the Shadow-Caster ecosystem.
