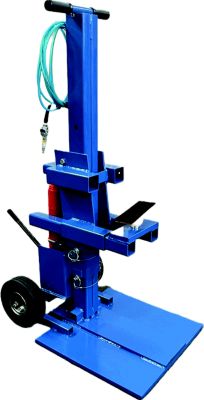

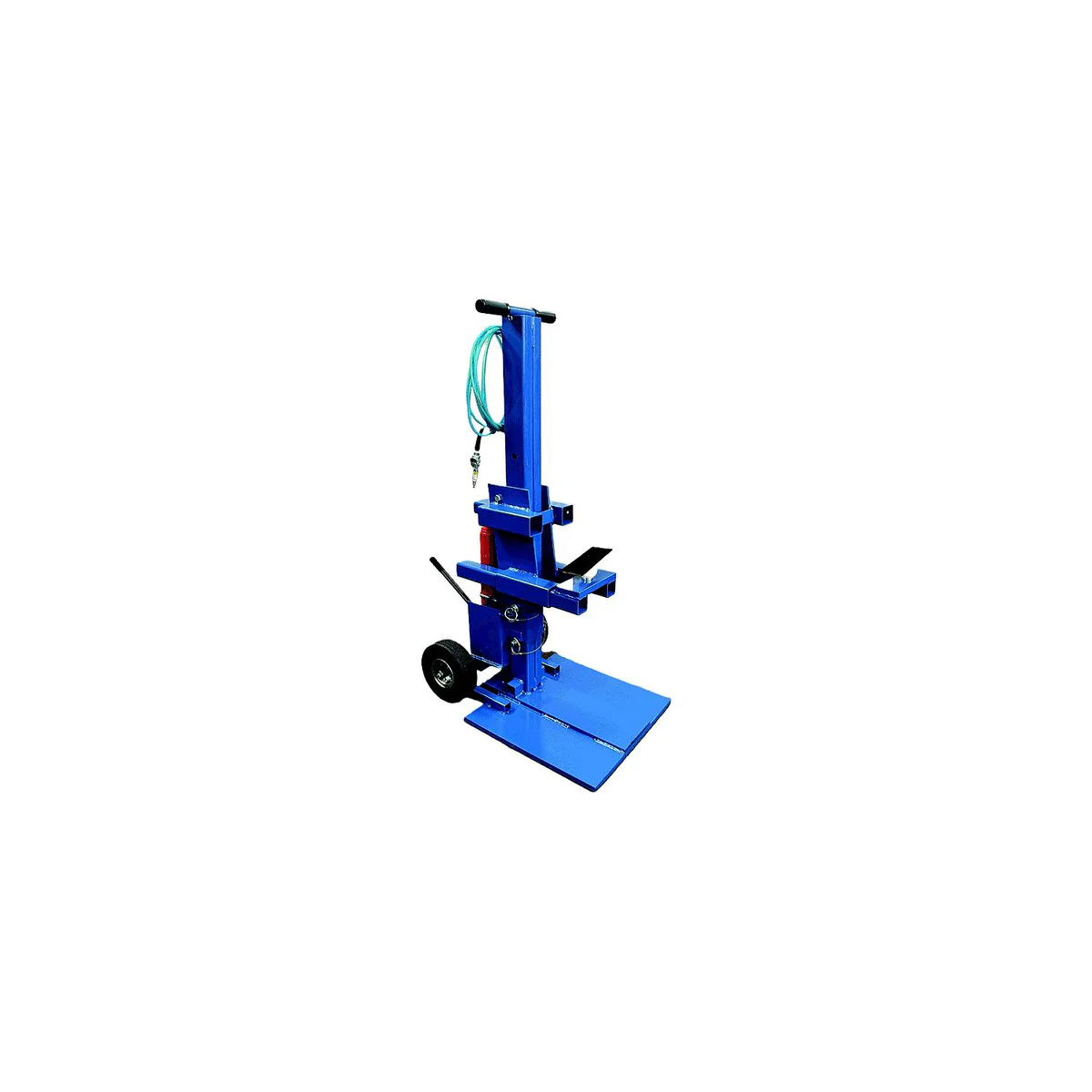

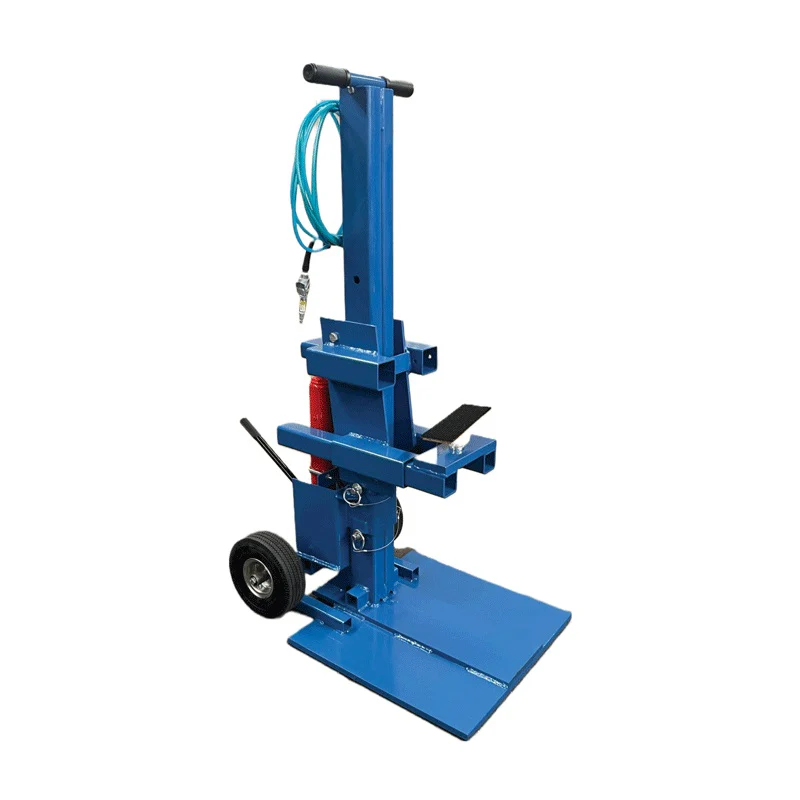

Brownell BL8AIR Air-Powered Boat Lift 8000 lb Capacity Hydraulic Jack

The Brownell BL8AIR Air-Powered Boat Lift is a professional-grade lifting system designed for boat builders, dealers, marinas, and service facilities handling vessels up to 32,000 pounds (when using four jacks). Each lift is powered by an eight-ton air over hydraulic ram jack, delivering smooth and precise lifting control with a safe working load of 8,000 pounds per jack.

Key Features:

• Air over hydraulic operation allows one person to operate four lifts simultaneously with a standard manifold (manifold not included)
• Versatile lifting range from 18 inches to 64 inches at full capacity
• The jacks can also operate manually when an air supply is not available
• Includes 25-foot air hose for convenient positioning
• Safety pins provide additional protection during lifting operations
• No-flat tires and hand grip ensure easy mobility around the workspace
• Adjustable base and arm with two arm positions for optimal boat support
• Variable capacity at horizontal extensions: 8,000 lbs at 10 inches, 6,000 lbs at 14 inches, 4,000 lbs at 18 inches

Specifications:

• Safe Working Load: 8,000 lbs (3,628 kg) per jack
• Lifting Range: 18-64 inches
• Recommended Air Supply: 120 PSI with minimum 20-gallon storage tank
• Weight: 600 lbs per jack
• Dimensions: 60L x 24W x 34H inches

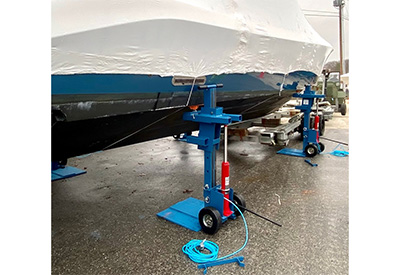

The small footprint of the BL8AIR system can be used where lifting equipment such as forklifts and mobile hoists simply cannot fit. Using an air manifold allows the user and staff maintain a safe distance, while actively adjusting, balancing and lifting the boat remotely; increasing safety and labor savings. Ideal for final assembly, warranty work, service departments, indoor storage, boat shows, and showroom displays. Made in the USA. Note: Full system consists of four jacks sold individually.
