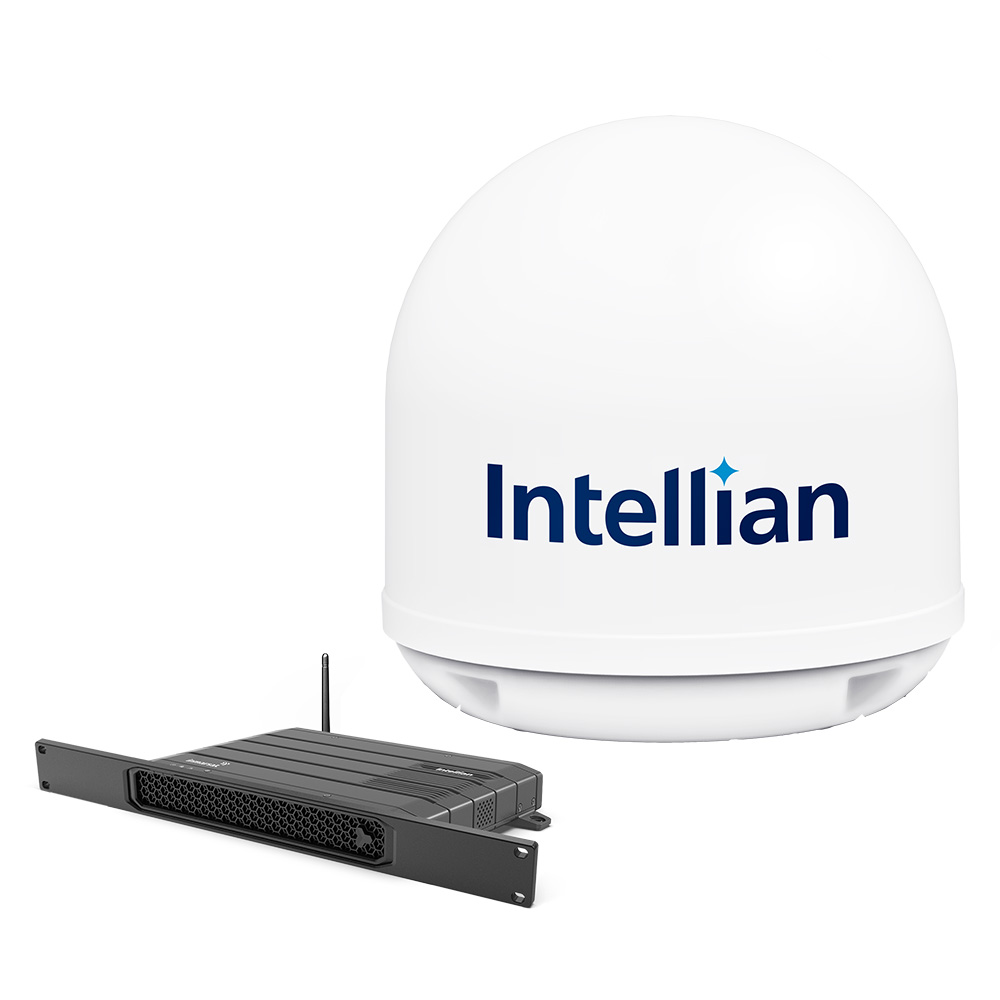

Intellian F4A250R FB250 Inmarsat Fleet Broadband Maritime Terminal

The Intellian FB250 is a compact maritime satellite terminal designed for Inmarsat's L-band ELERA network, providing simultaneous voice and data connectivity up to 284 Kbps. Engineered as the ideal companion to Intellian GX100NX and GX60NX Global Xpress terminals, the FB250 delivers reliable Fleet Xpress (FX) connectivity for commercial vessels, combining high-speed Ka-band data with proven L-band backup for uninterrupted global coverage.

Key Features:

• Simultaneous voice and data support for email, SMS, and voice calls with 505 emergency call capability
• Compact two-axis helix antenna with unlimited azimuth range and efficient tracking
• Built-in Inmarsat BRM module for seamless Fleet Broadband connectivity
• 19-inch rack mount Below Deck Unit (BDU) for easy integration
• Single cable installation with Ethernet over coax technology
• AptusLX web-based platform for intuitive system management and configuration
• GMDSS-ready for maritime safety compliance

All-in-One Connectivity Solution:

• Four LAN ports with Power over Ethernet (PoE) support
• Analog voice lines for traditional ship communications
• Built-in firewall for enhanced data security
• 3G/LTE WAN port for external cellular modem connection
• Soft PABX functionality for onboard telephone management
• 802.11 b/g Wi-Fi capability

Technical Specifications:

• DC Input: 10.8-30 VDC
• Maximum Power Consumption: 120W
• RX Frequency: 1518.0-1559.0 MHz
• TX Frequency: 1626.5-1675.0 MHz
• Antenna Connectors: TNC female (ADU and BDU)
• ADU Dimensions: 11.5" x 11.6" (291.1 x 294.5 mm)
• ADU Weight: 10.8 lbs (4.9 kg)
• BDU Dimensions: 11.0" x 7.5" x 1.45" (280 x 190 x 41 mm)
• BDU Weight: 2.6 lbs (1.2 kg)

The FB250 is ideal for vessel operations requiring reliable satellite communications for safety services, crew welfare, and business operations. Backed by a three-year global warranty, this system provides peace of mind for maritime professionals operating in any ocean region.
