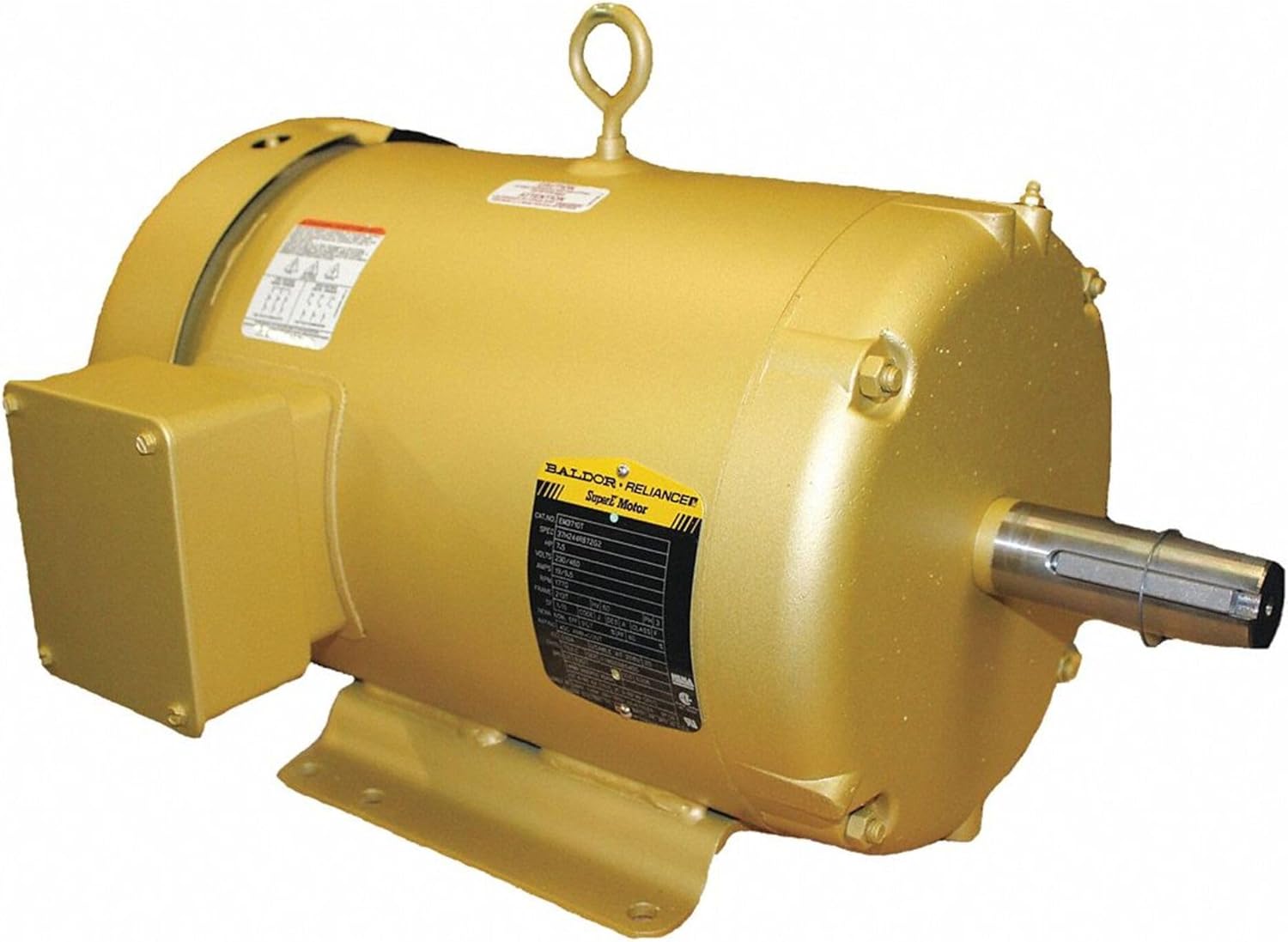

Baldor EM3710T General Purpose AC Motor 7.5 HP 230/460V 3 Phase 1770 RPM TEFC

The Baldor EM3710T is a general purpose three-phase AC motor rated at 7.5 horsepower, operating at 230/460 volts with a base speed of 1770 RPM. This motor features a TEFC (Totally Enclosed Fan Cooled) enclosure design in a durable 213T steel frame. As a Super-E motor, it meets NEMA Premium efficiency standards and is designed to conserve energy over extended operating periods.

Key Specifications:

• Full load current: 9.4A at 460V, 18.8A at 230V, 21.0A at 208V
• Full load efficiency: 91.7%
• Frequency rating: 60 Hz
• Service factor: 1.15
• Insulation class: F
• Inverter rated per NEMA MG1 Part 31.4.4.2
• Suitable for mounting in any position

Features:

• Ball bearings for reliable operation
• Heavy-gauge steel construction
• Gasketed conduit boxes for protection
• Low-loss electrical grade lamination steel
• Foot-mounted design for secure installation
• Continuous duty rated

This motor is ideal for pumps, compressors, fans, conveyors, machine tools and other general purpose three-phase industrial applications. It is designed to meet or exceed the energy efficiency requirements of the United States for general purpose industrial motors, while delivering high starting torque, overload capability and superior reliability.
