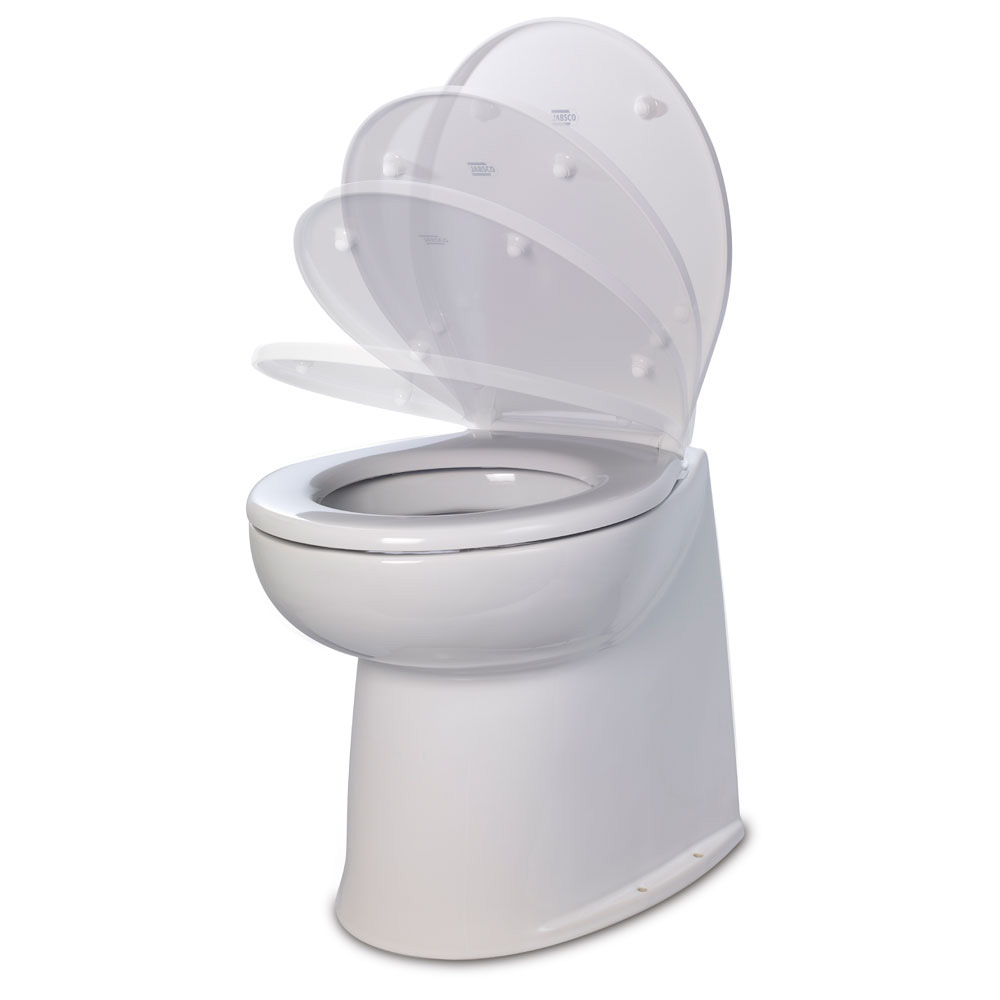

Jabsco 58080-3012 Deluxe Flush 14" 12V Electric Marine Toilet Straight Back

The Jabsco Deluxe Flush electric marine toilet brings household comfort and convenience to your boat with a space-saving design, whisper-quiet operation, and minimal water consumption. This 14-inch straight back model features a powerful macerating pump and freshwater rinse system controlled by an intuitive 4-button touch panel.

Key Features:

• Household-size bowl with soft-close seat and lid for comfort and quiet operation
• Powerful large-bore macerating pump prevents clogs and efficiently processes waste
• Freshwater rinse system with solenoid valve connects to pressurized water systems (requires 2.9 GPM or more)
• Virtually silent operation ideal for overnight passages and sleeping crew
• Space-saving 14-inch straight back configuration fits compact marine heads
• Surface-mount 4-button control pad with fill, quick flush, flush, and empty functions
• Programmable dry or wet bowl setting to optimize water usage
• Dual non-return valves protect freshwater system from backflow contamination

Technical Specifications:

• Voltage: 12V DC
• Recommended Fuse: 25 AMP
• Bowl Style: Domestic size
• Rinse Type: Freshwater with solenoid valve
• Dimensions: 14.4" H x 14.8" W x 17.7" D
• Weight: 55.1 lbs

Control Pad Functions:

• Fill: Adds 1 quart of water to dry bowl before use
• Quick Flush: Rinses and empties bowl after light use (less than 1 quart on dry setting)
• Flush: Double rinse and empty cycle for heavy use (2.5 quarts total)
• Empty: Pumps out bowl contents without adding water

The control pad allows you to select between dry bowl mode (minimizes water consumption) or wet bowl mode (automatically refills after flushing). Switch modes by holding both quick flush and flush buttons for 5 seconds. The solenoid valve assembly includes dual non-return valves to prevent contamination of your boat's freshwater system.
