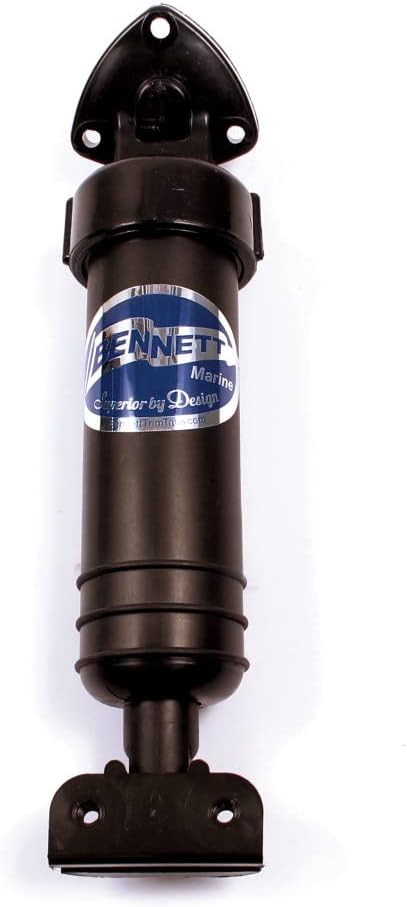

Bennett 6BT-50084-79-00 Short Hydraulic Trim Tab Actuator A1200S

The Bennett A1200S Short Hydraulic Actuator Assembly is a compact, space-saving solution specifically designed for trim tab installations where space is limited. This actuator measures 11.75 inches in compressed length and provides a 2.5-inch stroke, making it ideal for short transom applications or situations where the standard 13.75-inch actuator height makes installation difficult.

Key Features:

• Durable nylon and fiberglass hydraulic cylinder construction built to withstand harsh marine environments
• Piston-like arms push trim tabs into position and hold them securely
• Concealed through-transom hydraulic design eliminates external hoses subject to damage
• Fluid flows through a concealed port in the upper hinge for a clean, streamlined appearance
• Maintenance-free operation backed by Bennett's lifetime limited warranty
• Identified by 3 raised rings at the lower end of the cylinder body

Important Notes:

• Not recommended for trim tabs with span over 24 inches or performance applications
• Replacement actuators do not include mounting hardware (Hardware kit H1170A recommended separately)
• Part of Bennett Marine's legendary trim tab system, a division of Yamaha Marine Systems

This genuine Bennett replacement actuator delivers reliable, trouble-free performance for years to come, maintaining precise trim control to optimize boat performance, improve fuel efficiency, and enhance overall handling.
