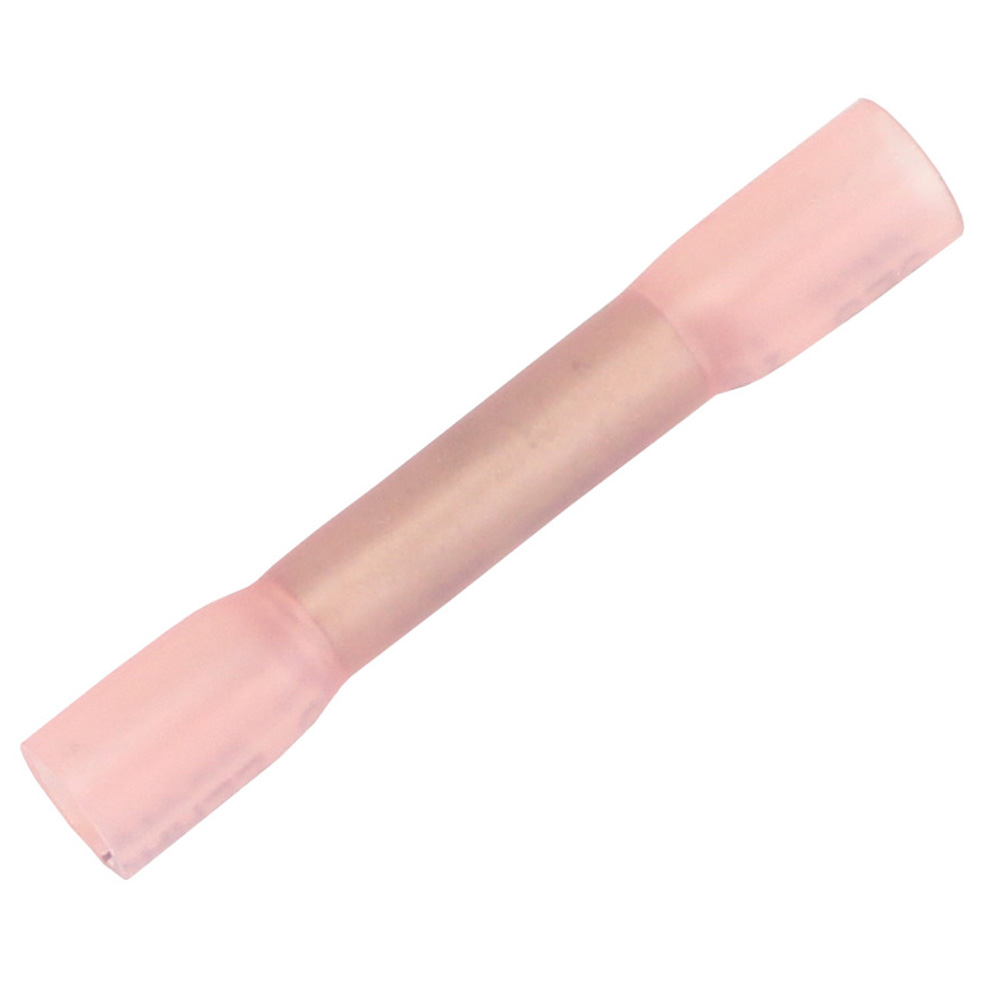

Pacer Performance TBSE18-100 Heat Shrink Butt Connectors 22-18 AWG 100 Pack

The Pacer Performance TBSE18-100 heat shrink butt connector set provides 100 professional-grade crimp connectors designed for secure wire-to-wire connections in automotive, marine, and general electrical applications. These 22-18 AWG butt splices feature heat-activated adhesive lining that creates environmentally sealed, waterproof connections when heated.

Key Features:

• Tinned copper construction for superior corrosion resistance and conductivity
• Heat-activated epoxy lining expands to seal and protect connections
• Rated for up to 600 volts
• Wide operating temperature range: -55°C to 125°C (-67°F to 257°F)
• Red insulation for easy wire gauge identification
• UL, CSA, and RoHS compliant

Specifications:

• Wire Range: 22-18 AWG
• Maximum wire insulation outer diameter: 0.19 inches
• Insulation Color: Red
• Quantity: 100 connectors per package

These heat shrink butt connectors offer impact resistance, easy installation, and long-term protection against moisture, corrosion, and environmental contaminants. Ideal for step-down splicing applications where higher-gauge wires connect to lower-gauge wires, or for joining multiple smaller wires to a single conductor.
