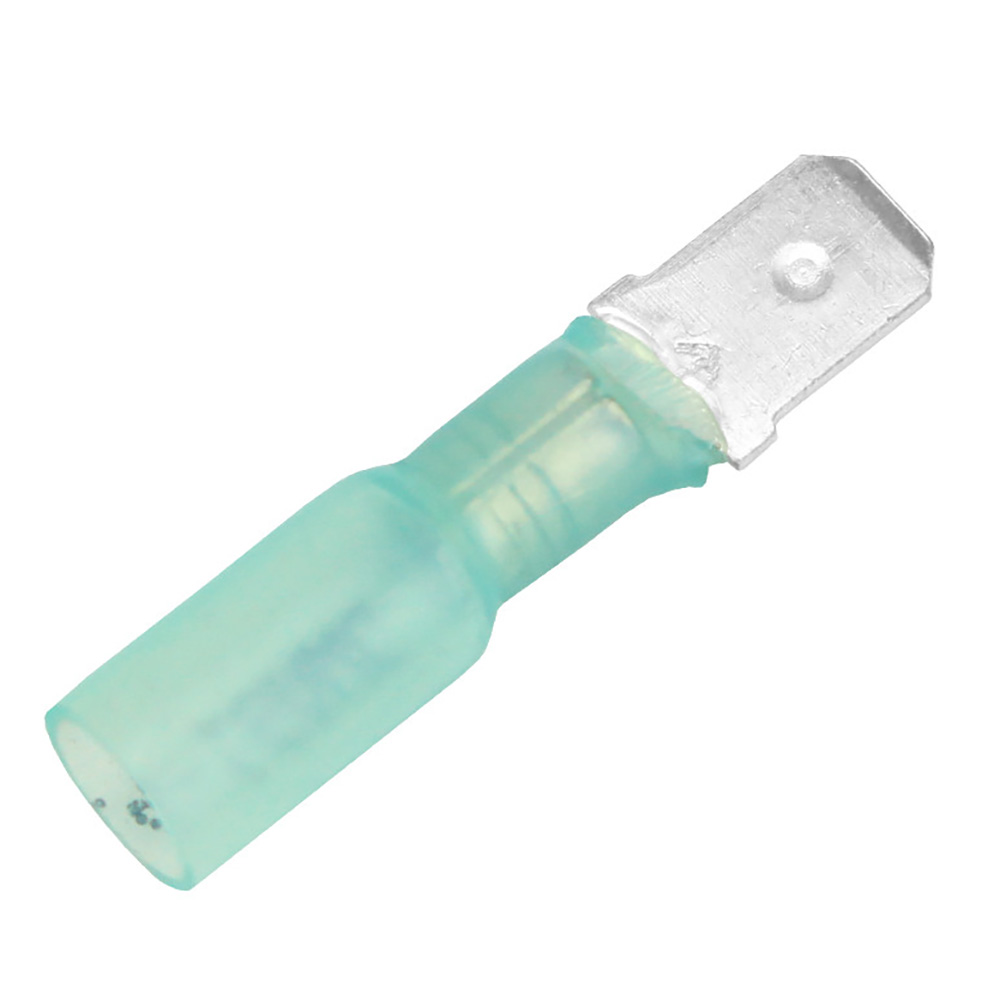

The Pacer Performance TDE14-250M-3 is a professional-grade heat shrink male disconnect terminal designed for reliable electrical connections in automotive, marine, and powersports applications. This 3-piece pack features 0.250-inch male disconnects rated for 16-14 AWG wire, combining the convenience of quick-connect terminals with the environmental protection of heat shrink tubing.
What Makes Heat Shrink Disconnects Superior:
Unlike standard insulated disconnects, heat shrink terminals create an environmentally sealed connection that protects against water intrusion, condensation, salt spray, and corrosion. The heat-activated shrink tubing conforms tightly around the wire and terminal, providing superior strain relief and vibration protection in demanding environments. These disconnects are designed to be connected and disconnected multiple times, making them ideal for serviceable electrical connections.
Key Features:
- Tinned copper construction resists corrosion and ensures excellent conductivity
- 3:1 shrink ratio provides tight seal and strain relief at 135°C activation temperature
- 600-volt rating with 900-V/mil dielectric strength for high-voltage applications
- Blue insulation color for easy wire gauge identification (16-14 AWG standard)
- Wide operating temperature range from -55°C to 125°C (-67°F to 257°F)
- 0.250-inch tab size fits standard automotive and marine electrical components
- Partially insulated design allows visual inspection of crimp quality
Installation:
Strip wire to appropriate length, crimp terminal securely using a quality crimp tool rated for insulated terminals, then apply heat evenly using a heat gun until the shrink tubing conforms completely to the wire and terminal. The transparent shrink tubing allows verification of proper crimp before final sealing.
Applications:
Ideal for automotive wiring harnesses, marine electrical systems, trailer wiring, RV electrical repairs, motorcycle electrical connections, and any application requiring weatherproof, serviceable electrical terminals. Perfect for headlight connections, tail light circuits, accessory wiring, and sensor connections exposed to harsh environments.
Specifications:
- Wire Gauge: 16-14 AWG
- Terminal Type: Male disconnect (blade)
- Tab Width: 0.250 inch (1/4 inch)
- Voltage Rating: 600V
- Temperature Range: -55°C to 125°C
- Shrink Ratio: 3:1 at 135°C
- Dielectric Strength: 900 V/mil
- Volume Resistivity: 10¹⁵ Ohm-cm³
- Insulation Color: Blue
- Quantity: 3 terminals per package
