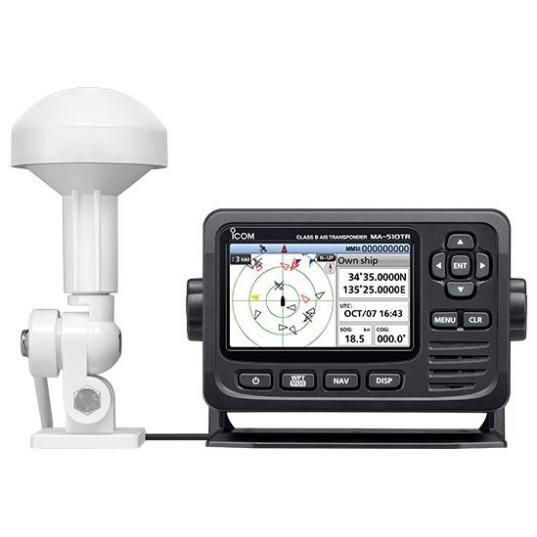

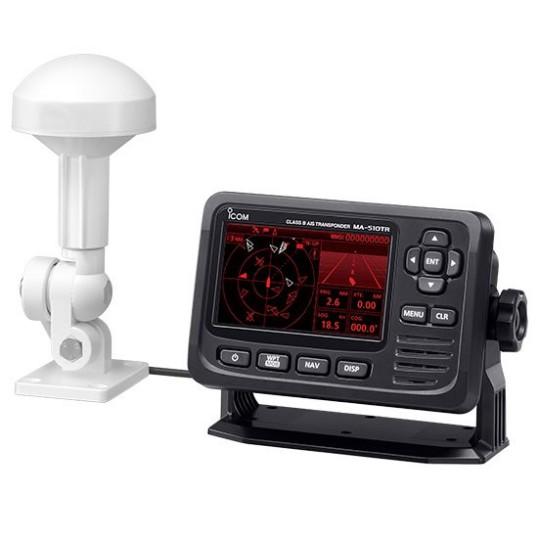

Icom MA510TR 13 Class B AIS Transponder with GPS and 4.3" Display

The Icom MA-510TR is a Class B AIS transponder that actively broadcasts your vessel's position to other AIS-equipped boats while simultaneously receiving both Class A and Class B AIS signals. This dual-channel receiver provides real-time vessel traffic information for enhanced navigation and collision avoidance on the water.

The transponder features a large 4.3-inch color TFT LCD display with backlighting, delivering clear vessel traffic information in a compact form factor that fits conveniently in most helm configurations. The built-in GPS navigation function allows you to navigate to waypoints or track AIS targets directly from the unit.

Key Features:

• Class B AIS transponder with 2W output power broadcasts your position to nearby vessels
• Dual-channel receiver monitors both Class A and Class B AIS signals simultaneously
• 4.3-inch color TFT LCD display with backlighting for day and night visibility
• Built-in GPS navigation guides users to waypoints or AIS targets
• NMEA 2000 and NMEA 0183 connectivity for integration with existing marine electronics
• Individual DSC (Digital Selective Calling) capability when connected to compatible VHF radio
• Silent mode temporarily disables AIS transmission while continuing to receive signals
• Collision alarm function alerts when vessels enter your CPA or TCPA range
• Anchor watch alarm notifies you if your vessel drifts while anchored
• Man Overboard (MOB) function sets MOB position as destination waypoint
• Multi-lingual interface supports English, French, Indonesian, Spanish, and Vietnamese
• USB Type-B Mini connectivity for configuration and updates
• User-programmable MMSI and vessel information

Technical Specifications:

• Frequency Range: 161.500 to 162.025 MHz
• Transmit Power: 2 Watts
• Power Supply: 12-24V DC
• Dimensions: 6.5" W × 4.3" H × 3.6" D (16.6 × 11 × 9.25 cm)
• Weight: 1.5 lbs (700g)
• Display: 4.3" color TFT LCD
• Data Connections: NMEA 2000, NMEA 0183, USB Type-B Mini

Package Includes:

• MA-510TR AIS transponder unit

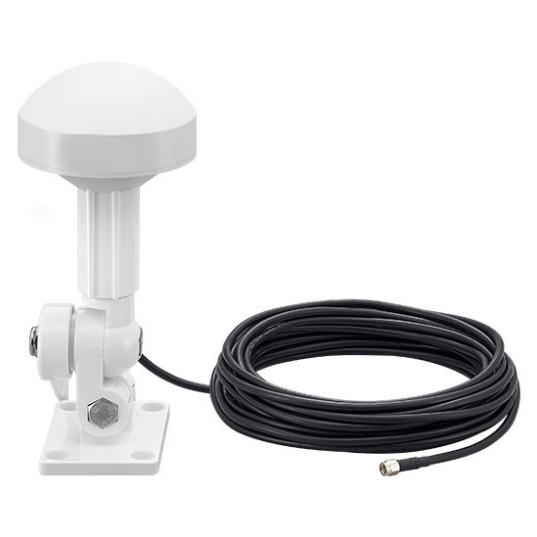

• GPS antenna with 32.8 ft (10M) cable
• DC power cable
• Mounting bracket kit
• Connectors
• Instruction manual

The MA-510TR is ideal for leisure, fishing, and cruising vessels that need reliable AIS transponder capability with an integrated display and advanced collision avoidance features.
