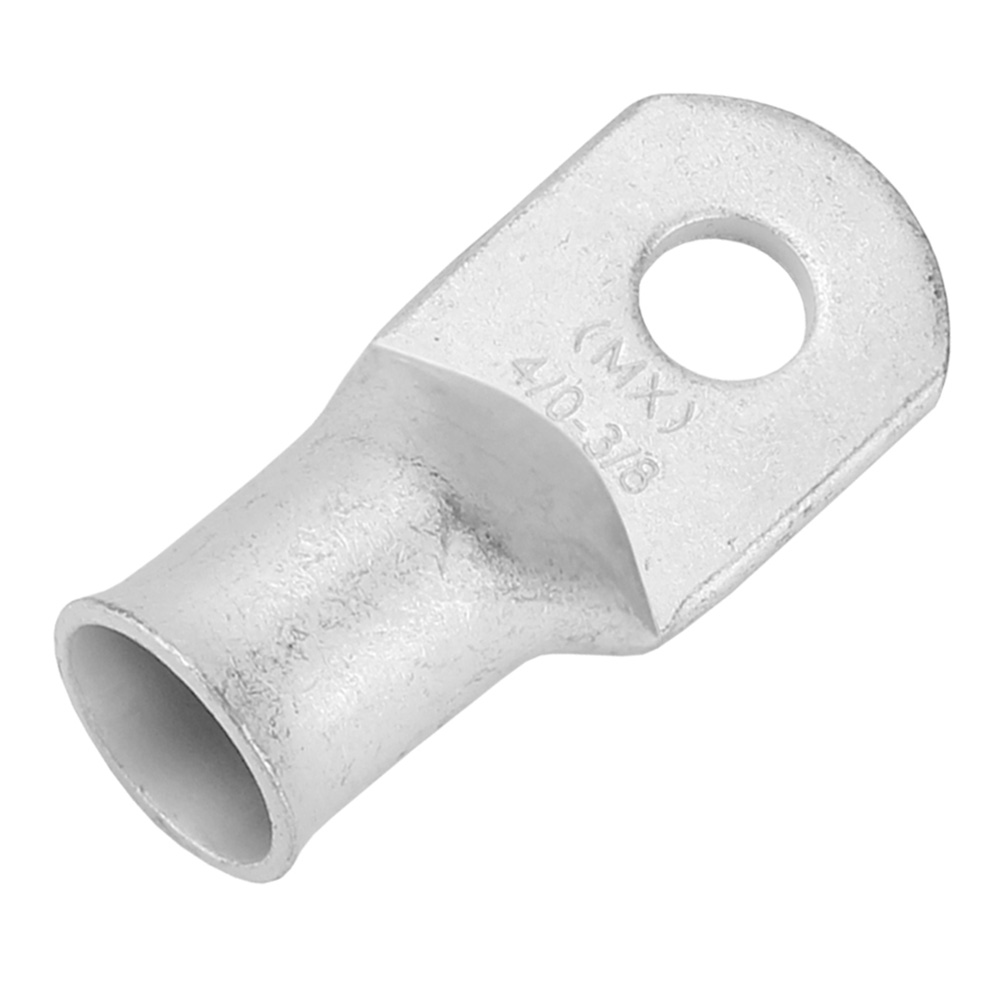

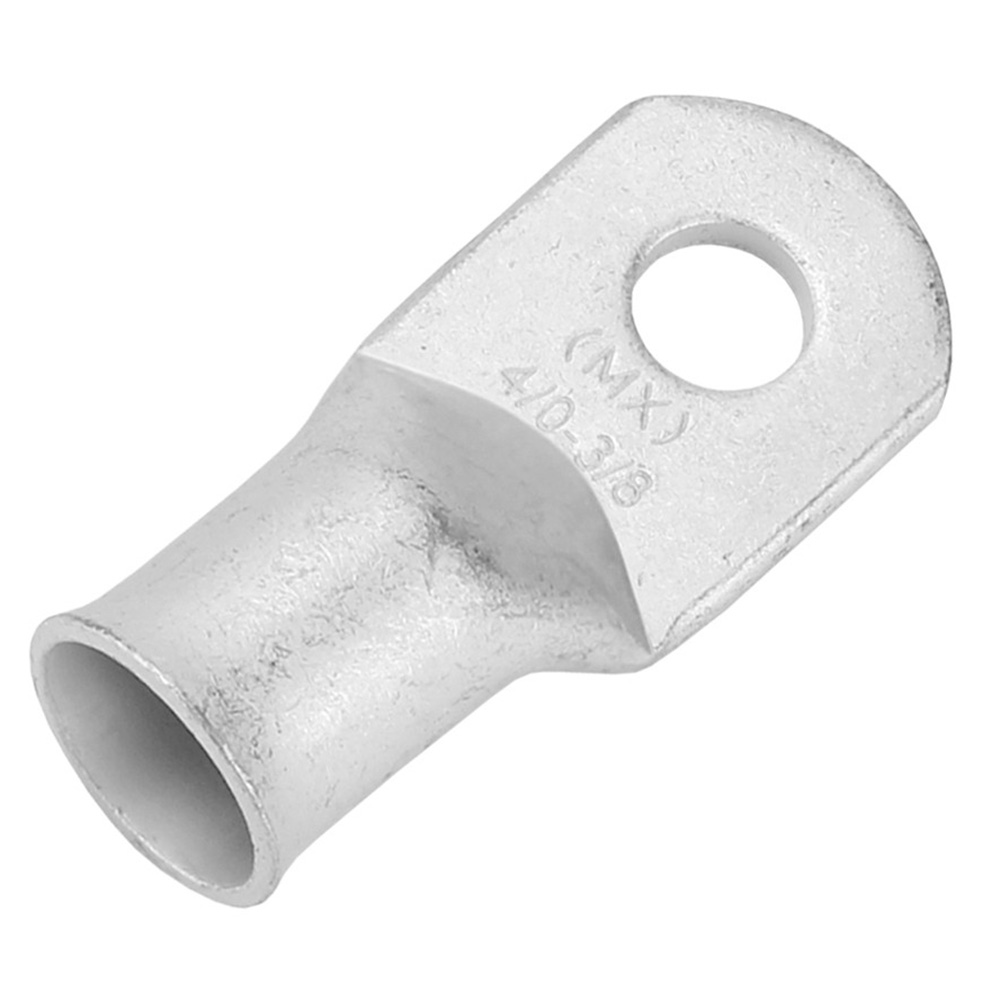

Pacer Performance TAE4/0-38-R-10 Tinned Copper Lug 4/0 AWG 3/8" Stud 10 Pack

The Pacer Performance tinned copper lug provides marine-grade electrical connections for heavy-duty 4/0 AWG applications. These closed-end lugs feature tin plating and seamless construction, making them ideal for harsh marine environments where corrosion resistance is critical.

Key Features:

• Manufactured from seamless tubes of 99.9% pure copper for maximum conductivity
• Tin-plated finish with no exposed seams prevents corrosion in marine applications
• Closed-end design allows for waterproof connections when used with epoxy-lined heat shrink
• Rated for 600V applications with UL and CSA approval
• Cable size and stud hole clearly stamped on pad for easy identification
• Larger contact pad area ensures superior electrical connection
• Controlled flare design facilitates easy cable insertion during installation
• Can be crimped or soldered depending on application requirements
• Tight barrel-to-pad transition maximizes usable barrel length

Specifications:

• Wire Gauge: 4/0 AWG (designed for stranded copper wire)
• Stud Size: 3/8 inch
• Overall Length: 2.344 inches
• Width: 0.984 inches
• Clearance: 0.547 inches
• Quantity: 10 lugs per package

Certifications and Compliance:

• E.T.P. (Electrolytic Tough Pitch) CDA-110 copper
• ASTM-B-152 copper rated at 100% conductivity
• UL and CSA approved for safety compliance
• RoHS compliant for environmental standards
• Exceeds SAE conductivity standards J163 and J1811

Installation is straightforward: strip the wire to the proper length, slide the lug over the exposed conductor until the insulation meets the lug edge, then crimp using the appropriate tool. For maximum durability and waterproof performance, apply epoxy-lined heat shrink tubing over the connection.
