Trident Marine 305-0566-FT 5/16" B1-15 Barrier Lined Fuel Hose - Sold by Foot

The Trident Marine 305-0566-FT is a premium Type B1-15 low permeation marine fuel hose suitable for both gasoline (including ethanol blends up to E85) and diesel (including biodiesel blends up to 100%). This 5/16" fuel line is sold by the foot, allowing you to purchase exactly the length you need for your outboard motor fuel system.

Advanced Barrier Technology:

This hose features Trident's unique fluoroplastic "Barrier Liner" on the inside surface of the tube, preventing fuel from making direct contact with the rubber body. This design greatly reduces fuel permeation and prevents ethanol degradation of the rubber tube, which can cause small pieces of rubber to reach and damage the engine.

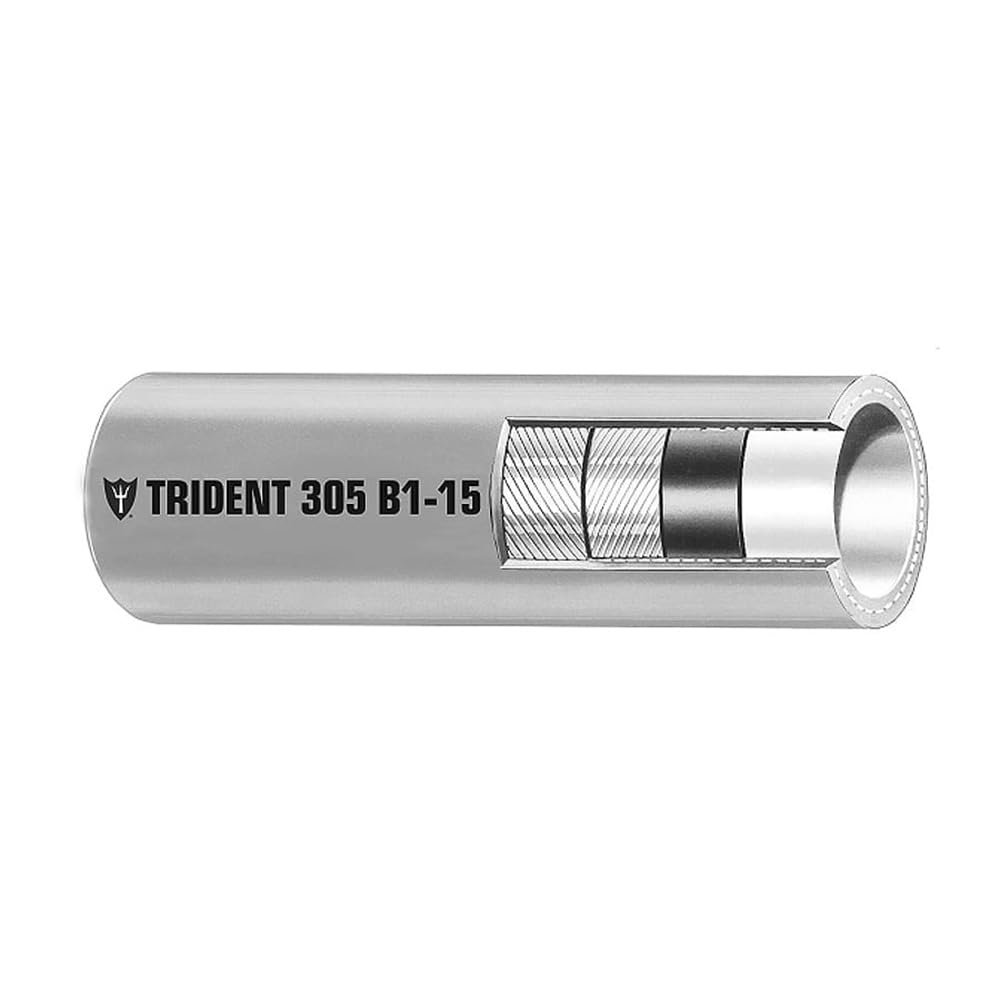

Construction:

• Tube: Fluoroplastic internal barrier
• Cover: Gray CPE rubber
• Reinforcement: 2-spiral polyester plies
• Temperature range: -20°F to 212°F (-28°C to 100°C)

Specifications:

• Inner diameter: 5/16" (7.92mm)
• Outer diameter: 0.500" (12.7mm)
• Working pressure: 35 PSI (0.24 MPa)
• Burst pressure: 175 PSI (1.21 MPa)
• Minimum bend radius: 2.5" (63.5mm)
• Weight: 7.8 lbs per 100 feet

Certifications & Compliance:

EPA Certified and CARB Executive Order for low permeation Type B1-15. Exceeds ABYC H-24, SAE J1527, ISO 8469 B1, and USCG Type B1-15 standards. NMMA type accepted and CE certified.

This marine fuel hose provides extraordinary resistance to fuel permeation, aging, heat, cold, and ozone, along with excellent rope-like bendability and fitting retention. Ideal for fuel distribution, return, vent, and transfer applications in outboard motors and marine engines.
