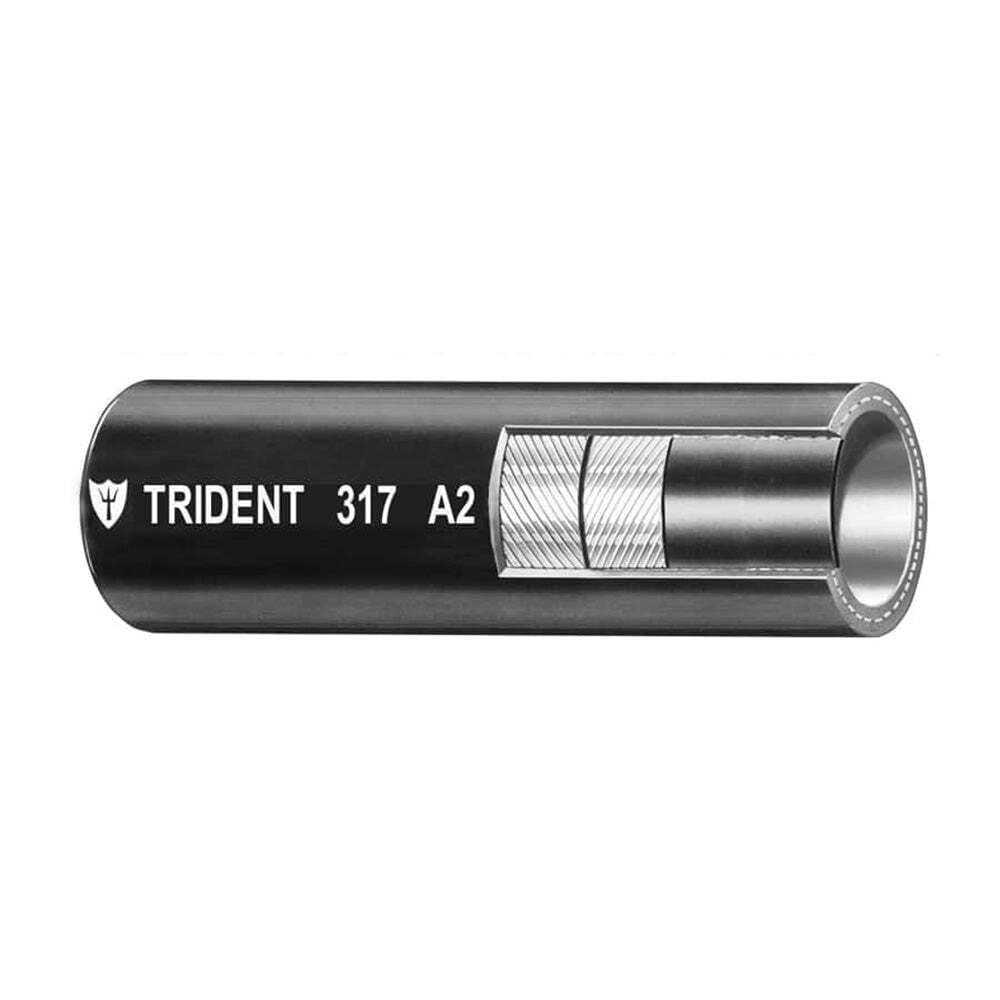

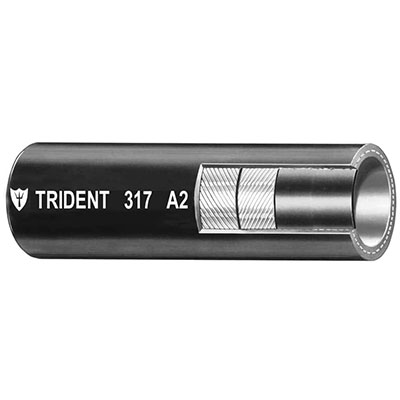

Trident Marine 317-0586 Type A2 Fuel and Vent Line Hose 5/8" x 50' Black

The Trident Marine 317-0586 is a professional-grade Type A2 fuel and vent line hose designed for demanding marine applications. This 5/8" hose is suitable for gasoline vent applications (including ethanol blends) and diesel (including bio-diesel blends), making it a versatile solution for various marine fuel systems.

Key Features:

• Built with fuel, fire, and age resistant formulation providing extraordinary resistance to aging, fire, heat, cold, and ozone
• Exceeds ABYC H-24 & H-33, SAE J1527, ISO 7840, and USCG Type A2 standards
• NMMA Type Accepted and CE certified for safety and reliability
• Excellent bendability for easy installation and maneuverability in tight spaces

Construction Specifications:

• Tube: NBR with nylon internal barrier
• Cover: NBR/PVC blend
• Reinforcement: Polyester 2 spiral
• Temperature Range: -20°F to 212°F (-28°C to 100°C)
• Inner Diameter: 5/8" (15.9mm)
• Outer Diameter: 0.960" (24.4mm)
• Working Pressure: 50 psi (0.34 mpa)
• Burst Pressure: 200 psi (1.38 mpa)

This hose comes in a convenient 50-foot boxed length, perfect for marine fuel system installations and repairs. The Series 317 is trusted by marine professionals for its durability and compliance with stringent marine safety standards.
