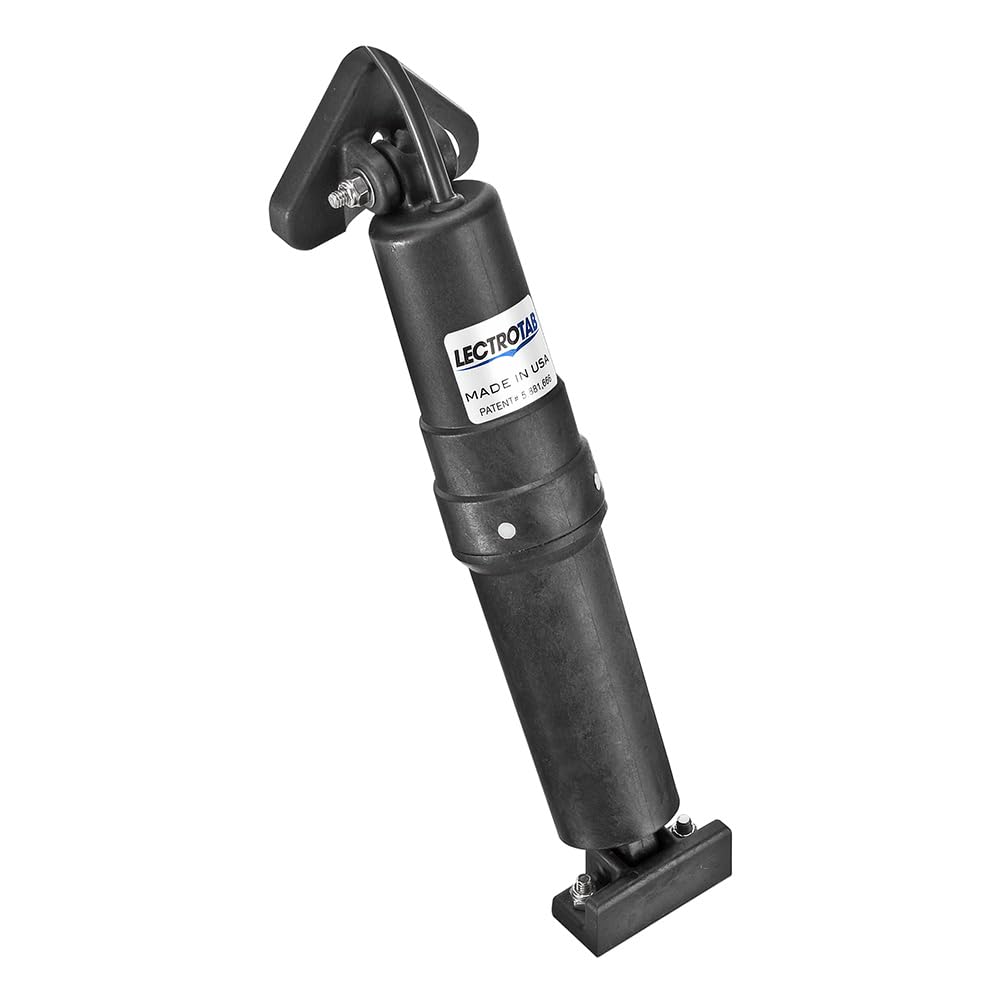

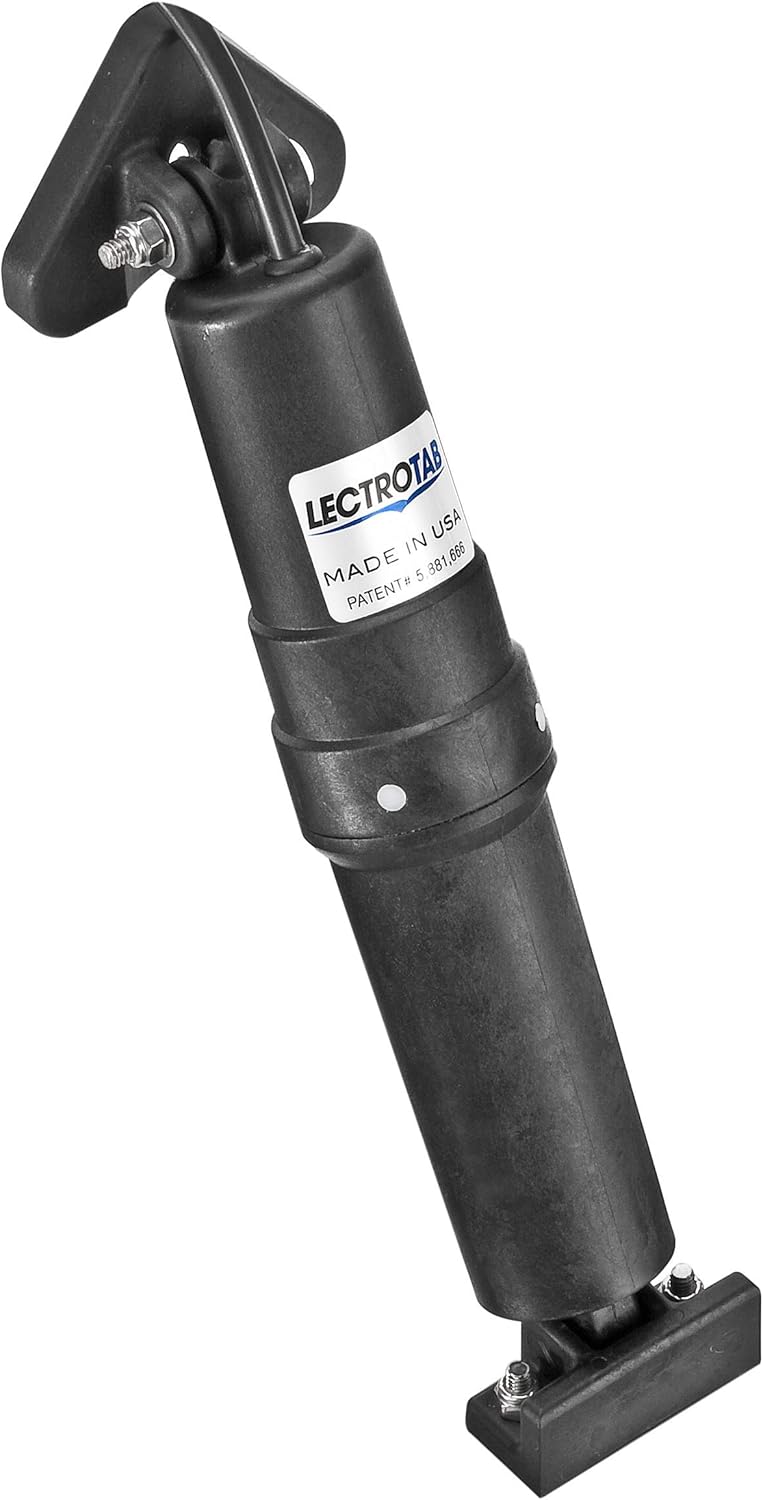

Lectrotab A-BK-13 12V Trim Tab Actuator 23' Cable 2.25" Stroke

The Lectrotab A-BK-13 is a precision-engineered 12V trim tab actuator designed for boats up to approximately 23 feet. This electromechanical actuator features a maintenance-free, non-hydraulic design that eliminates the risk of oil leaks while providing reliable, quiet operation and precise tab positioning.

Key Features:

• Non-hydraulic design with no oil to leak or contaminate marine environments
• Non-metallic permanently sealed housing prevents corrosion and UV deterioration
• Internal brake system prevents unwanted tab movement when underway or backing down
• Upper ram seal location protected from barnacle growth and fouling damage
• Internal pressure equalization system ensures reliable operation
• Fully load tested to push 1000 lbs of force for maximum lift performance
• Quiet operation for enhanced boating experience
• Totally self-contained design with no components required inside the boat
• Compatible as upgrade for most popular hydraulic and electromechanical systems

Technical Specifications:

• Voltage: 12V DC
• Stroke Length: 2.25" (57mm)
• Cable Length: 23' (7m)
• Actuator Vertical Height: 11.875" (302mm)
• Upper Mounting Bracket: Standard included
• Lower Mounting Bracket: Standard included
• Push Force: 1000 lbs tested

The actuator assembly includes an integrated transom mounting bracket for straightforward installation. All external components are constructed from non-metallic materials that won't corrode in saltwater environments or deteriorate from sun exposure, ensuring long-term durability and reliable performance.

Sold individually.
