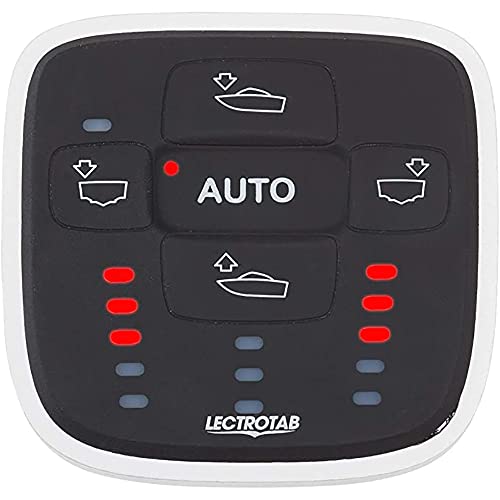

Lectrotab ALC-1 Automatic Leveling Control for Single Actuator Trim Tabs

The Lectrotab ALC-1 Automatic Leveling Control is a microprocessor-based trim tab controller that automatically maintains a level boat as conditions change. As wind shifts, water conditions vary, or passengers move about, the ALC-1 continuously adjusts your trim tabs to correct both roll (side to side) and pitch (fore to aft) for a more comfortable ride and improved fuel economy.

Key Features:

• Microprocessor-based automatic leveling with LED tab position indicators
• Built-in GPS receiver eliminates need for external GPS antenna or network connection
• Intelligent turn detection prevents unwanted corrections during maneuvering
• Automatically adapts to changing sea conditions for optimal performance
• Auto-dimming LED display adjusts brightness based on ambient light
• Automatic trim tab retraction when boat drops off plane or via optional key switch
• Direct actuator connection to display panel—no external power module required
• Completely sealed and waterproof construction (IP68 rating)
• UV-protected housing resists deterioration from sunlight exposure
• Designed for planing and semi-displacement hulls 20 feet and larger

Technical Specifications:

• Display Color: Black
• Configuration: Single actuator per tab plate
• Display Dimensions: 3.15" W x 3.07" H (80 x 77 mm)
• Panel Cutout Required: 2" diameter (50 mm)
• Operating Voltage: 12V or 24V DC
• Waterproof Rating: IP68

The ALC-1 provides set-it-and-forget-it convenience, automatically maintaining optimal boat attitude for enhanced comfort, performance, and efficiency. Sold individually.
