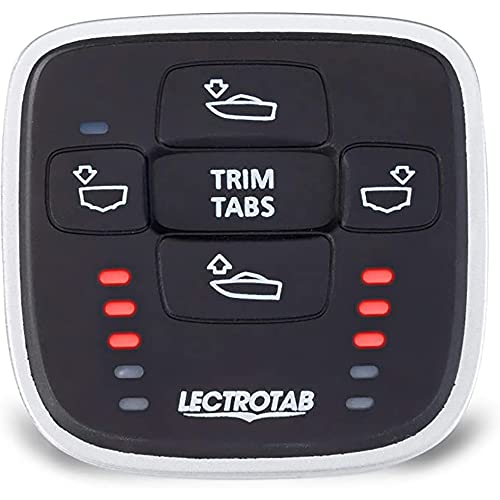

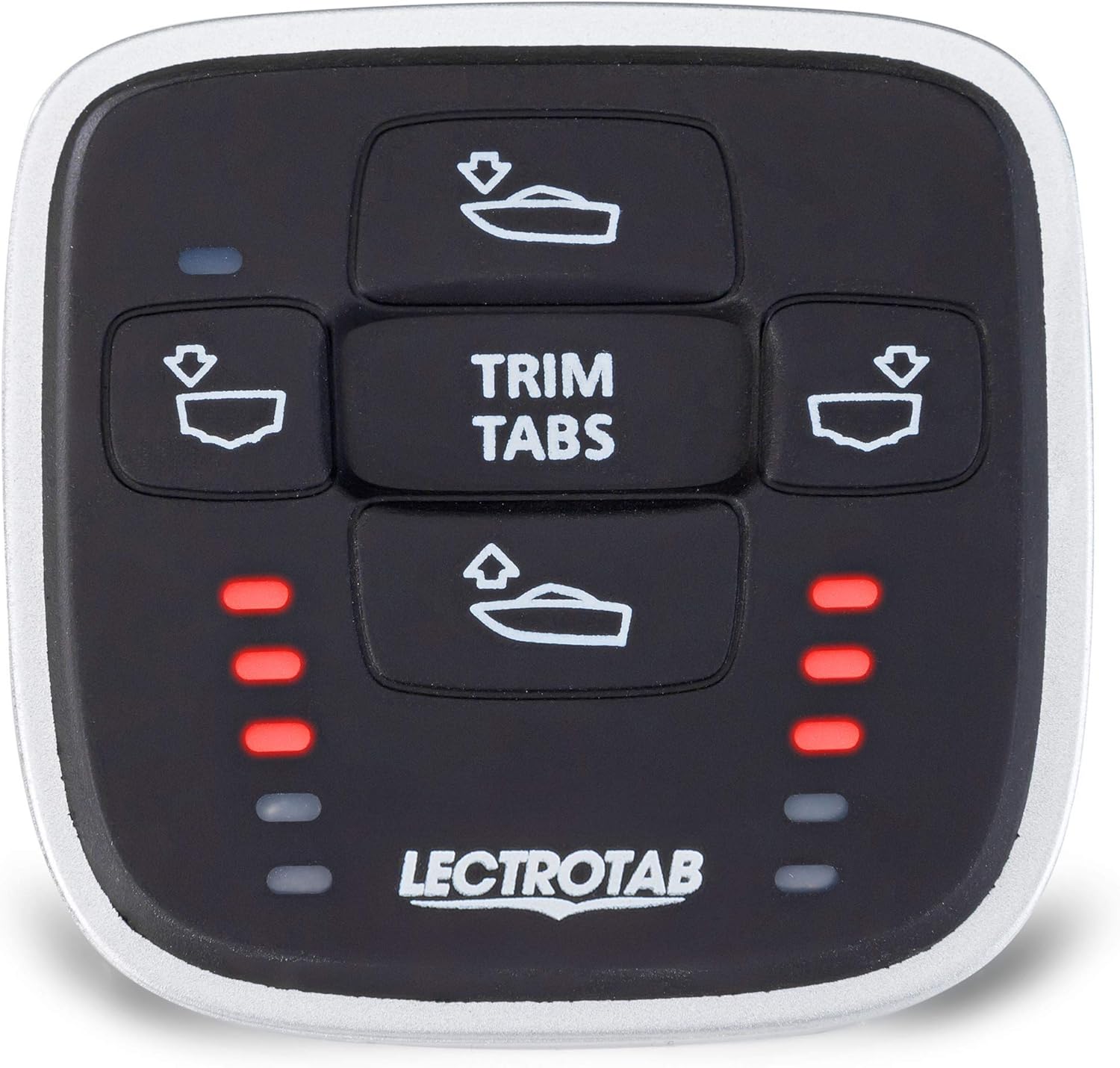

Lectrotab MLC-1 Manual Leveling Control Single Actuator Trim Tab System

The Lectrotab MLC-1 is a microprocessor-based trim tab control designed for single actuator systems, allowing you to move both tabs simultaneously with the touch of a single button. This intelligent control panel features LED tab position indicators that automatically adjust brightness—dimming in darkness and brightening in sunlight for optimal visibility in all conditions.

Key Features:

• Single-button operation moves both trim tabs up or down simultaneously for simplified control
• LED tab position indicators with automatic brightness adjustment
• Microprocessor-based control with automatic tab retraction and calibration when key or accessory switch is turned off
• Memory function automatically returns to last tab position when ignition is cycled
• Sleek rubber overlay with modern bezel design that resists UV deterioration
• Completely sealed and waterproof construction for marine durability
• Compatible with both 12V and 24V electrical systems
• No external power module required for single actuator per tab configurations
• Easy upgrade from traditional rocker switch style controls

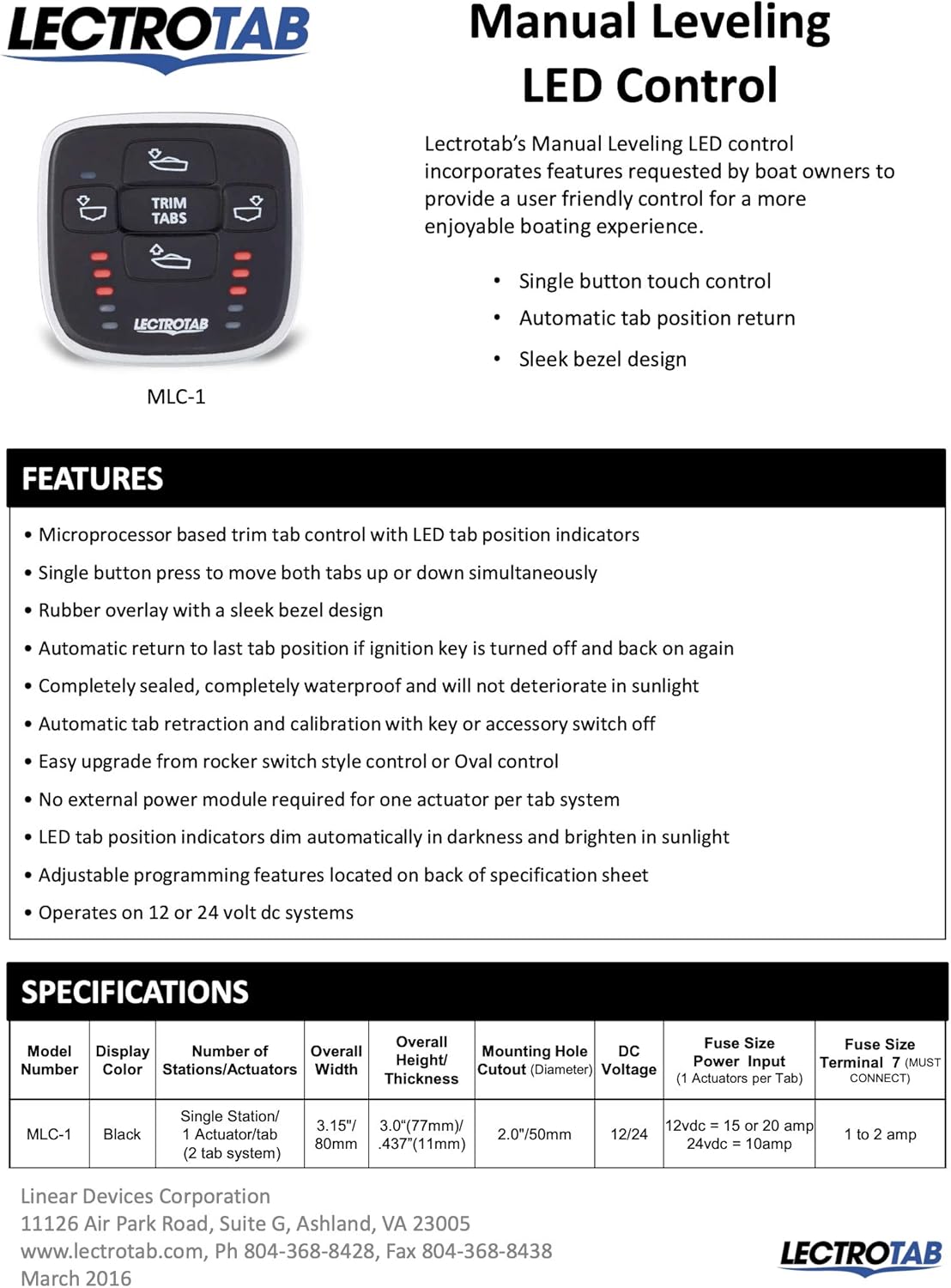

Technical Specifications:

• Display Color: Black
• Actuators per Tab Plate: One (1)
• Panel Dimensions: 3.15" W x 3.07" H (80 x 77 mm)
• Mounting Hole Cutout: 2" (50 mm) diameter
• Operating Voltage: 12V or 24V DC

This control panel provides a user-friendly upgrade that enhances your boating experience with precise trim tab management and modern functionality.
