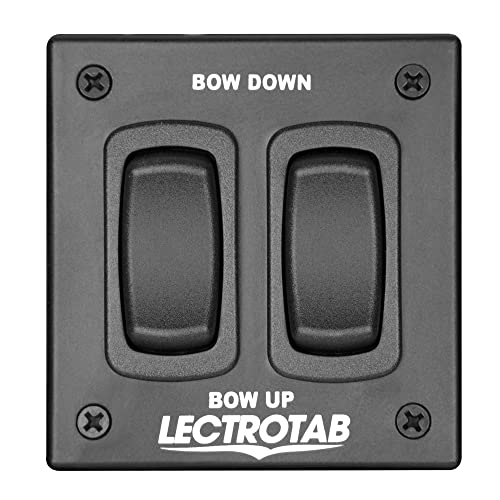

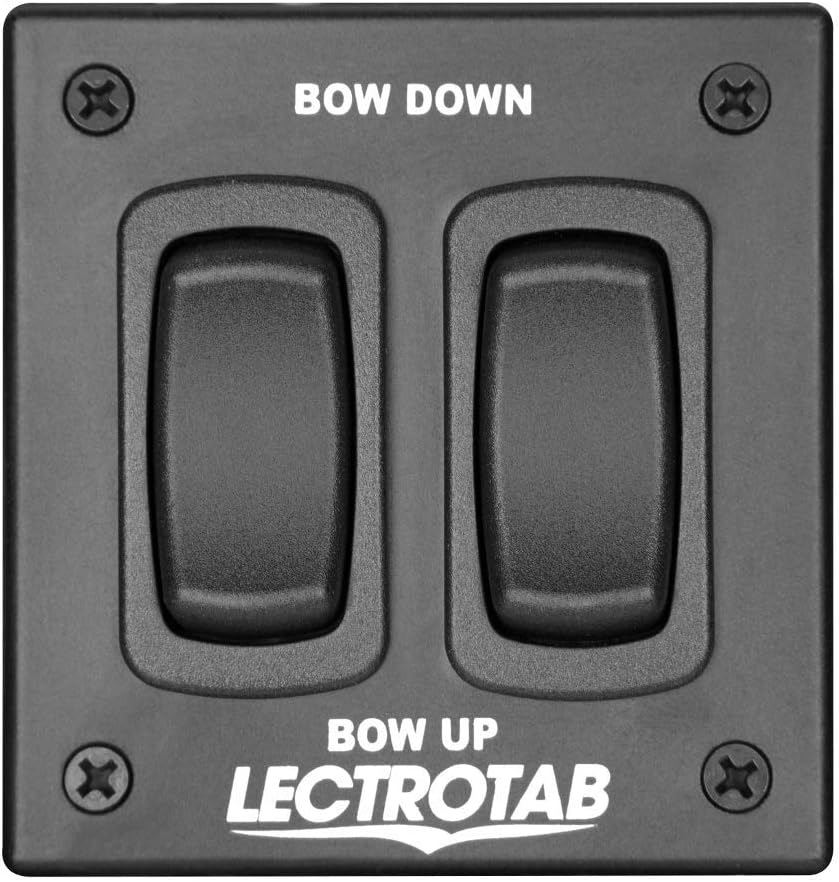

Lectrotab SAF-SC Flat Rocker Switch for Trim Tab Control

The Lectrotab SAF-SC flat rocker switch is a marine-grade control switch designed for precise trim tab operation with enhanced durability and water resistance. This self-contained switch features improved gasket sealing to prevent water intrusion and a recessed rocker design that protects against accidental breakage in harsh marine environments.

Key Features:

• Instant stop circuit prevents actuator over-run when switches are released for precise tab control
• Enhanced gasket sealing designed to prevent water entry in marine applications
• Recessed rocker design protects against physical damage and accidental activation
• Self-contained design eliminates the need for an additional control box
• Meets MIL-STD-202F specification for salt spray resistance

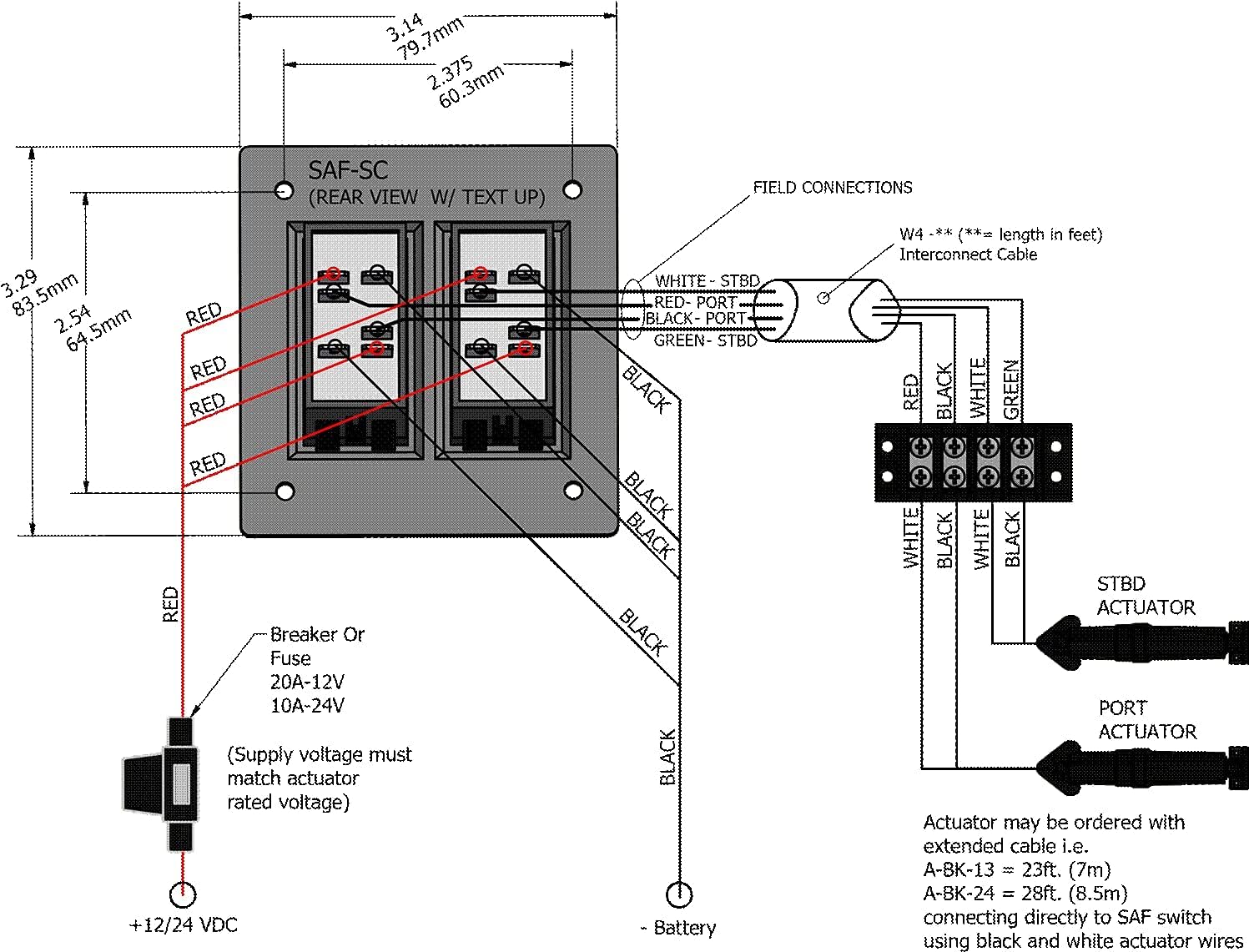

• Operates up to 2 actuators per tab on 12V systems or 4 actuators per tab on 24V systems

Technical Specifications:

• Operating Voltage: 12V or 24V DC
• Display Color: Black
• Overall Dimensions: 3.125" W x 3.25" H (79.4 x 82.5 mm)
• Mounting Cutout Required: 2.25" H x 2" W (57.5 x 50 mm)
• Actuator Capacity: 2 per tab plate (12V) or 4 per tab plate (24V)

This switch is ideal for upgrading existing trim tab systems or as a replacement control for Lectrotab actuator systems. Sold individually.
