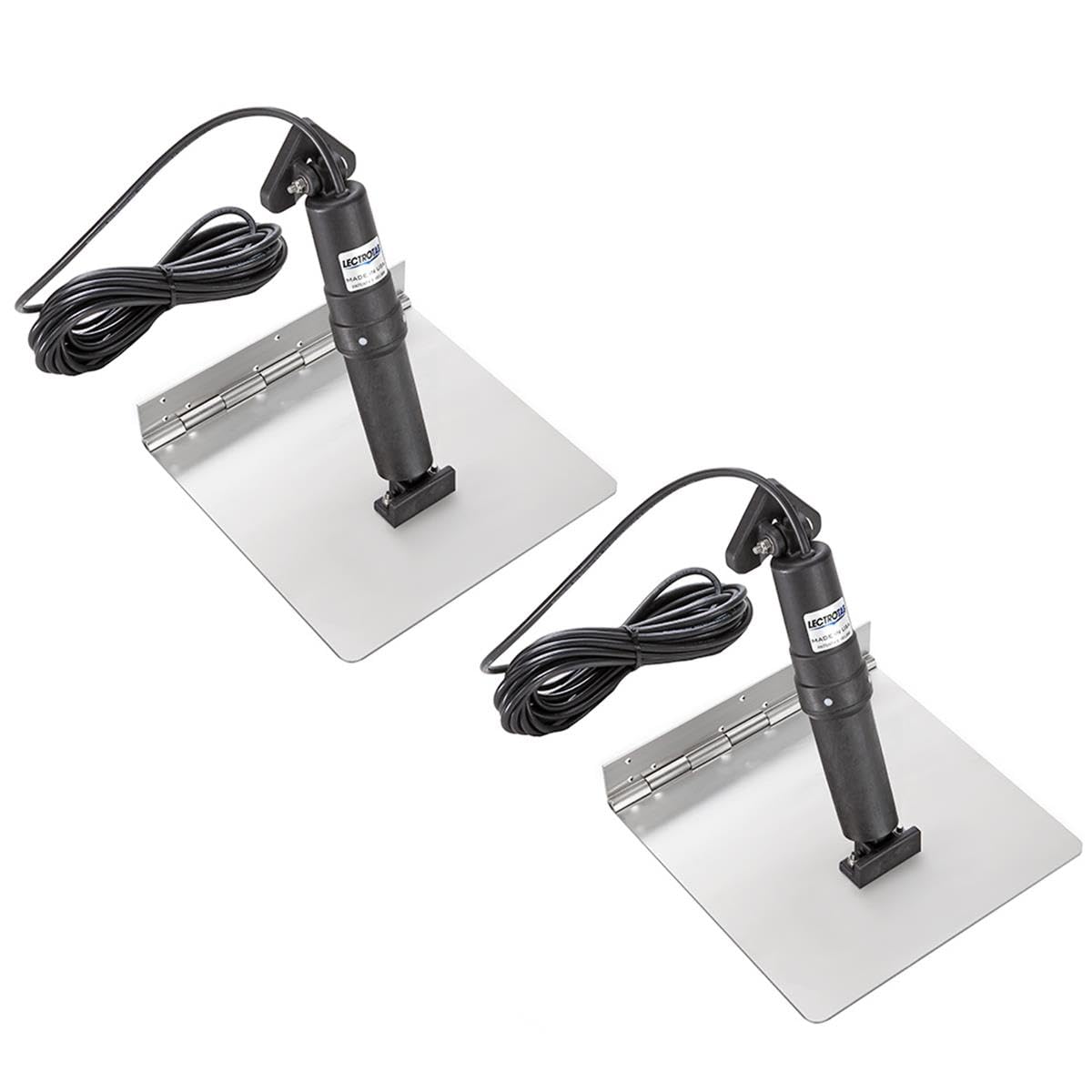

Lectrotab XKA12X12 12x12 Stainless Steel Electric Trim Tab Kit

The Lectrotab XKA12X12 is a premium stainless steel electric trim tab system designed for boats 18 to 32 feet in length. This complete kit features a maintenance-free, non-hydraulic design that delivers quiet operation and precise tab positioning without the risk of hydraulic fluid leaks.

Superior Stainless Steel Construction:

Each 12" x 12" trim tab is fabricated from 12-gauge, 304 stainless steel with a continuous rolled and pinned hinge that provides exceptional strength and eliminates potential weld failure points. This robust construction ensures long-lasting durability in harsh marine environments.

Advanced Actuator Technology:

The precision-engineered actuators are housed in permanently sealed, non-metallic housings that cannot corrode and will not deteriorate from sun or underwater exposure. Each actuator is factory load-tested to push 1000 lbs of force and features an internal brake system that prevents unwanted tab movement when under way or backing down. The upper ram seal location is protected from damage caused by fouled rams or barnacle growth, while an internal pressure equalization system ensures reliable operation.

Key Features:

• Continuous rolled and pinned hinge eliminates welding for maximum strength
• Maintenance-free, non-hydraulic design with no oil to leak
• Quiet operation with precise tab positioning
• Internal brake system prevents unwanted tab movement
• Non-metallic actuator housing resists corrosion and UV damage
• Fully self-contained design for easy installation
• No interior components required
• 2.25" actuator stroke length for optimal control
• 23-foot actuator cables provide installation flexibility

Technical Specifications:

• Trim Tab Dimensions: 12" x 12" (30 x 30 cm)
• Recommended Boat Length: 18' to 32' (5.5 to 9.5 M)
• Material: 12-gauge, 304 stainless steel
• Voltage: 12V DC
• Actuator Stroke: 2.25" (57 mm)
• Cable Length: 23' (7 M)
• Actuator Vertical Height: 11.875" (302 mm)

Kit Includes:

• Two (2) 12" x 12" stainless steel trim tabs
• Two (2) electric actuators with 23' cables
• Installation instruction manual

Note: Control switch sold separately.
