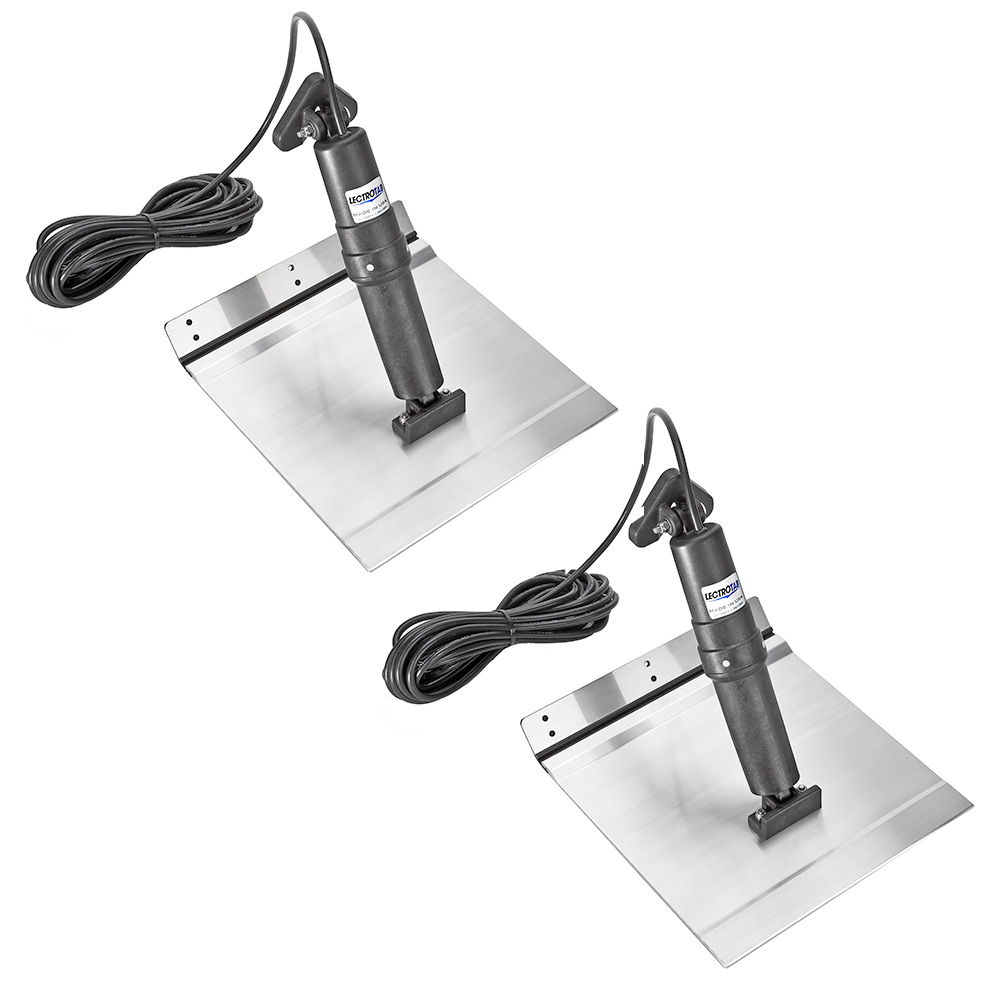

Lectrotab XKA12X18A 12x18 Aluminum Alloy Trim Tab Kit 12V

The Lectrotab XKA12X18A is a complete aluminum alloy trim tab system featuring 12" x 18" tabs designed specifically for aluminum hulled boats, though economical for any vessel. These precision-engineered tabs deliver quiet, maintenance-free operation without the hassle of hydraulic systems.

Key Features:

• Marine grade 6005-T5 aluminum alloy tabs sealed with corrosion-resistant epoxy coating
• Ultra-durable "no-break" polypropylene hinge tested over 300,000 cycles to 90° without failure
• Non-hydraulic electric actuators eliminate oil leaks and maintenance concerns
• Non-metallic permanently sealed housing with all components mounted externally
• Internal brake system prevents unwanted tab movement when underway or in reverse
• Upper ram seal location protected from damage by fouling or barnacle growth
• Internal pressure equalization system for reliable operation
• Fully load tested actuators push 1000 lbs of force for maximum lift

Technical Specifications:

• Trim tab dimensions: 12" x 18" (30 x 46 cm)
• Recommended boat length: 20' to 40' (6 to 12 meters)
• Actuator voltage: 12V DC
• Actuator stroke length: 2.25" (57 mm)
• Actuator cable length: 23' (7 meters)
• Actuator vertical height: 11.875" (302 mm)
• Strength equivalent to 10 gauge stainless steel

What's Included:

• Two (2) aluminum alloy trim tabs
• Two (2) electric actuators with 23' cables
• Instruction manual

Note: Control switch sold separately. The self-contained design requires no internal boat installation, making setup straightforward and eliminating through-hull penetrations.
