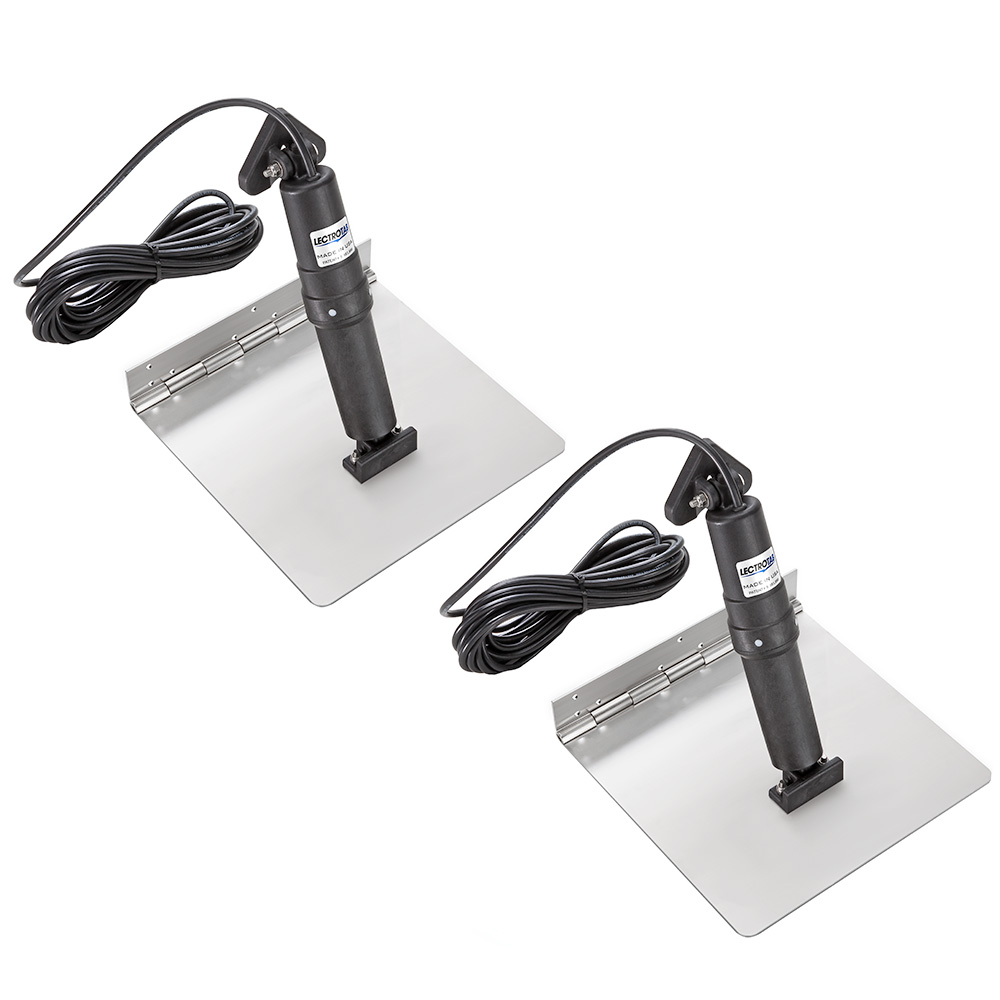

Lectrotab XKA12X24 12x24 Stainless Steel Electric Trim Tab Kit

The Lectrotab XKA12X24 is a premium electric trim tab system designed for boats 28 to 48 feet in length. This complete kit features 12" x 24" stainless steel tabs with advanced electric actuators that deliver reliable performance without the maintenance concerns of hydraulic systems.

Superior Stainless Steel Construction:

Each trim tab is fabricated from 12-gauge 304 stainless steel with a continuous rolled and pinned hinge design. This engineering approach provides exceptional strength while eliminating potential weak points from welded connections. The robust construction ensures long-lasting durability in harsh marine environments.

Advanced Electric Actuator Technology:

The precision-engineered 12V electric actuators offer significant advantages over traditional hydraulic systems. With no hydraulic oil to leak or maintain, these self-contained units provide worry-free operation. Each actuator is factory load-tested to push 1,000 pounds of force and features a 2.25" stroke length for precise tab positioning. The non-metallic permanently sealed housing resists corrosion and requires zero internal boat installation.

Key Features:

• Continuous rolled and pinned hinge eliminates welding and enhances structural integrity
• Internal brake system prevents unwanted tab movement when underway or in reverse
• Upper ram seal location protected from barnacle growth and fouling damage
• Internal pressure equalization system for reliable operation
• Whisper-quiet operation for enhanced boating comfort
• Corrosion-resistant non-metallic actuator housing withstands UV exposure and submersion
• Maintenance-free design with no hydraulic fluid to monitor or replace

Technical Specifications:

• Trim Tab Dimensions: 12" x 24" (30 x 61 cm)
• Recommended Boat Length: 28' to 48' (8.5 to 14.5 m)
• Tab Material: 12-gauge 304 stainless steel
• Actuator Voltage: 12V DC
• Actuator Stroke: 2.25" (57 mm)
• Cable Length: 23 feet (7 m)
• Actuator Vertical Height: 11.875" (302 mm)
• Maximum Force: 1,000 lbs per actuator

Kit Includes:

• Two (2) stainless steel trim tabs
• Two (2) electric actuators with 23-foot cables
• Installation manual with detailed instructions

Note: Control switch sold separately. All necessary mounting hardware included for transom installation.
