Lectrotab XKAF12X12A 12x12 Aluminum Alloy Trim Tab Kit with Rocker Switch

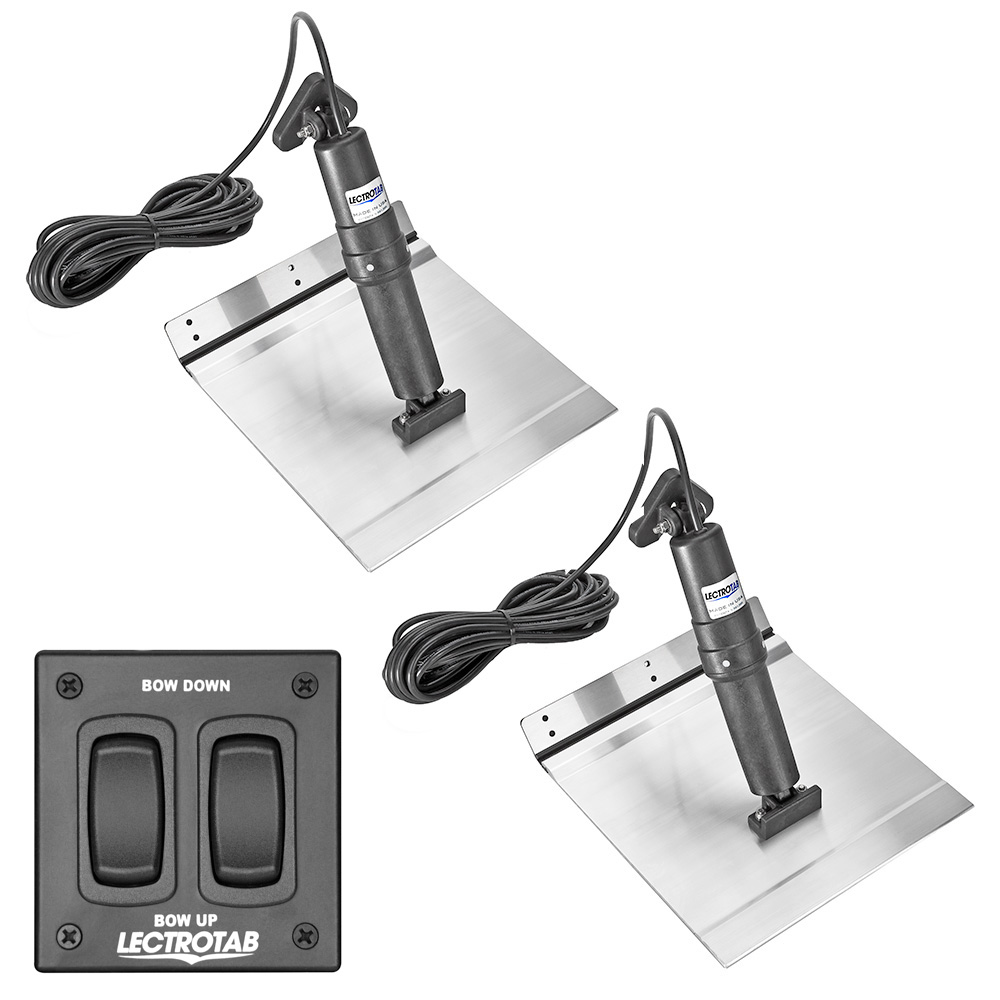

The Lectrotab XKAF12X12A is a complete aluminum alloy trim tab system designed specifically for aluminum hulled boats while providing an economical solution for all boat types. This kit includes two 12" x 12" marine-grade 6005-T5 aluminum alloy trim tabs, two precision-engineered electric actuators, and a flat rocker switch for convenient control.

Each trim tab features an extremely strong "no-break" polypropylene hinge that has been rigorously tested over 300,000 cycles to a 90° bend without failure, providing equivalent strength to 10-gauge stainless steel. All tabs are sealed with a corrosion-resistant epoxy coating for long-lasting durability in harsh marine environments.

Key Features:

• Non-hydraulic, maintenance-free design with no oil to leak
• Quiet operation with precision tab positioning and maximum lift force
• Fully self-contained actuators in non-metallic permanently sealed housings
• Internal brake system prevents unwanted tab movement when underway or backing down
• Upper ram seal location protected from damage due to fouled ram or barnacle growth
• Internal pressure equalization system for reliable performance
• Actuators fully load tested to push 1,000 lbs of force
• Non-metallic external structure that cannot corrode or deteriorate in sun or underwater
• Improved flat rocker switch with enhanced sealing and recessed design to prevent breaking
• Instant stop circuit prevents actuator over-run when switches are released

Technical Specifications:

• Trim Tab Size: 12" x 12" (30 x 30 cm)
• Suitable for Boat Length: 18' to 32' (5.5 to 9.5 m)
• Material: Marine-grade 6005-T5 Aluminum Alloy
• Actuator Voltage: 12V DC
• Actuator Stroke Length: 2.25" (57 mm)
• Actuator Cable Length: 23' (7 m)
• Actuator Vertical Height: 11.875" (302 mm)
• Rocker Switch Dimensions: 3.125" x 3.25" (79.4 x 82.5 mm)
• Rocker Switch Cutout: 2.25" x 2" (57.5 x 50 mm)
• Rocker Switch Operating Voltage: 12 or 24V

Kit Includes:

• Two (2) aluminum alloy trim tabs
• Two (2) electric actuators with 23' cables
• One (1) flat rocker switch
• Instruction manual

No components need to be installed inside the boat, and the actuator incorporates either a standard or low-profile transom mounting bracket for flexible installation options.
