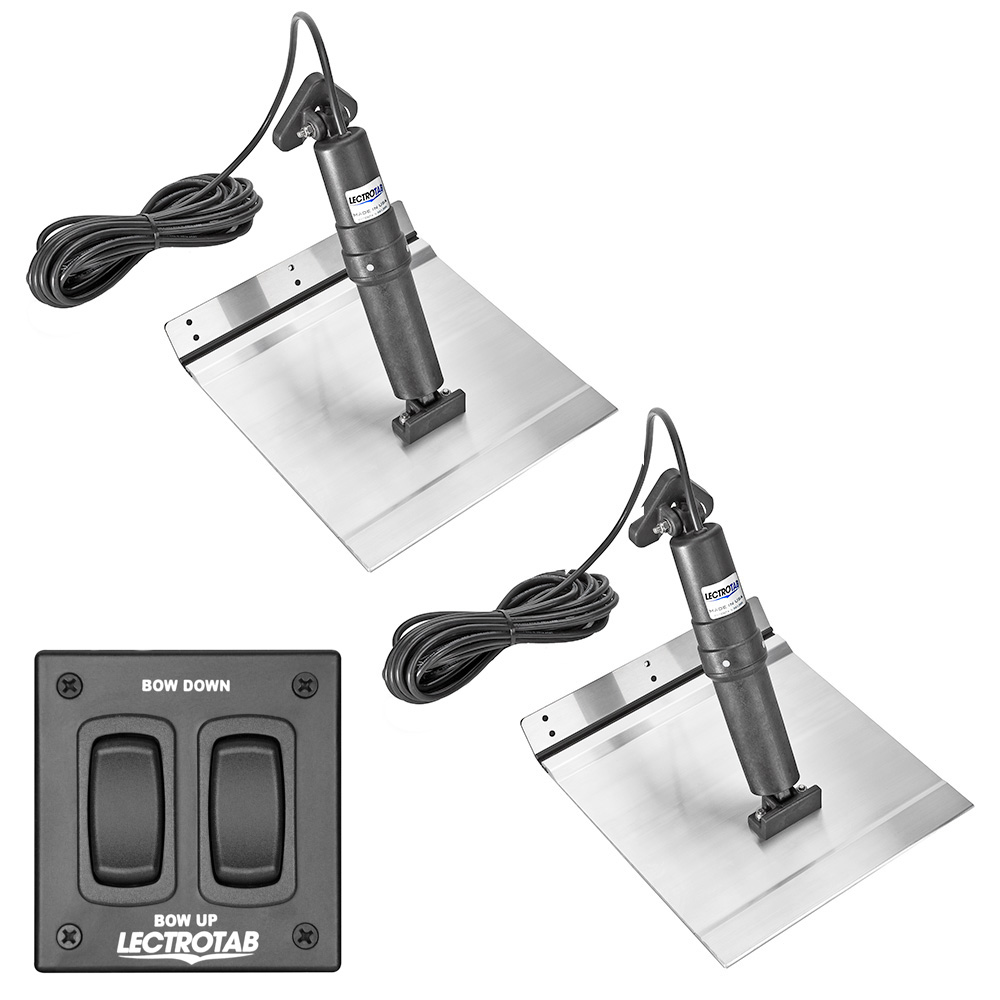

Lectrotab XKAF12X24A 12x24 Aluminum Alloy Trim Tab Kit with Rocker Switch

The Lectrotab XKAF12X24A is a complete trim tab system featuring 12" x 24" aluminum alloy tabs specifically designed for aluminum hulled boats, though suitable for all boat types. This kit combines marine-grade 6005-T5 aluminum alloy tabs with precision-engineered electric actuators and a flat rocker switch for complete trim control.

Advanced Actuator Design:

The electric actuators feature a non-hydraulic, maintenance-free design housed in permanently sealed non-metallic casings. With no hydraulic fluid to leak or maintain, these actuators deliver quiet operation while pushing up to 1,000 lbs of force. The internal brake system prevents unwanted tab movement while underway or backing down, and an internal pressure equalization system ensures reliable performance. Each actuator includes a 23-foot cable and mounts via standard or low profile transom brackets with no components required inside the boat.

Durable Tab Construction:

Each aluminum alloy tab is sealed with corrosion-resistant epoxy coating and features an extremely strong polypropylene hinge tested to over 300,000 cycles at 90° bends without failure. The tabs offer equivalent strength to 10-gauge stainless steel while remaining lightweight. The upper ram seal location is protected from damage caused by fouled rams or barnacle growth.

Key Features:

• Marine-grade 6005-T5 aluminum alloy tabs with corrosion-resistant epoxy coating
• "No-break" polypropylene hinge rated for 300,000+ cycles
• Maintenance-free electric actuators with no hydraulic fluid
• Internal brake system prevents unwanted tab movement
• Quiet operation with 1,000 lbs push force capacity
• Non-metallic external structure that won't corrode or deteriorate
• Improved flat rocker switch with enhanced sealing and recessed design
• Instant-stop circuit prevents actuator over-run
• Internal pressure equalization system

Technical Specifications:

• Trim Tab Size: 12" x 24" (30 x 61 cm)
• Recommended Boat Length: 28' to 48' (8.5 to 14.5 m)
• Tab Material: Marine-grade 6005-T5 aluminum alloy
• Actuator Voltage: 12V DC
• Actuator Stroke Length: 2.25" (57 mm)
• Actuator Cable Length: 23' (7 m)
• Actuator Vertical Height: 11.875" (302 mm)
• Rocker Switch Dimensions: 3.125" x 3.25" (79.4 x 82.5 mm)
• Rocker Switch Cutout: 2.25" x 2" (57.5 x 50 mm)
• Rocker Switch Voltage: 12V or 24V

Kit Includes:

• Two (2) aluminum alloy trim tabs - 12" x 24"
• Two (2) electric actuators with 23' cables
• One (1) flat rocker switch
• Instruction manual

This complete kit provides everything needed for professional trim tab installation on boats from 28 to 48 feet in length.
