Lectrotab XKAF12X9 Stainless Steel Trim Tab Kit 12x9 with Rocker Switch

The Lectrotab XKAF12X9 is a complete stainless steel trim tab system designed for boats 18 to 29 feet in length. This non-hydraulic, maintenance-free kit features precision-engineered electric actuators and corrosion-resistant 12-gauge 304 stainless steel tabs with a continuous rolled and pinned hinge design that eliminates the need for welding.

Key Features:

• 12" x 9" stainless steel trim tabs with rolled and pinned hinge for superior strength
• Electric actuators with 2.25" stroke length and 1000 lbs push force
• Non-metallic permanently sealed housing prevents corrosion
• Internal brake system prevents unwanted tab movement when underway
• Upper ram seal protected from fouling and barnacle damage
• Internal pressure equalization system for reliable operation
• Quiet, smooth operation with no hydraulic oil to leak
• Flat rocker switch with improved water sealing and instant-stop circuit
• Self-contained design requires no components inside the boat

Technical Specifications:

• Tab Dimensions: 12" x 9" (30 x 23 cm)
• Tab Material: 12-gauge 304 stainless steel
• Suitable for boats: 18' to 29' (5.5 to 8.5 M)
• Actuator voltage: 12V DC
• Actuator stroke: 2.25" (57 mm)
• Actuator cable length: 23' (7 M)
• Actuator vertical height: 11.875" (302 mm)
• Switch dimensions: 3.125" x 3.25" (79.4 x 82.5 mm)
• Switch cutout: 2.25" x 2" (57.5 x 50 mm)
• Switch voltage: 12V or 24V

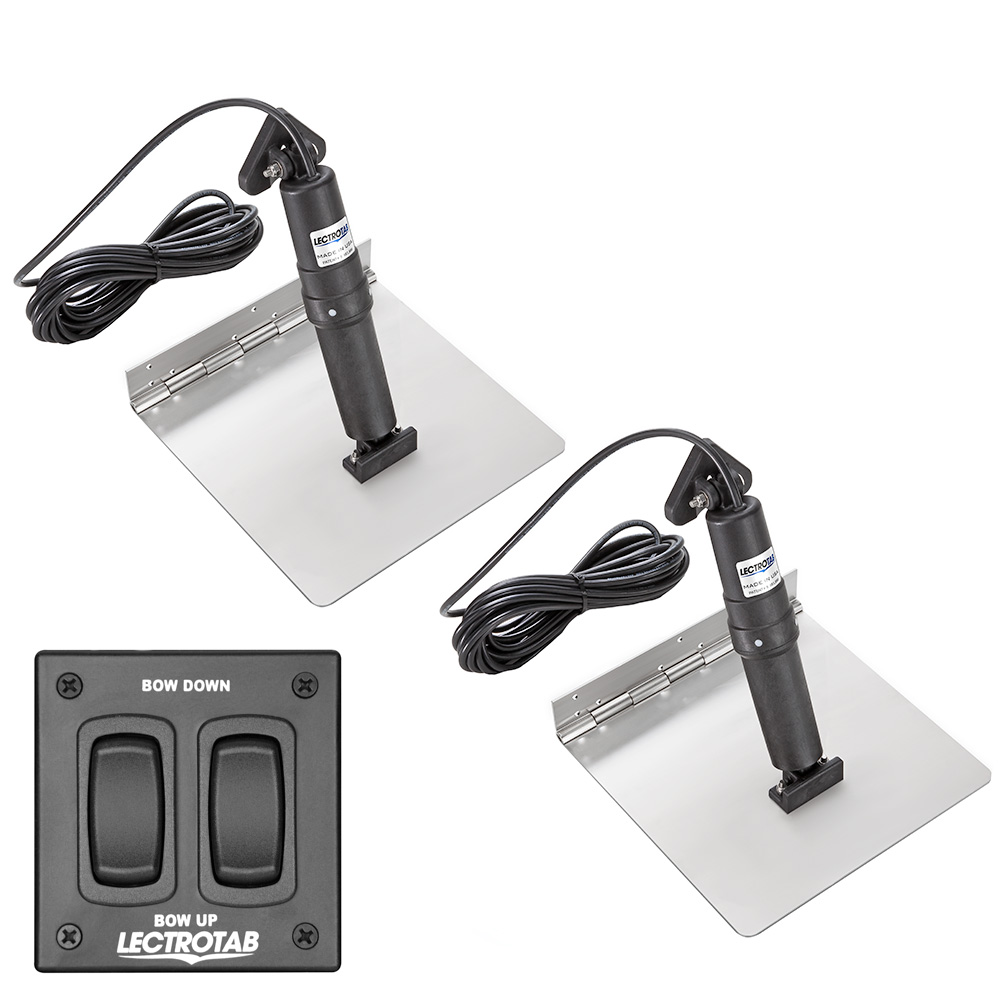

Kit Includes:

• Two (2) 12" x 9" stainless steel trim tabs
• Two (2) electric actuators with 23' cables
• One (1) flat rocker switch
• Instruction manual

This complete trim tab system provides precise control for improved boat handling, fuel efficiency, and ride comfort in various sea conditions.
