Lectrotab XKAF9X12A 9x12 Aluminum Alloy Trim Tab Kit with Rocker Switch

The Lectrotab XKAF9X12A is a complete aluminum alloy trim tab system designed for boats 16' to 25' in length. This kit features 9" x 12" marine-grade aluminum tabs specifically engineered for aluminum-hulled vessels while remaining an economical choice for all boat types. Each tab is sealed with a corrosion-resistant epoxy coating and utilizes an ultra-durable "no-break" polypropylene hinge tested to over 300,000 cycles at 90° bends without failure.

The precision-engineered electric actuators deliver quiet, maintenance-free operation without hydraulics—meaning no oil leaks or internal pumps to service. Each actuator is housed in a non-metallic, permanently sealed enclosure and produces up to 1,000 lbs of push force. The system features an internal brake mechanism that prevents unwanted tab movement during operation or when backing down, plus an internal pressure equalization system for reliable performance.

Key Features:

• Marine-grade 6005-T5 aluminum alloy tabs with corrosion-resistant epoxy coating
• Strength equivalent to 10-gauge stainless steel construction
• "No-break" polypropylene hinges with 300,000+ cycle durability rating
• 12V electric actuators with 2.25" stroke length and 23' cables
• Non-metallic actuator housing that won't corrode or UV-deteriorate
• Protected upper ram seal location resistant to fouling and barnacle damage
• Internal brake system prevents unwanted tab drift under way
• Whisper-quiet operation compared to hydraulic systems
• Improved flat rocker switch with enhanced water sealing and recessed design
• "Instant stop" circuit prevents actuator over-run when released
• No interior components required—fully external installation

Technical Specifications:

• Trim Tab Dimensions: 9" x 12" (23 x 30 cm)
• Recommended Boat Length: 16' to 25' (5 to 7.5 m)
• Tab Material: Marine-grade 6005-T5 aluminum alloy
• Actuator Voltage: 12V DC
• Actuator Stroke: 2.25" (57 mm)
• Actuator Cable Length: 23 feet (7 m)
• Actuator Vertical Height: 11.875" (302 mm)
• Maximum Push Force: 1,000 lbs per actuator
• Rocker Switch Dimensions: 3.125" x 3.25" (79.4 x 82.5 mm)
• Switch Cutout Required: 2.25" x 2" (57.5 x 50 mm)
• Switch Operating Voltage: 12V or 24V compatible

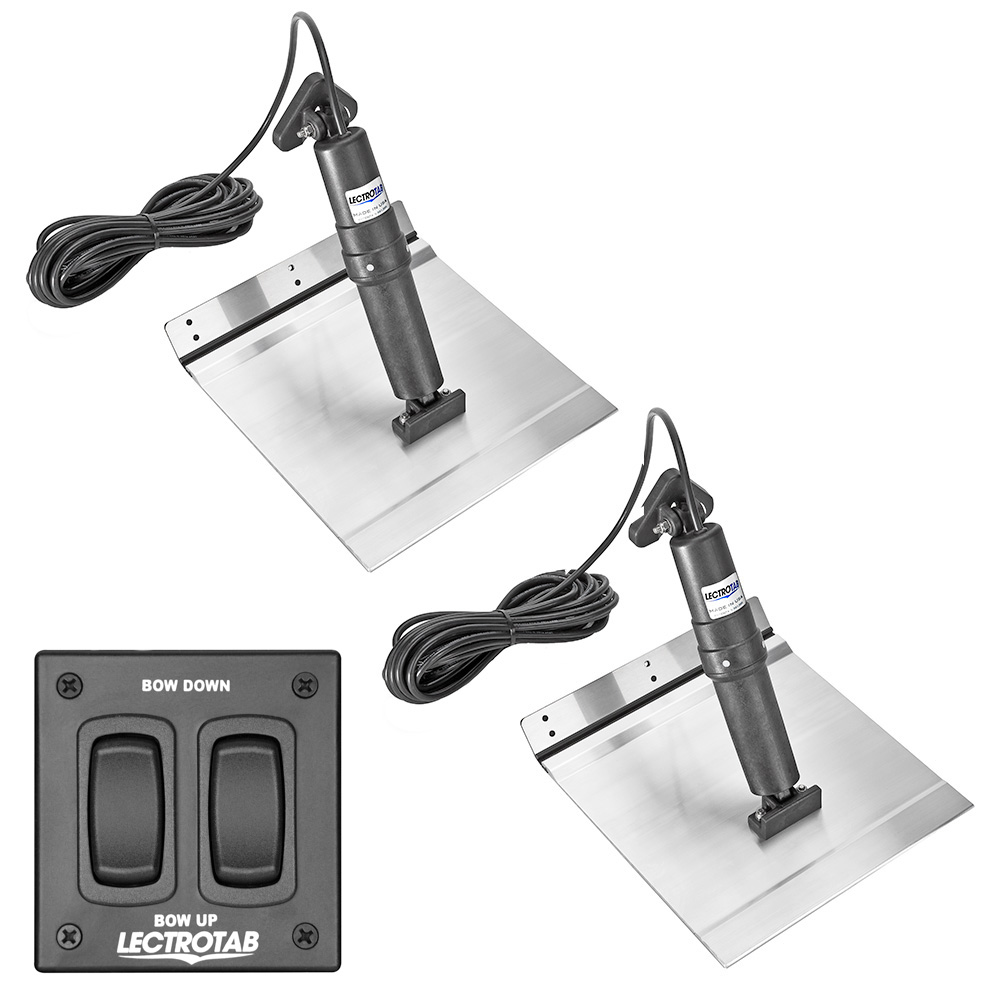

Complete Kit Includes:

• Two (2) 9" x 12" aluminum alloy trim tabs with hinges
• Two (2) electric actuators with 23-foot cables
• One (1) flat rocker control switch
• Installation manual and mounting hardware

This complete trim tab system provides superior boat control, improved fuel efficiency, and enhanced ride comfort without the maintenance headaches of hydraulic systems. Perfect for aluminum fishing boats, bay boats, and center consoles.
