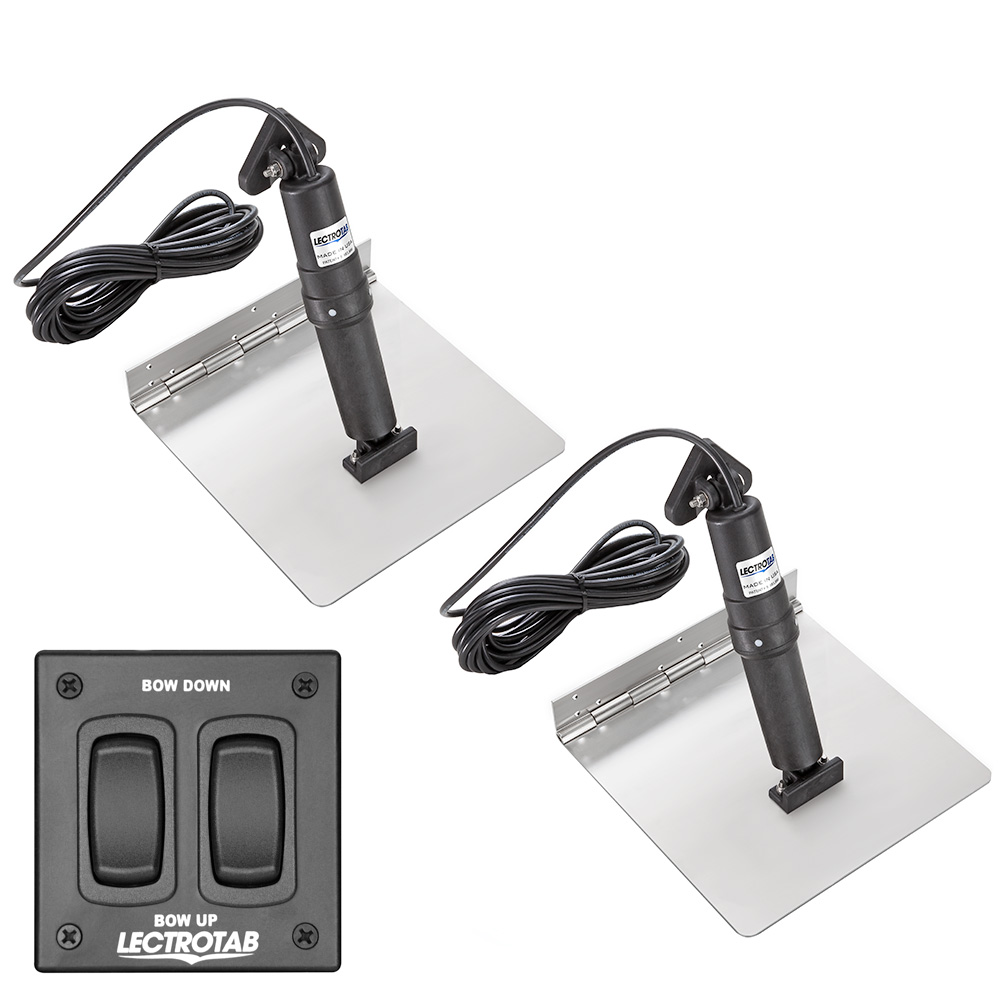

Lectrotab XKAF9X18 XKA Stainless Steel Trim Tab Kit with Rocker Switch 9x18

The Lectrotab XKA Stainless Steel Trim Tab Kit delivers professional-grade boat control with a maintenance-free electric actuator system. Designed for boats 21 to 30 feet, this complete kit includes two 9" x 18" stainless steel trim tabs, dual electric actuators, and a flat rocker control switch.

Superior Stainless Steel Construction:

Fabricated from 12-gauge 304 stainless steel, each trim tab features a continuous rolled and pinned hinge design that eliminates welded joints for exceptional strength and durability. This engineering approach provides superior resistance to the stresses of marine operation while maintaining long-term reliability.

Advanced Electric Actuator System:

Unlike hydraulic systems, Lectrotab's electric actuators are completely oil-free and maintenance-free. The precision-engineered actuators are housed in sealed non-metallic casings that cannot corrode, with all components mounted externally on the transom—no through-hull installations required. Each actuator delivers 1,000 lbs of push force with a 2.25" stroke length and features an internal brake system that prevents unwanted tab movement when underway or in reverse.

Key Features:

• Continuous rolled and pinned hinge eliminates welding for added strength
• Upper ram seal protected from damage by fouling or barnacle growth
• Internal pressure equalization system ensures consistent performance
• Internal brake prevents tab drift during operation
• Whisper-quiet operation
• Non-metallic actuator housing resists corrosion and UV degradation
• Improved flat rocker switch with enhanced water sealing and recessed design
• Instant-stop circuit prevents actuator over-run when released

Technical Specifications:

• Trim Tab Dimensions: 9" x 18" (23 x 46 cm) per tab
• Recommended Boat Length: 21' to 30' (6.5 to 9 m)
• Tab Material: 12-gauge 304 stainless steel
• Actuator Voltage: 12V DC
• Actuator Stroke: 2.25" (57 mm)
• Actuator Cable Length: 23' (7 m)
• Actuator Vertical Height: 11.875" (302 mm)
• Rocker Switch Dimensions: 3.125" x 3.25" (79.4 x 82.5 mm)
• Switch Cutout Required: 2.25" x 2" (57.5 x 50 mm)
• Switch Voltage: 12V or 24V compatible

Kit Includes:

• Two (2) stainless steel trim tabs (9" x 18")
• Two (2) electric actuators with 23-foot cables
• One (1) flat rocker control switch
• Installation manual
