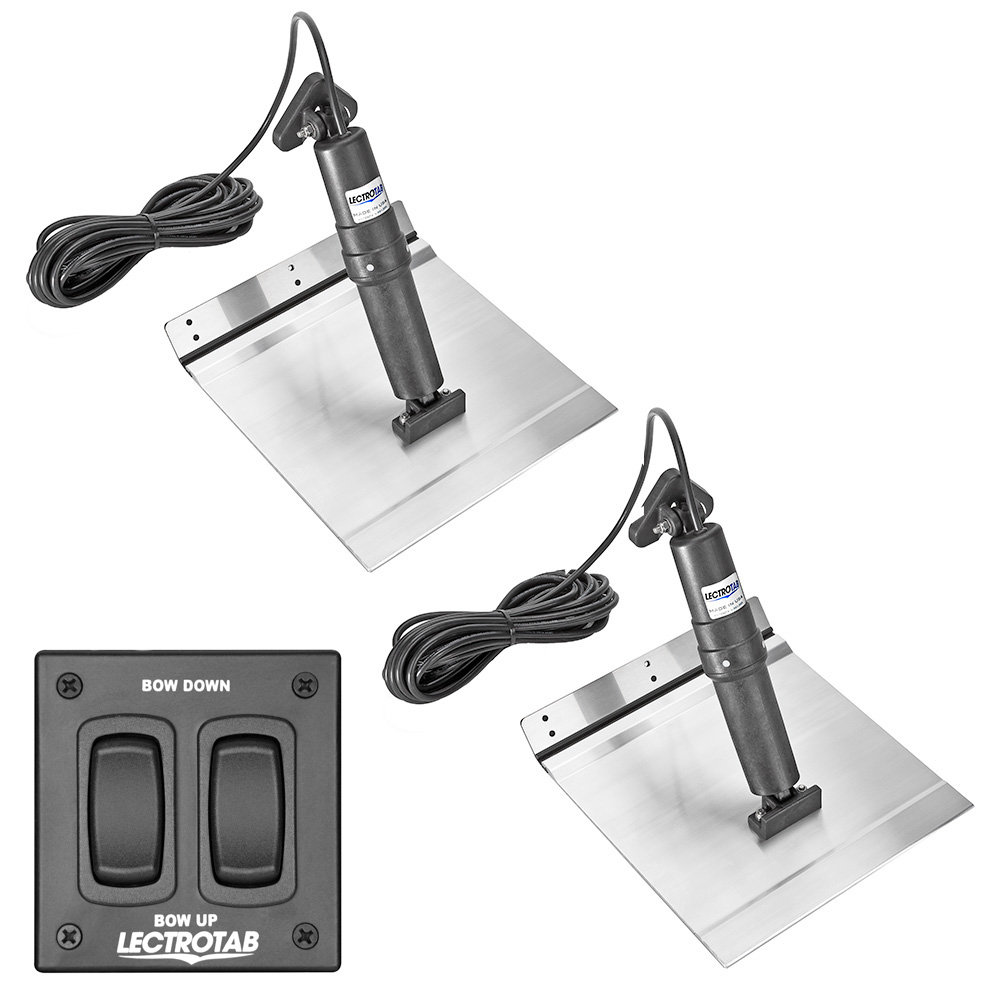

The Lectrotab XKAF9X18A is a complete electric trim tab system specifically engineered for aluminum-hulled boats, featuring 9" x 18" marine-grade aluminum alloy tabs with non-hydraulic actuators and a flat rocker switch control. This maintenance-free system delivers precision boat control for vessels 21' to 30' in length.
Advanced Aluminum Construction:
These trim tabs utilize marine-grade 6005-T5 aluminum alloy sealed with corrosion-resistant epoxy coating, providing strength equivalent to 10-gauge stainless steel at a fraction of the weight. The extremely durable "no-break" polypropylene hinge has been cycle-tested over 300,000 times to a 90° bend without failure, ensuring long-term reliability in demanding marine environments.
Electric Actuator System:
Unlike hydraulic trim tabs, this system features precision-engineered electric actuators with 2.25" stroke length, eliminating the risk of hydraulic fluid leaks. Each actuator is fully load-tested to push 1,000 lbs of force and incorporates an internal brake system that prevents unwanted tab movement when underway or backing down. The non-metallic permanently sealed housing contains all components externally—no installation required inside the boat. An internal pressure equalization system and protected upper ram seal location prevent damage from fouling or barnacle growth.
Improved Flat Rocker Switch:
The included rocker switch features enhanced sealing to prevent water entry and a recessed design to prevent accidental breakage. The switch provides an "instant stop" circuit when released, eliminating actuator over-run for precise tab positioning and quiet operation.
Technical Specifications:
- Trim Tab Dimensions: 9" x 18" (23 x 46 cm)
- Recommended Boat Length: 21' to 30' (6.5 to 9 M)
- Tab Material: Marine Grade 6005-T5 Aluminum Alloy
- Actuator Voltage: 12V DC
- Actuator Stroke: 2.25" (57 mm)
- Actuator Cable Length: 23' (7 M)
- Actuator Vertical Height: 11.875" (302 mm)
- Switch Dimensions: 3.125" x 3.25" (79.4 x 82.5 mm)
- Switch Cutout: 2.25" x 2" (57.5 x 50 mm)
- Switch Operating Voltage: 12V or 24V
Complete Kit Includes:
- Two (2) aluminum alloy trim tabs with polypropylene hinges
- Two (2) electric actuators with 23' cables
- One (1) flat rocker switch with mounting hardware
- Instruction manual
This self-contained, corrosion-free system provides maximum lift force, accurate tab positioning, and reliable performance without the maintenance requirements of hydraulic systems.
