Lectrotab XKAF9X9A 9x9 Aluminum Alloy Trim Tab Kit with Rocker Switch

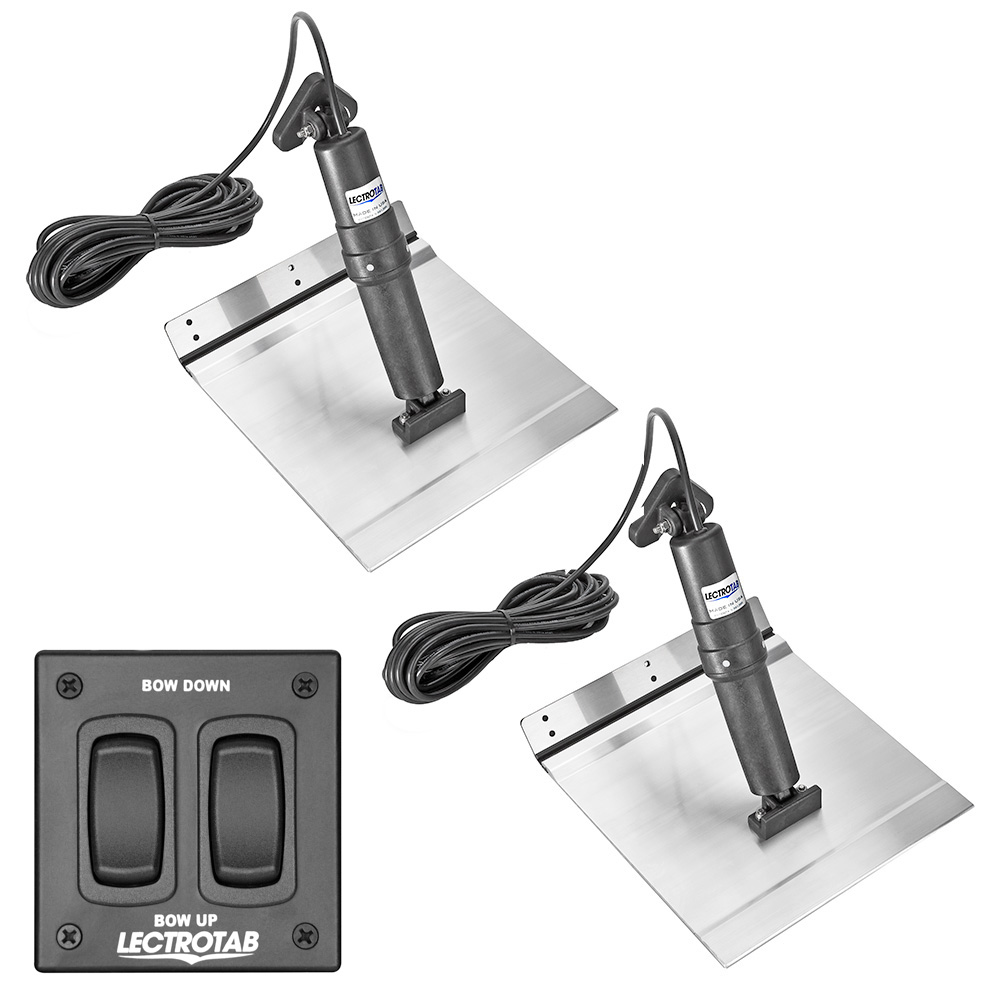

The Lectrotab XKAF9X9A is a complete electric trim tab system designed specifically for aluminum hulled boats, though it provides an economical solution for all boat types. This kit includes two 9" x 9" aluminum alloy trim tabs with precision-engineered electric actuators and a flat rocker control switch, ideal for boats 14 to 19 feet in length.

Each trim tab is fabricated from marine-grade 6005-T5 aluminum alloy and sealed with a corrosion-resistant epoxy coating for maximum durability. The tabs feature an extremely strong "no-break" polypropylene hinge that has been tested over 300,000 cycles to a 90-degree bend without failure, providing equivalent strength to 10-gauge stainless steel.

Advanced Actuator Design:

• Non-hydraulic, maintenance-free operation with no oil to leak
• Non-metallic permanently sealed housing resists corrosion
• Internal brake system prevents unwanted tab movement when underway or backing down
• Upper ram seal location protected from fouling and barnacle damage
• Internal pressure equalization system for reliable performance
• Quiet operation with very accurate tab positioning
• Load tested to push 1,000 lbs of force
• 2.25" stroke length with 12V DC operation
• 23-foot actuator cables for flexible installation

Improved Rocker Switch:

The flat rocker switch features enhanced sealing to prevent water entry and a recessed rocker design to prevent breaking. The switch provides an "instant stop" circuit when released, preventing actuator over-run for precise control. Compatible with both 12V and 24V systems.

Technical Specifications:

• Trim Tab Size: 9" x 9" (23 x 23 cm)
• Recommended Boat Length: 14' to 19' (4 to 6 m)
• Tab Material: Marine-grade 6005-T5 Aluminum Alloy
• Actuator Stroke: 2.25" (57 mm)
• Actuator Vertical Height: 11.875" (302 mm)
• Actuator Cable Length: 23' (7 m)
• Actuator Voltage: 12V DC
• Switch Dimensions: 3.125" x 3.25" (79.4 x 82.5 mm)
• Switch Cutout: 2.25" x 2" (57.5 x 50 mm)
• Switch Voltage: 12V or 24V

Complete Kit Includes:

• Two (2) aluminum alloy trim tabs (9" x 9")
• Two (2) electric actuators with 23' cables
• One (1) flat rocker switch
• Instruction manual

This fully self-contained system requires no components to be installed inside the boat, making installation straightforward and eliminating the maintenance concerns associated with hydraulic trim tab systems.
