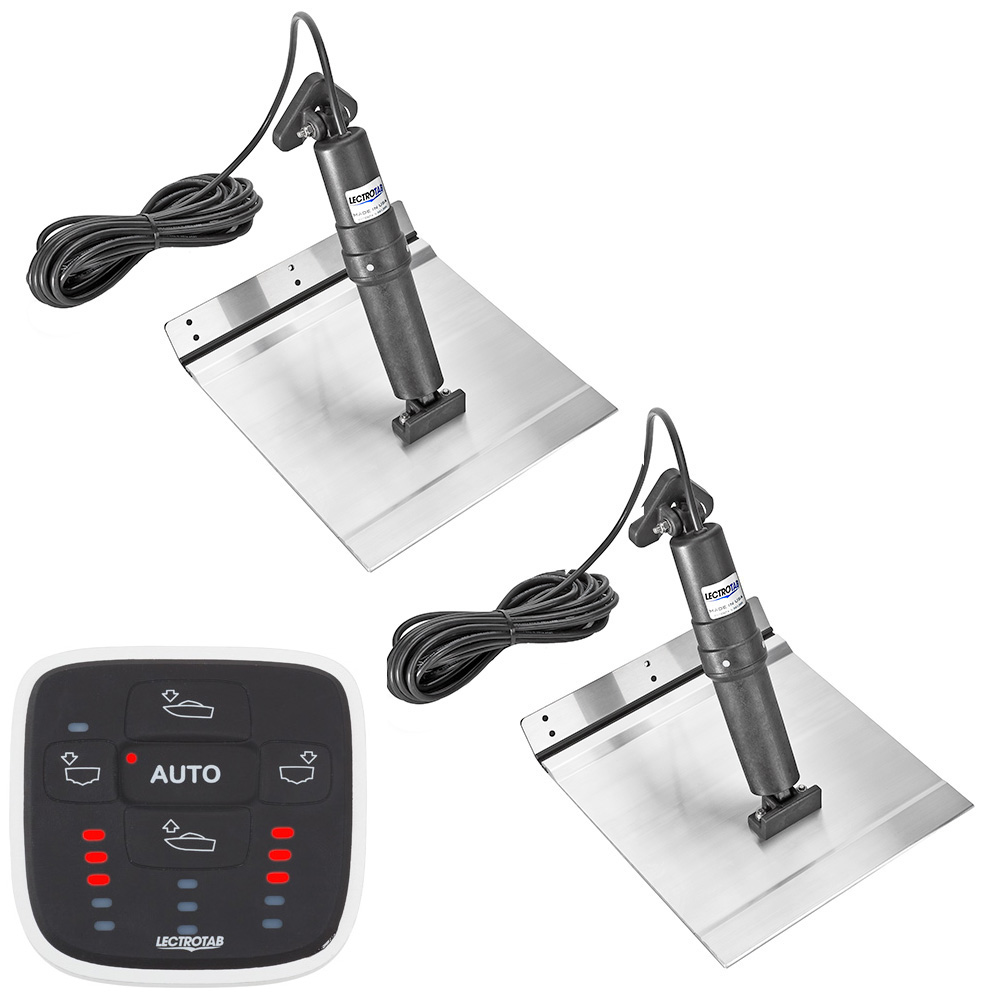

Lectrotab XKASAL12X12A 12x12 Aluminum Alloy Trim Tab Kit with ALC-1 Automatic Leveling Control

The Lectrotab XKA Aluminum Alloy Trim Tab Kit with Automatic Leveling Control is a complete, maintenance-free trim tab system designed specifically for aluminum hulled boats, though suitable for all boat types. This 12" x 12" kit features marine-grade 6005-T5 aluminum alloy tabs with an extremely strong "no-break" polypropylene hinge and corrosion-resistant epoxy coating for long-lasting durability in harsh marine environments.

The precision-engineered electric actuators deliver quiet operation with maximum lift force, packaged in non-metallic, permanently sealed housings that eliminate the risk of oil leaks common with hydraulic systems. All components mount externally on the transom—no interior installation required. The upper ram seal location is protected from damage caused by fouled rams or barnacle growth, while the internal pressure equalization system and brake prevent unwanted tab movement when underway or backing down.

Key Features:

• Corrosion-resistant epoxy coating with strength equivalent to 10-gauge stainless steel
• "No-break" polypropylene hinge tested over 300,000 cycles to 90° without failure
• Non-hydraulic design eliminates oil leaks and maintenance requirements
• Actuators fully load tested to push 1,000 lbs of force
• Non-metallic external structure that won't corrode or deteriorate from sun or water exposure
• Internal brake system prevents unwanted tab movement
• Automatic Leveling Control (ALC-1) maintains level boat attitude and corrects roll and pitch automatically
• Improves fuel economy and enhances overall boating comfort

Technical Specifications:

• Trim Tab Size: 12" x 12" (30 x 30 cm)
• Recommended Boat Length: 18' to 32' (5.5 to 9.5 m)
• Tab Material: Marine-grade 6005-T5 Aluminum Alloy
• Actuator Voltage: 12V DC
• Actuator Stroke Length: 2.25" (57 mm)
• Actuator Cable Length: 23' (7 m)
• Actuator Vertical Height: 11.875" (302 mm)
• Control Dimensions: 3.15" x 3.07" (80 x 77 mm)
• Control Mounting Cutout: 2" (50 mm)
• Control Operating Voltage: 12V or 24V

Kit Includes:

• One (1) ALC-1 Automatic Leveling Control
• Two (2) Aluminum Alloy trim tabs
• Two (2) Electric actuators with 23' cables
• Instruction manual
