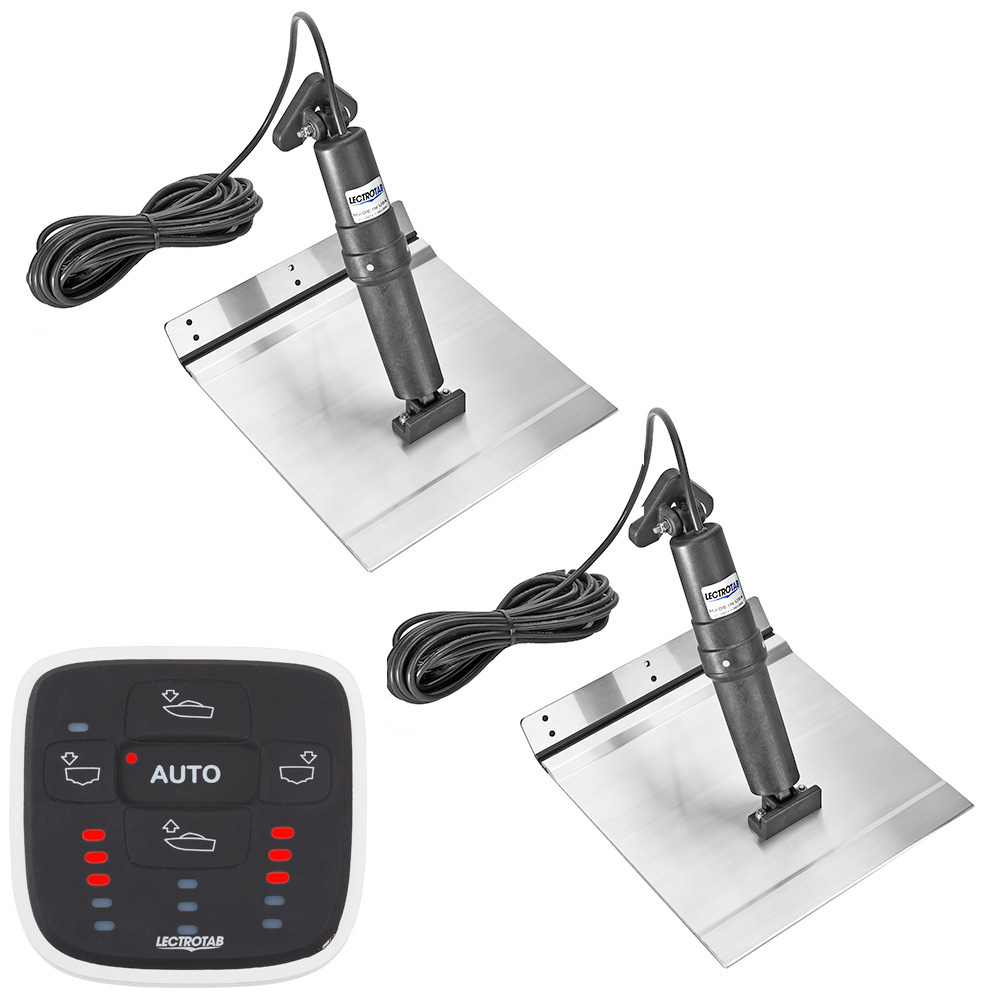

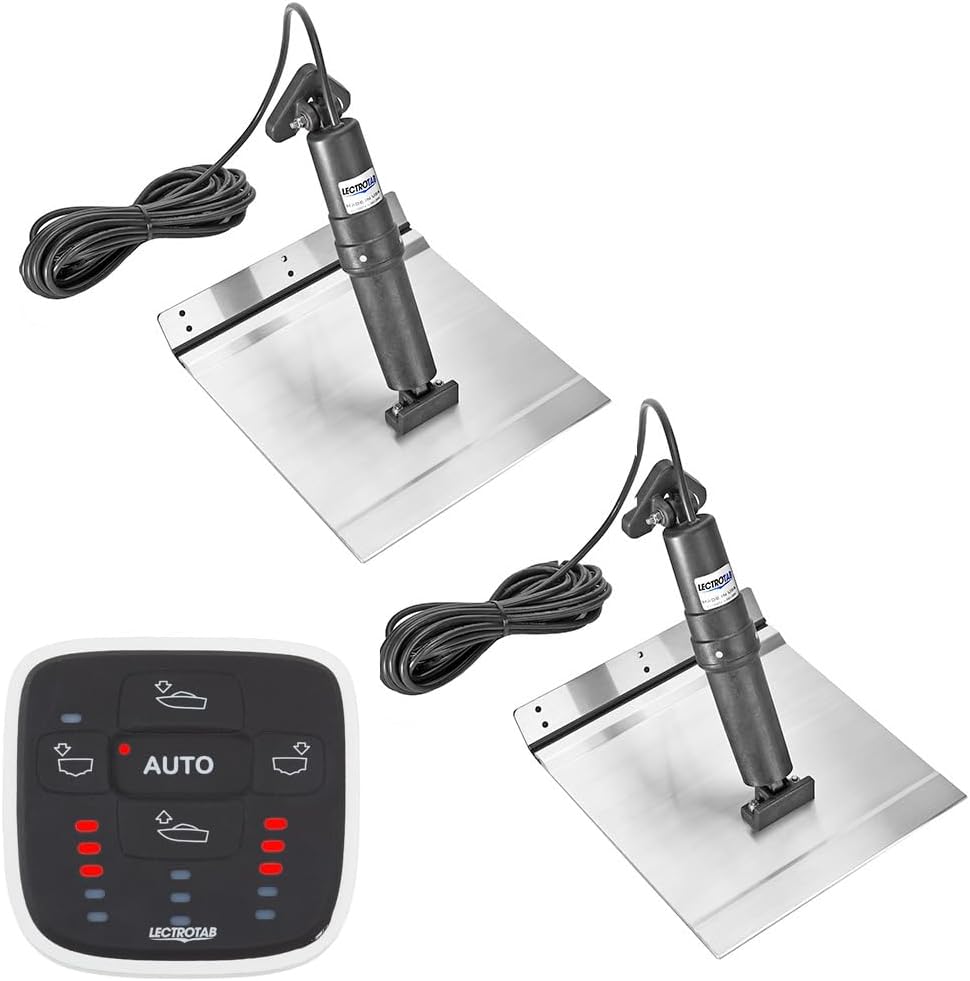

The Lectrotab XKA Aluminum Alloy Trim Tab Kit with Automatic Leveling Control delivers precision boat control for aluminum and fiberglass hulled vessels from 20 to 40 feet. This complete system combines corrosion-resistant aluminum tabs with maintenance-free electric actuators and intelligent automatic leveling technology for superior performance and comfort on the water.
Automatic Leveling Control (ALC-1):
The included ALC-1 system automatically adjusts your trim tabs to maintain optimal boat attitude in changing conditions. It continuously corrects side-to-side roll and fore-to-aft pitch, improving fuel economy, enhancing comfort, and reducing fatigue on long runs. The system operates seamlessly in the background, requiring no manual input once configured.
Durable Aluminum Construction:
Each 12" x 18" trim tab is fabricated from marine-grade 6005-T5 aluminum alloy with strength equivalent to 10-gauge stainless steel. All tabs are sealed with a corrosion-resistant epoxy coating for long-lasting protection in harsh marine environments. The innovative "no-break" polypropylene hinge has been tested to over 300,000 cycles at 90-degree bends without failure, ensuring reliable operation season after season.
Maintenance-Free Actuators:
Unlike hydraulic trim tab systems, these electric actuators contain no oil that can leak or require servicing. The non-metallic, permanently sealed housing is completely corrosion-free and requires no internal boat mounting. Each actuator delivers 1,000 lbs of push force with a 2.25" stroke length and features an internal brake system that prevents unwanted tab movement when underway or backing down. The upper ram seal location is protected from damage caused by fouled rams or barnacle growth.
Key Features:
- Marine-grade 6005-T5 aluminum alloy tabs with corrosion-resistant epoxy coating
- "No-break" polypropylene hinge rated for 300,000+ cycles
- Automatic leveling control corrects roll and pitch automatically
- Maintenance-free electric actuators with no hydraulic oil
- 1,000 lbs push force per actuator
- Internal brake system prevents unwanted tab movement
- Quiet operation with precise tab positioning
- Non-metallic external structure resists corrosion and UV degradation
- Internal pressure equalization system
- No internal boat components required for installation
- 23-foot actuator cables for flexible mounting options
Technical Specifications:
- Trim Tab Size: 12" x 18" (30 x 46 cm)
- Recommended Boat Length: 20' to 40' (6 to 12 m)
- Tab Material: Marine-grade 6005-T5 aluminum alloy
- Actuator Voltage: 12V DC
- Actuator Stroke: 2.25" (57 mm)
- Actuator Cable Length: 23' (7 m)
- Actuator Vertical Height: 11.875" (302 mm)
- Actuator Push Force: 1,000 lbs
- Control Panel Dimensions: 3.15" W x 3.07" H (80 x 77 mm)
- Control Panel Cutout: 2" (50 mm)
- Control Operating Voltage: 12V or 24V DC
Kit Includes:
- Two (2) aluminum alloy trim tabs - 12" x 18"
- Two (2) electric actuators with 23' cables
- One (1) ALC-1 Automatic Leveling Control panel
- Installation manual
This complete kit provides everything needed for professional-grade trim tab installation on boats from 20 to 40 feet in length.
