Lectrotab XKASAL12X24A XKA 12x24 Aluminum Alloy Trim Tab Kit with ALC-1 Automatic Leveling Control

The Lectrotab XKA Aluminum Alloy Trim Tab Kit with Automatic Leveling Control is a complete trim tab system designed for aluminum hulled boats and an economical option for all boat types. This 12" x 24" kit combines durable aluminum construction with advanced automatic leveling technology for superior boat control and comfort.

Key Features:

• Aluminum alloy tabs sealed with corrosion-resistant epoxy coating for long-lasting durability
• Extremely strong "no-break" polypropylene hinge tested over 300,000 cycles to 90° without failure
• Automatic Leveling Control (ALC-1) automatically adjusts tabs to maintain level boat and correct roll/pitch
• Non-hydraulic, maintenance-free design with no oil to leak
• Quiet precision-engineered actuators with internal brake system to prevent unwanted tab movement
• Non-metallic, permanently sealed housing that cannot corrode or deteriorate
• Internal pressure equalization system with protected upper ram seal location
• Fully load tested actuators pushing 1,000 lbs of force
• All components can be mounted externally—no interior installation required

Technical Specifications:

• Trim Tab Dimensions: 12" x 24" (30 x 61 cm)
• Recommended Boat Length: 28' to 48' (8.5 to 14.5 M)
• Tab Material: Marine grade 6005-T5 Aluminum Alloy with strength equivalent to 10-gauge stainless steel
• Actuator Voltage: 12V DC
• Actuator Stroke Length: 2.25" (57 mm)
• Actuator Cable Length: 23' (7 M)
• Actuator Vertical Height: 11.875" (302 mm)
• Control Dimensions: 3.15" x 3.07" (80 x 77 mm)
• Control Mounting Cutout: 2" (50 mm)
• Control Operating Voltage: 12V or 24V

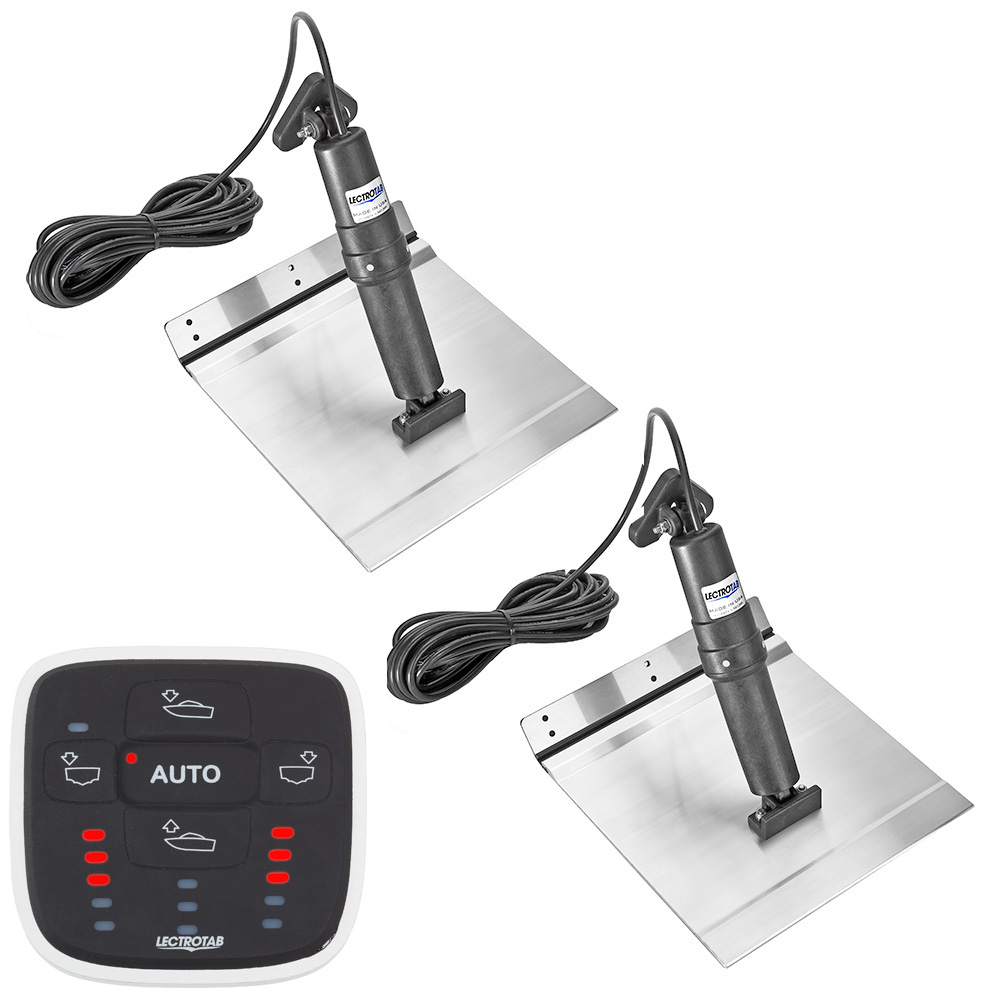

Kit Includes:

• One (1) Automatic Leveling Control (ALC-1)
• Two (2) Aluminum alloy trim tabs (12" x 24")
• Two (2) Electric actuators with 23' cables
• Instruction manual

The ALC-1 automatic leveling system enhances your boating experience by continuously correcting roll from side to side and pitch from fore to aft, improving comfort, stability, and fuel economy without manual adjustment.
