The Lectrotab XKA Aluminum Alloy Trim Tab Kit delivers professional-grade boat stabilization with automatic leveling technology. Specifically designed for aluminum-hulled boats but suitable for all vessel types, this complete kit includes 9" x 12" trim tabs with precision electric actuators and the innovative ALC-1 Automatic Leveling Control system.
Automatic Leveling Control:
The ALC-1 system continuously monitors and adjusts your trim tabs to maintain optimal boat attitude without manual input. It automatically corrects side-to-side roll and fore-to-aft pitch, delivering a smoother, more comfortable ride while improving fuel economy. The system works seamlessly in the background, allowing you to focus on navigation and enjoyment.
Advanced Actuator Design:
Unlike hydraulic systems, these electric actuators are completely maintenance-free with no hydraulic fluid to leak or refill. Each actuator is fully load-tested to 1000 lbs of force and features an internal brake system that prevents unwanted tab movement during operation or when backing down. The upper ram seal location is protected from damage caused by fouling or barnacle growth, and an internal pressure equalization system ensures long-term reliability.
Durable Aluminum Construction:
Manufactured from marine-grade 6005-T5 aluminum alloy with strength equivalent to 10-gauge stainless steel, each tab is sealed with corrosion-resistant epoxy coating. The extremely strong polypropylene hinge has been cycle-tested over 300,000 times to 90-degree bends without failure. The non-metallic actuator housing will not corrode and resists deterioration from sun and saltwater exposure.
Key Features:
- Complete kit for boats 16' to 25' in length
- Automatic leveling control maintains optimal boat attitude
- Electric actuators with 2.25" stroke length and quiet operation
- No hydraulic fluid - completely maintenance-free system
- Corrosion-resistant epoxy-coated aluminum tabs
- No-break polypropylene hinge rated for 300,000+ cycles
- Non-metallic external components resist corrosion and UV damage
- Internal brake prevents tab drift under power or in reverse
- 12V DC actuator operation with 12/24V control compatibility
- Simple installation with no interior components required
Technical Specifications:
- Trim Tab Dimensions: 9" x 12" (23 x 30 cm)
- Recommended Boat Length: 16' to 25' (5 to 7.5 m)
- Tab Material: Marine-grade 6005-T5 aluminum alloy
- Actuator Voltage: 12V DC
- Actuator Stroke: 2.25" (57 mm)
- Actuator Cable Length: 23 feet (7 m)
- Actuator Vertical Height: 11.875" (302 mm)
- Actuator Load Capacity: 1000 lbs
- Control Dimensions: 3.15" W x 3.07" H (80 x 77 mm)
- Control Mounting Cutout: 2" diameter (50 mm)
- Control Voltage: 12V or 24V DC

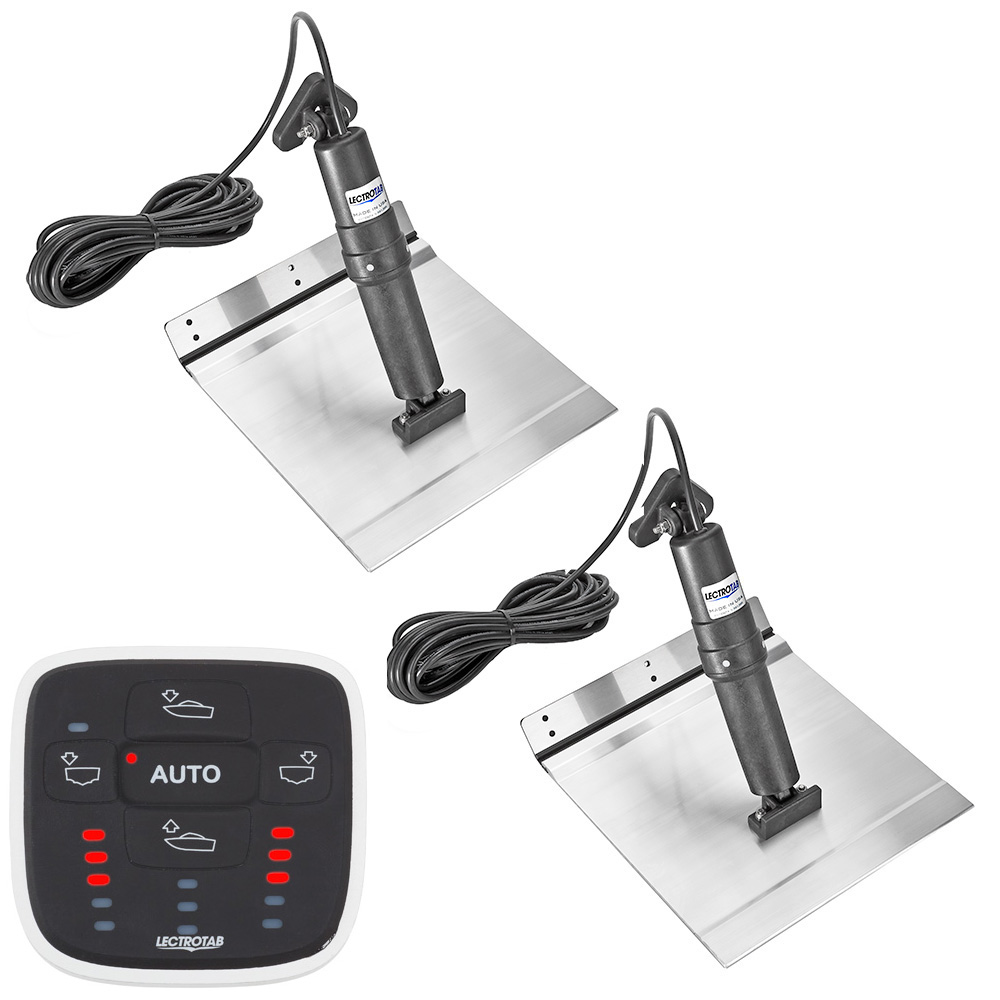

Complete Kit Includes:
- Two (2) aluminum alloy trim tabs (9" x 12")
- Two (2) electric actuators with 23-foot cables
- One (1) ALC-1 Automatic Leveling Control unit
- Installation manual and mounting hardware
