The Lectrotab XKA Aluminum Alloy Trim Tab Kit delivers professional-grade boat control with innovative automatic leveling technology. Designed specifically for aluminum hulled boats but suitable for all vessel types, this complete kit includes everything needed for a maintenance-free trim tab installation.
Aluminum Alloy Construction:
These marine-grade 6005-T5 aluminum alloy tabs offer strength equivalent to 10-gauge stainless steel while being protected by a corrosion-resistant epoxy coating. The proprietary "no-break" polypropylene hinge has been tested over 300,000 cycles to a 90-degree bend without failure, ensuring long-term reliability in harsh marine environments.
Advanced Actuator System:
Each precision-engineered actuator delivers 1000 lbs of push force with whisper-quiet operation. The non-metallic, permanently sealed housing requires zero maintenance and contains no hydraulic oil to leak. An internal brake system prevents unwanted tab movement when underway or backing down, while the internal pressure equalization system protects against depth-related stress. The upper ram seal location is positioned to avoid damage from fouling or barnacle growth.
Automatic Leveling Control (ALC-1):
The included ALC-1 control automatically adjusts your trim tabs to maintain a level boat attitude, correcting both side-to-side roll and fore-to-aft pitch. This hands-free operation enhances comfort, improves fuel economy, and provides a more enjoyable boating experience without constant manual adjustment.
Key Features:
- Marine-grade 6005-T5 aluminum alloy tabs with corrosion-resistant epoxy coating
- Ultra-durable polypropylene hinge tested to 300,000+ cycles
- Maintenance-free electric actuators with 1000 lbs push force
- Non-hydraulic design eliminates oil leaks and fluid maintenance
- Automatic leveling control corrects roll and pitch automatically
- Internal brake system prevents unwanted movement
- Pressure equalization system for depth protection
- Non-metallic external structure won't corrode or UV deteriorate
- No components require interior boat installation
- 2.25" actuator stroke length for precise control
Technical Specifications:
- Trim Tab Dimensions: 9" x 24" (23 x 61 cm)
- Recommended Boat Length: 24' to 37' (7 to 11 M)
- Tab Material: Marine Grade 6005-T5 Aluminum Alloy
- Actuator Voltage: 12V DC
- Actuator Stroke: 2.25" (57 mm)
- Actuator Cable Length: 23' (7 M)
- Actuator Vertical Height: 11.875" (302 mm)
- Control Dimensions: 3.15" x 3.07" (80 x 77 mm)
- Control Cutout: 2" (50 mm) diameter
- Control Operating Voltage: 12V or 24V

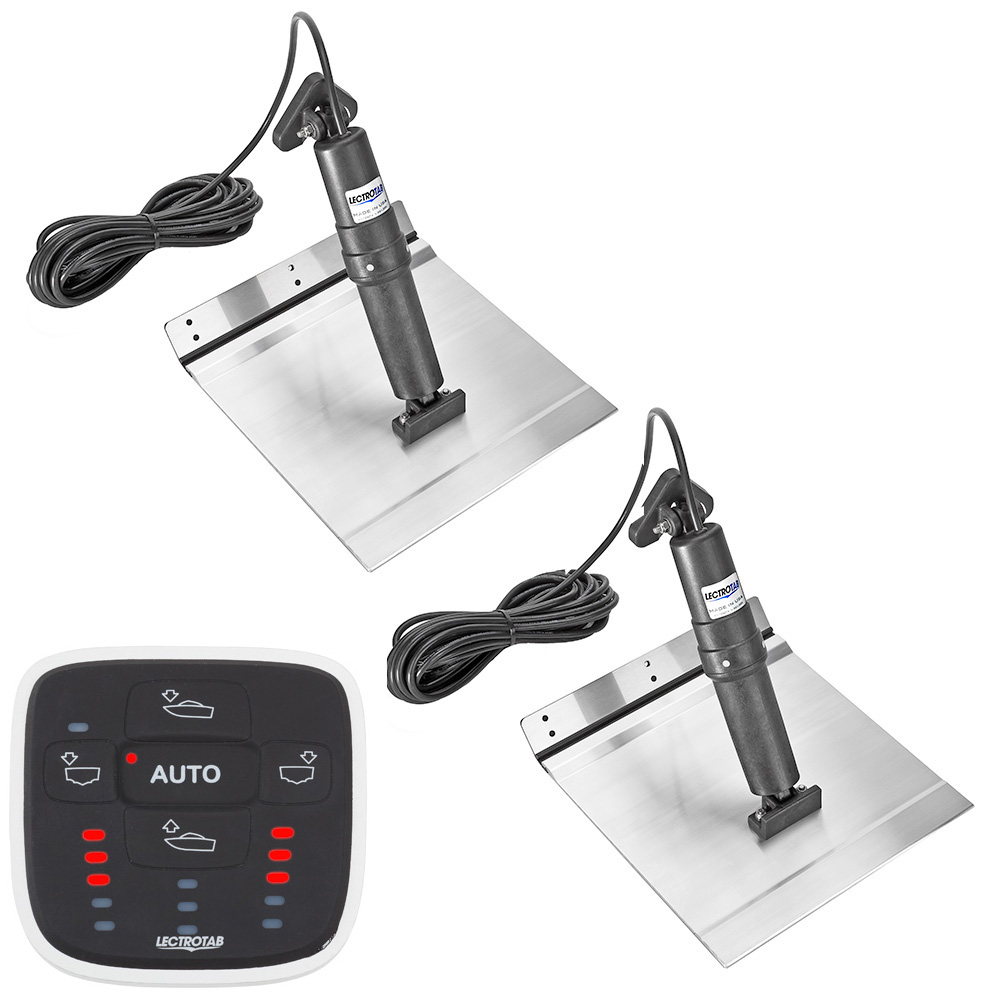

Kit Includes:
- One (1) ALC-1 Automatic Leveling Control
- Two (2) Aluminum Alloy Trim Tabs (9" x 24")
- Two (2) Electric Actuators with 23' Cables
- Complete Instruction Manual
This complete trim tab system is ideal for boats from 24 to 37 feet, providing automatic leveling, improved handling, reduced bow rise, better fuel efficiency, and enhanced comfort in all sea conditions.
