The Lectrotab XKASL12X12 is a premium 12" x 12" stainless steel trim tab system designed for boats 18 to 32 feet in length. This complete kit features Lectrotab's advanced non-hydraulic actuator technology combined with the intuitive SLC-11 one-touch LED control, delivering precise trim adjustment at your fingertips.
Superior Stainless Steel Construction:
Each tab is fabricated from 12-gauge 304 stainless steel with a continuous rolled and pinned hinge design that eliminates welding for unmatched strength and reliability. This robust construction ensures long-lasting performance in demanding marine environments.
Advanced Actuator Technology:
The precision-engineered actuators provide quiet, maintenance-free operation with no hydraulic fluid to leak. Each actuator is fully load tested to 1000 lbs of force and features a non-metallic permanently sealed housing that cannot corrode. The upper ram seal location is protected from fouling and barnacle damage, while an internal brake system prevents unwanted tab movement when underway or backing down. An internal pressure equalization system ensures consistent performance.
Key Features:
- Continuous rolled and pinned hinge provides superior strength without welding
- Non-hydraulic design eliminates oil leaks and reduces maintenance
- Protected upper ram seal cannot be damaged by fouling or barnacle growth
- Internal brake system prevents tab movement when underway
- Internal pressure equalization system for reliable operation
- Quiet operation with precision tab positioning
- Non-metallic external structure resists corrosion and UV deterioration
- Self-contained actuators require no interior boat installation
- SLC-11 one-touch LED control for intuitive operation
Technical Specifications:
- Trim Tab Size: 12" x 12" (30 x 30 cm)
- Recommended Boat Length: 18' to 32' (5.5 to 9.5 m)
- Tab Material: 12-gauge 304 stainless steel
- Actuator Voltage: 12V DC
- Actuator Stroke Length: 2.25" (57 mm)
- Actuator Cable Length: 23' (7 m)
- Actuator Vertical Height: 11.875" (302 mm)
- Maximum Force: 1000 lbs per actuator
- Control Switch Dimensions: 3" x 3" (77 x 77 mm)
- Switch Cutout: 2.25" x 2.5" (57 x 64 mm)
- Switch Operating Voltage: 12V or 24V

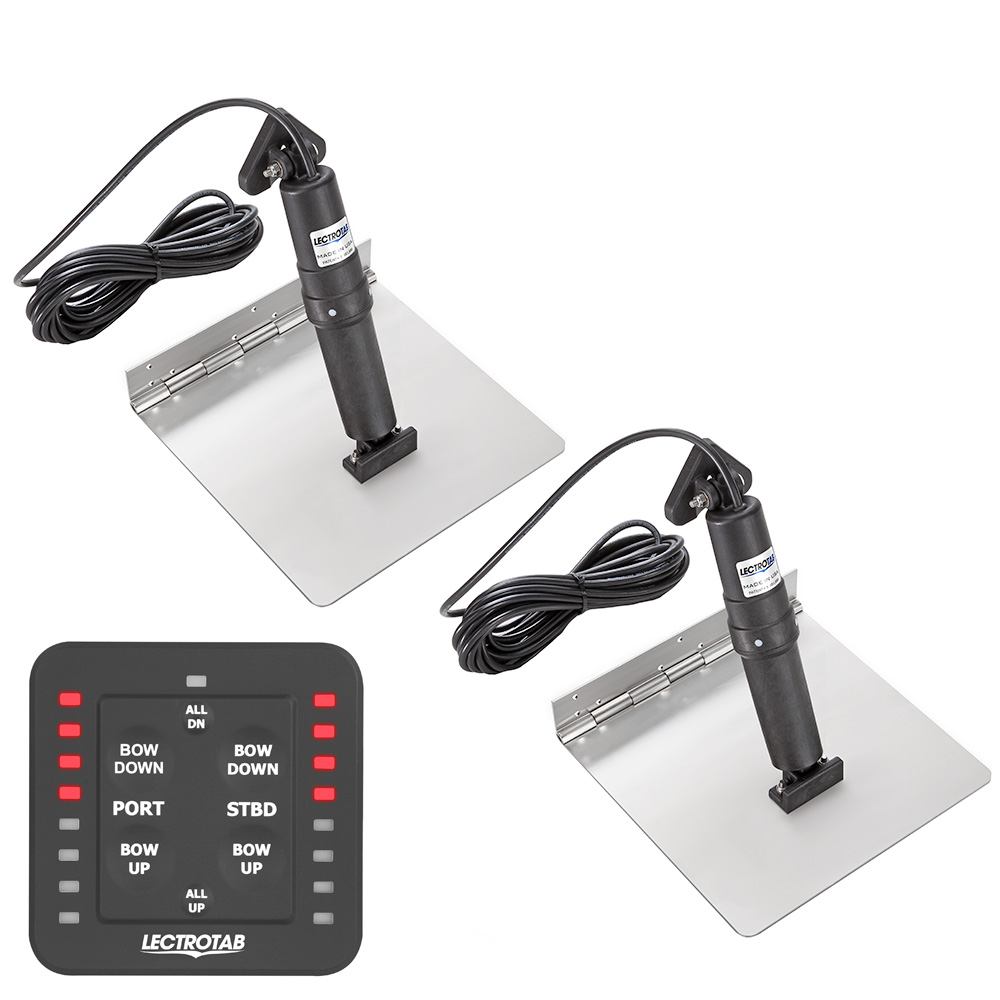

Complete Kit Includes:
- Two (2) 12" x 12" stainless steel trim tabs
- Two (2) actuators with 23' (7 m) cables
- One (1) SLC-11 one-touch LED control
- Installation hardware and instruction manual
This kit provides everything needed for a complete trim tab installation, delivering professional-grade performance with simplified operation and minimal maintenance requirements.
